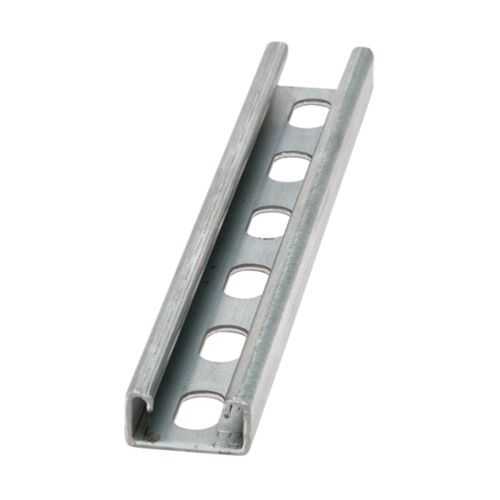

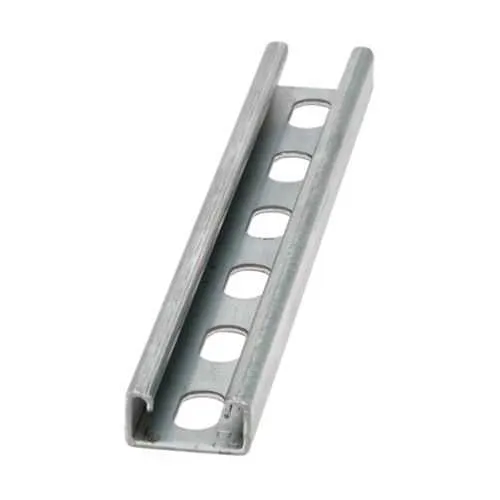

Eaton B52SH-4GLV Strut Channel - 12 Gauge
Part Number: B52SH-4GLV
Quick Summary
The Eaton B52SH-4GLV strut channel supports mechanical and electrical installations in industrial environments. Users often struggle with corrosion, misalignment, and slow installation when using ad hoc rails. Although certifications are not listed, the product uses standard B-Line geometry and a pre-galvanized finish. This combination delivers reliable support, faster install times, and compatibility with KwikSplice accessories to drive total cost reduction. By aligning with common fitments and a proven material spec, this channel supports scalable, maintainable infrastructure for growing facilities, while keeping procurement straightforward for engineering teams.
Product Information
Extended Description
B52SH-4GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 4" L x 1.62" W, Steel, Pre-galvanized, SH, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52SH-4GLV
UPC
782051586282
Product Length/Depth
4 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
0.39666667 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
SH
Finish
Pre-galvanized
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B52SH-4GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 0.81" H x 4" L x 1.62" W profile in 12 gauge steel with a pre-galvanized finish. Business Impact: Provides rigid mounting with corrosion resistance suitable for indoor environments, reducing sag and rework. Application: Ideal for compact equipment racks and small- to mid-size electrical installations where space is tight and reliability matters. Feature: Channel type B52 with SH hole pattern. Business Impact: Enables quick, repeatable fastening using standard hardware and compatible connectors, accelerating installation schedules. Application: Commonly used in control panels and support rails for power distribution systems. Feature: Lightweight 0.3967 lb weight and 4 in length. Business Impact: Lowers shipping and handling costs while enabling modular, scalable layouts. Application: Suitable for multi-point assemblies in data centers or machine rooms. Feature: Finish and material—steel, pre-galvanized. Business Impact: Enhances durability in moderate environments and simplifies maintenance. Application: Fits Eaton’s strut system ecosystem and catalogs for design consistency. Feature: Documentation and ecosystem compatibility—KwikSplice and accessories. Business Impact: Reduces BOM complexity and inventory with widely compatible components. Application: Gives engineers confidence to extend the install with proven accessories and splices.
Get a Quick Quote for a Eaton B52SH-4GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52SH-4GLV?
Enquire Now
FAQs
This B-Line strut channel is designed to work with standard strut fittings and accessories, including KwikSplice splice plates and other B-Line components, ensuring quick, modular assemblies without custom hardware.
Key specs include a 4 in length, 0.81 in height, 1.62 in width, and a weight of approximately 0.397 lb per piece, with 12 gauge steel and a pre-galvanized finish.
The B52SH-4GLV uses a pre-galvanized steel finish suitable for indoor or controlled environments. For harsher, highly damp, or outdoor conditions, consider additional protective coatings or alternative materials per your environmental requirements.
The datasheet notes Certifications as Not Applicable. It adheres to standard B-Line geometry and installation practices, and you should follow local codes and Eaton’s installation guides for compliance.
Using this standardized 12 gauge, pre-galvanized channel reduces installation time, ensures consistent support, lowers maintenance needs, and simplifies procurement through compatibility with Eaton’s KwikSplice accessories and catalog resources.
