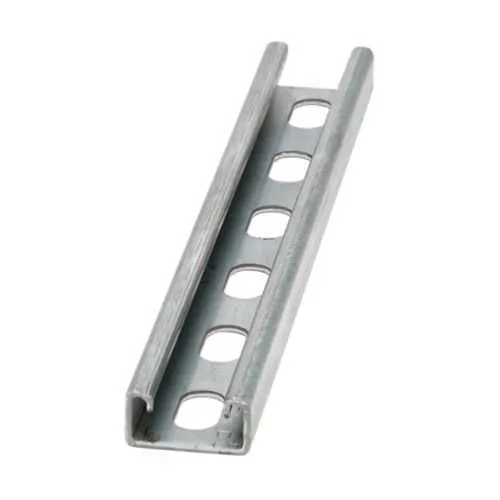

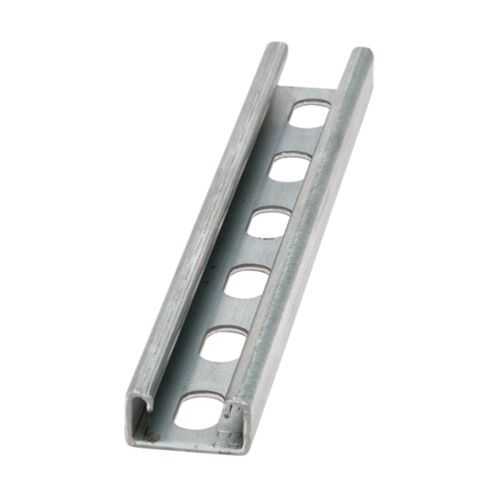

Eaton B52SH-60GLV Strut Channel - Pre-Galvanized Finish
Part Number: B52SH-60GLV
Quick Summary
Eaton B52SH-60GLV strut channel provides adjustable mounting for electrical and mechanical installations. Projects often struggle with rigid, non-adjustable supports that slow installation and complicate future upgrades. The datasheet lists certifications as Not Applicable, yet this B-Line channel is designed for compatibility with standard fittings and industry practices in industrial facilities. With a 60 in length, 0.81 in height, 1.62 in width, and a 12 gauge steel section, this pre-galvanized channel delivers stiffness and corrosion resistance for long service life. By integrating with KwikSplice hardware and a wide ecosystem of accessories, it reduces installation time and accelerates compliant layouts, offering a clear economic advantage for panel builders, OEMs, and maintenance teams.
Product Information
Extended Description
B52SH-60GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 60" L x 1.62" W, Steel, Pre-galvanized, SH, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52SH-60GLV
UPC
782051257410
Product Length/Depth
60 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
5.95 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
SH
Finish
Pre-galvanized
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B52SH-60GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 60 inch length provides longer spans with fewer joints, reducing installation time and potential weak points. Business impact: Faster deployments and simpler field adjustments, improving project throughput. Application: Cable management runs and equipment mounting in mid to large-scale installations benefit from reduced assembly steps. Feature: 12 gauge steel with a pre-galvanized finish delivers durable, corrosion-resistant support in harsh environments. Business impact: Longer service life with lower maintenance costs in industrial facilities. Application: Manufacturing floors and outdoor or damp locations where splash protection is valued. Feature: SH hole pattern enables flexible accessory placement and quick reconfiguration. Business impact: Superior adaptability lowers change-order risk and supports future expansions. Application: Reconfigurable racks, panels, and cross-members across electrical and mechanical systems. Feature: 60 in length combined with B52 channel type simplifies integration with standard fittings and KwikSplice splices. Business impact: Consistent, code-ready installations with fewer part numbers to manage. Application: OEM assemblies and retrofit projects where modularity matters. Feature: Pre-galvanized finish and 5.95 lb weight balance performance with ease of handling during installation. Business impact: Lower handling fatigue and safer on-site operations. Application: Field installations and service upgrades where transport and install time are critical. Industry context: Aligns with common B-Line accessories and installation practices for electrical and mechanical support structures.
Get a Quick Quote for a Eaton B52SH-60GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52SH-60GLV?
Enquire Now
FAQs
The B52SH-60GLV is designed to integrate with standard B-Line components, including KwikSplice options, thanks to the SH hole pattern and compatible channel dimensions. Use the 60 in length as a primary span, place support points per code requirements, and select KwikSplice accessories to join sections without welding. Properly spaced fittings and compatible hardware ensure secure, code-compliant assemblies with reduced field labor.
Key specs include Catalog Number B52SH-60GLV, 60 in length, 0.81 in height, 1.62 in width, 12 gauge steel, pre-galvanized finish, and weight around 5.95 lb. The SH hole pattern enables flexible accessory placement, while the 12 gauge steel provides structural rigidity for medium-duty supports. These factors combine to deliver dependable load capacity, relatively easy handling, and corrosion resistance in typical industrial environments.
Yes. The B52SH-60GLV strut channel is suitable for mounting electrical panels, cable management systems, and industrial equipment supports. Its 60 in length supports longer spans, the SH hole pattern allows versatile placement of fittings, and the pre-galvanized steel offers reliable corrosion resistance. This makes it a practical backbone for modular, repeatable layouts in manufacturing, data centers, and process facilities.
The product data indicates certifications as Not Applicable. Despite this, the B-Line strut channel uses standard dimensions and finishes compatible with common industry fittings and installation practices. Users should verify project-specific regulatory requirements, but the channel is designed to integrate with widely accepted electrical and industrial mounting standards.
Maintenance benefits come from the pre-galvanized finish that offers corrosion resistance and long service life, reducing routine upkeep. The modular design and compatibility with a broad accessory ecosystem minimize field rework and change orders, delivering lower installation labor costs and faster project completion. In turn, this translates to a favorable return on investment for OEMs and maintenance teams managing evolving layouts.
