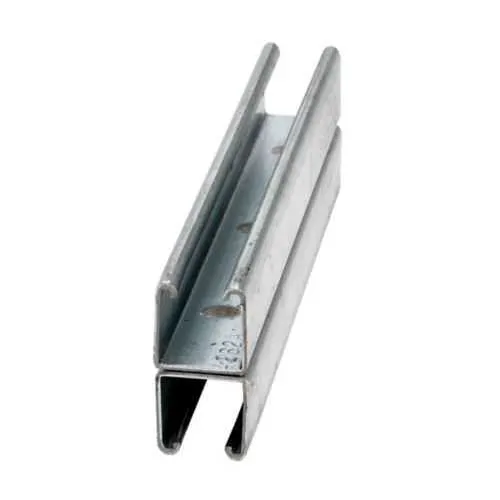

Eaton B52SHA-240PLN Strut Channel - 12 Gauge
Part Number: B52SHA-240PLN
Quick Summary
Eaton B52SHA-240PLN Strut Channel provides a back-to-back welded support framework ideal for industrial mounting. End users often face misalignment and slow installations when retrofitting or expanding support structures. While the data lists Not Applicable for certifications, this channel integrates with the Eaton B-Line system for consistent performance. For fast, scalable installations in control rooms and industrial enclosures, the 12 gauge steel construction delivers durability. By standardizing on this B-Line channel, engineering teams reduce part variety, simplify procurement, and accelerate commissioning. Its SHA hole pattern and back-to-back weld design support clean cable routing and reliable load transfer across spans. This combination also eases future upgrades without rework.
Product Information
Extended Description
B52SHA-240PLN Eaton: Eaton B-Line series strut back-to-back welded channel, 0.81" H x 240" L x 1.62" W, Steel, Plain, SHA, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B52SHA-240PLN
UPC
781011845070
Product Length/Depth
12 in
Product Height
1.625 in
Product Width
1.625 in
Product Weight
2.134 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
SHA
Finish
Plain
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B52SHA-240PLN
Dura-Green finish overview
Feature: Back-to-back welded channel design delivers exceptional rigidity and structural integrity by eliminating many intermediate connections. This reduces installation steps, minimizes misalignment risk, and lowers on-site rework costs across complex equipment racks. Application: ideal for mounting heavy electrical gear, supporting automation controls, and creating continuous support runs in control rooms, data centers, panel shops, and manufacturing floors. Feature: 12 gauge steel with a plain finish delivers high load capacity and robust durability in demanding environments. Business impact: longer service life translates to lower replacement and maintenance costs, especially where vibration, thermal cycling, or frequent reconfigurations occur. Application: suitable for electrical gear mounts, motor supports, cable management runs, and equipment supports along long spans or overhead installations. Feature: Dimensions of 0.81 in height, 240 in length, and 1.62 in width; weight per piece is 2.134 lb. Business impact: predictable cross-section and weight enable precise load planning, simplified shipping, and easier handling on site. Application: ideal for overhead strut runs, wall-mounted channel assemblies, and long-span installations in industrial facilities. Feature: SHA hole pattern enables fast, repeatable mounting with standard hardware. Business impact: accelerates bracket placement, reduces the risk of mis-drilled holes, and improves overall installation speed across multiple channel runs. Application: compatible with Eaton accessories and aligns with the Channel and Combinations Catalog Section to support modular configurations. Feature: Component compatibility within the Eaton B-Line system provides seamless interoperability with related catalog assets, finishes, and accessories. Business impact: streamlines procurement, shortens engineering cycles, and simplifies future upgrades or expansions. Application: ideal for modular automation and electrical installations, enabling scalable layouts that adapt to evolving facility needs.
Get a Quick Quote for a Eaton B52SHA-240PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52SHA-240PLN?
Enquire Now
FAQs
The B52SHA-240PLN is designed for compatibility with Eaton B-Line channel and accessories, featuring the SHA hole pattern that aligns with standard fasteners. This enables quick configuration, modular expansions, and reliable mounting across multi-run installations.
Plan around 0.81" height, 1.62" width, and 12 gauge steel with a 240" length. The channel weighs about 2.134 lb per piece, supporting long-span runs and steady load transfer when used with appropriate brackets and supports.
The data lists a Plain finish with no IP rating or CE/SIL certification. For outdoor or harsh environments, consider enclosure-rated accessories or finish options in the Eaton B-Line catalog and verify compatibility with your regional standards.
This channel is part of the Eaton Channel and Combinations Catalog Section, ensuring compatibility with a wide range of Eaton brackets, mounts, and accessories designed for modular configurations and quick upgrades.
Back-to-back welds reduce the number of required fasteners, increasing assembly rigidity and reducing rework. Longer service life and easier future reconfigurations translate to lower maintenance costs and faster commissioning in automation and electrical installations.
