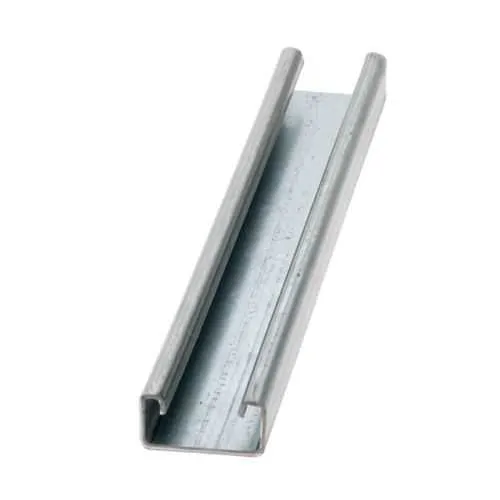

Eaton B54-13GLV Strut Channel - Pre-Galvanized 14 Gauge
Part Number: B54-13GLV
Quick Summary
Eaton B-Line strut channel securely supports electrical and mechanical assemblies in industrial facilities. This entry helps prevent misalignment and corrosion-related downtime when mounting in constrained spaces, offering a robust backbone for cable management and equipment supports. Certifications: Not Applicable; this item uses pre-galvanized steel in a 14-gauge profile, designed for seamless compatibility with the B-Line series and standard installation practices. For procurement and engineering teams, the durable finish and modular channel design simplify layout planning, reduce field fabrication, and accelerate project timelines across manufacturing, data centers, and processing plants.
Product Information
Extended Description
B54-13GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 13" L x 1.62" W, Steel, Pre-galvanized, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54-13GLV
UPC
799038729044
Product Length/Depth
13 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
1.10066667 lb
Certifications
Not Applicable
Channel type
B54
Finish
Pre-galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54-13GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: Precise dimensions—13 in long, 0.81 in height, and 1.62 in width—made from 14 gauge steel with a pre-galvanized finish. This combination yields a rugged, predictable load path and consistent mounting footprint across assemblies. Business impact: engineers gain repeatable install quality, reduced field adjustments, and fewer call-backs due to misalignment. Application: ideal for straight runs between supports and cross-members in electrical, data-center, and machinery mounting where standardized channel spacing is critical. Feature: Pre-galvanized finish provides corrosion resistance in indoor environments and factory floors. This finish extends service life and reduces maintenance costs over the product’s lifecycle. Business impact: longer intervals between repaint and rework, lower total cost of ownership, and improved reliability in cable management and support systems. Application: suited for indoor electrical rooms, mechanical spaces, and crawl zones where moisture exposure is limited. Feature: B54 channel type with compatible form factor matches Eaton’s B-Line system and a broad ecosystem of accessories. Business impact: faster installation with common nuts, bolts, clips, and splice plates, reducing on-site labor and part numbers. Application: ideal for modular rack mounting, ladder-tray transitions, and support rails in facilities handling power, controls, and data. Feature: Manageable weight at approximately 1.10 lb per 13 in segment supports safe handling by installation teams. Business impact: lowers worker fatigue, improves efficiency on multi-point installations, and supports safer lifting practices. Application: field or shop assembly of support rails, brackets, and enclosure frameworks in industrial plants and commercial buildings. Feature: Comprehensive Eaton documentation including specification sheets and catalogs (e.g., Strut Channel Identification Overview). Business impact: offers clear references for purchasing, design validation, and QA audits. Application: procurement teams can quickly verify compatibility with KwikSplice, channel and combinations catalogs, and system overviews before ordering.
Get a Quick Quote for a Eaton B54-13GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54-13GLV?
Enquire Now
FAQs
The B54-13GLV strut channel is designed to work with standard strut channel nuts, bolts, clips, and splice plates used in Eaton’s B-Line system. It also aligns with the wider KwikSplice and B-Line accessory ecosystem, enabling quick mounting of panels, cable trays, and supports without custom fabrication. Refer to the Strut Channel Catalog and installation sheets for exact part numbers and compatibility notes.
Exact load ratings depend on span, mounting hardware, and supported components. The B54-13GLV is manufactured from 14-gauge steel with a 0.81" x 1.62" cross-section, offering solid structural support for standard electrical and mechanical mounting. For precise values, consult the Eaton Specification Sheet for B54-13GLV and perform a span-and-support calculation per your installation design.
Yes, the B54-13GLV is well-suited for indoor, dry environments typical of data centers and manufacturing floors. The pre-galvanized finish provides corrosion resistance, and the 13 inch length with standard B-Line dimensions supports modular mounting of racks, enclosures, and cable management systems. Avoid outdoor or highly exposed environments unless additional protective measures are specified.
No CE, IP, or similar certifications are listed for this specific entry. The data shows Not Applicable for certifications. For regulatory compliance, verify via the overall system and applicable Eaton documentation, including the Strut Channel Identification Overview and the official spec sheet, to ensure alignment with your project requirements.
Using standardized Eaton B-Line strut channel reduces field fabrication, speeds up assembly, and minimizes rework thanks to consistent dimensions and modular accessories. The pre-galvanized finish also lowers maintenance costs by improving corrosion resistance. Overall, this translates to shorter project timelines and a lower total cost of ownership in data centers, factory floors, and electrical rooms.
