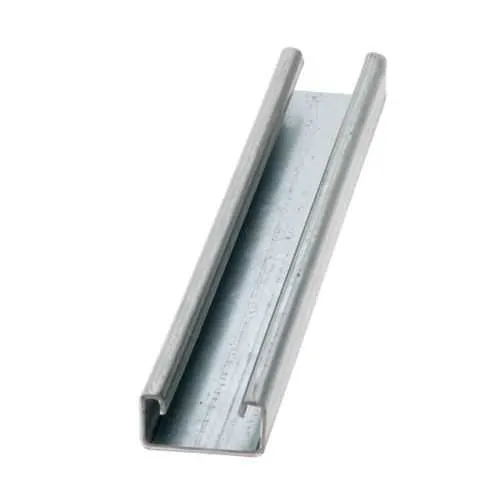

Eaton B54-18AL Strut Channel - Aluminum 14 Gauge
Part Number: B54-18AL
Quick Summary
Eaton B54-18AL Strut Channel provides durable mounting support for electrical, mechanical, and data cable runs in industrial racks and enclosures. Installers often struggle with time-consuming fabrication and misalignment when using generic framing, which drives up labor costs. Certifications are Not Applicable for this model, but its aluminum construction and standard B54 geometry integrate smoothly with Eaton's KwikSplice accessories and a broad ecosystem of compatible hardware. Leveraging these features delivers longer service life, easier replacements, and streamlined maintenance planning for industrial facilities while supporting efficient, scalable mounting solutions.
Product Information
Extended Description
B54-18AL Eaton: Eaton B-Line series strut channel, 0.81" H x 18" L x 1.62" W, Aluminum, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54-18AL
UPC
782051214420
Product Length/Depth
18 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
1.524 lb
Certifications
Not Applicable
Channel type
B54
Material
Aluminum
Material gauge
14 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54-18AL
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: Aluminum construction with 14 gauge material yields high strength while remaining lightweight. Impact: Reduces handling effort and supports long-term corrosion resistance in indoor environments, improving overall installation efficiency for electrical and mechanical mounting. Application: Ideal for rack mounting and enclosures where sturdy support is required without added weight. Feature: Exact dimensions 0.81 in height, 1.62 in width, and 18 in length provide predictable fit and alignment. Impact: Facilitates quick, repeatable assemblies with consistent channel geometry across projects, cutting fabrication time and minimizing field errors. Application: Standardized framing for control panels and equipment mounting in industrial facilities. Feature: Channel type B54 with catalog number B54-18AL ensures compatibility within the Eaton B-Line strut ecosystem. Impact: Streamlines parts selection, reduces compatibility risk, and simplifies stocking for procurement teams. Application: New builds and retrofit projects where modular hardware is required. Feature: Lightweight weight of 1.524 lb enhances install efficiency and reduces total support structure load. Impact: Lowers crane and scaffold demands in overhead or elevated installations, contributing to safer, faster builds. Application: Industrial racks, machine frames, and ceiling-hung supports. Feature: Material finish Aluminum provides natural corrosion resistance and durability without painting, enabling quicker deployment in clean or controlled environments. Impact: Lower life-cycle costs due to reduced maintenance and longer service intervals. Application: Enclosures and mechanical systems in manufacturing facilities where longevity matters. Feature: Broad compatibility with accessories and catalogs (for example KwikSplice systems and channel-and-combinations literature) enables flexible configurations. Impact: Improves design versatility and reduces engineering time when adjusting layouts. Application: Cable management, splices, and system expansion in evolving plant layouts.
Get a Quick Quote for a Eaton B54-18AL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54-18AL?
Enquire Now
FAQs
The B54-18AL is ideal for standard mounting in control panels, equipment racks, and enclosure frames where a rigid, lightweight aluminum channel is required. Its 18 inch length and precise 0.81 in by 1.62 in cross-section support consistent assemblies, while its compatibility with Eaton B-Line accessories and KwikSplice components enables fast, scalable configurations without custom fabrication.
Key specs include a length of 18 inches, height of 0.81 inches, width of 1.62 inches, and a material gauge of 14. The channel is aluminum and weighs 1.524 pounds. The catalog number is B54-18AL, and the UPC is 782051214420, with channel type identified as B54.
The B54-18AL is designed for standard strut channel applications and general mounting in enclosures and framing. While it provides solid support for light to medium loads and cable management interfaces, for very heavy-duty tray or high-load scenarios you may consider thicker gauges or alternative support systems. It integrates well with modular accessories to adapt to varying load requirements.
According to the data provided, certifications are Not Applicable for this model. Customers should verify regional regulatory requirements and confirm any site-specific compliance needs, especially where CE, IP, or SIL classifications are mandated by procurement specs or end-user standards.
Benefits include faster installation due to precise dimensions and lightweight handling, reduced field fabrication, and lower labor costs. Aluminum construction provides corrosion resistance and longer service life, lowering maintenance and replacement needs. The product’s compatibility with a broad ecosystem of accessories also shortens design cycles and enables scalable performance across plant layouts.
