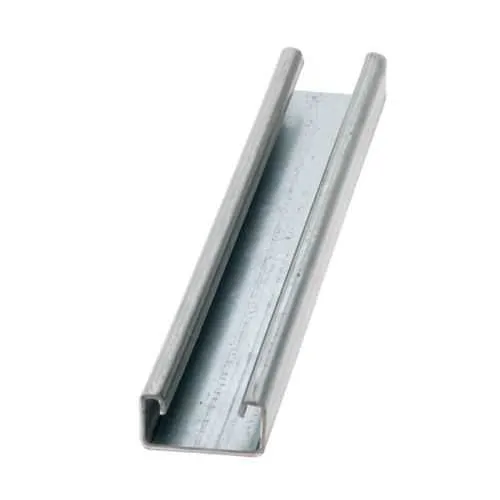

Eaton B54-240AL Strut Channel - Aluminum 14 Gauge
Part Number: B54-240AL
Quick Summary
Eaton B54-240AL Strut Channel provides modular aluminum framing for electrical and mechanical support in enclosures and rack systems. Engineers often wrestle with weight, corrosion, and long installation times in crowded electrical rooms; this channel helps simplify handling and reduce site labor. Note: SIL, CE, and IP ratings are not applicable to this standalone channel. The combination of 14 gauge aluminum, a 0.81 inch height, and a 240 inch length delivers a durable, scalable solution that easily integrates with standard fittings and KwikSplice accessories, improving project timelines and maintenance planning. Using this B-Line component supports consistent mounting practices, minimizes spare parts, and enhances overall system reliability in industrial automation environments. This design also supports predictable performance across varied temperatures and mounting configurations.
Product Information
Extended Description
B54-240AL Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Aluminum, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54-240AL
UPC
781011255459
Product Length/Depth
240 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
20.32 lb
Certifications
Not Applicable
Channel type
B54
Material
Aluminum
Material gauge
14 Gauge
Strut Channel Identification Overview
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54-240AL
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature aluminum construction with 14 gauge thickness → Business impact: lightweight yet strong framing that reduces handling effort and structural load on support structures; Application: ideal for overhead runs and wall-mounted enclosures in automation environments. Feature 240 inch length with 0.81 inch height and 1.62 inch width → Business impact: long spans with fewer joints and adaptable routing; Application: streamlined cable management and equipment mounting along production lines. Feature B54 channel type compatibility → Business impact: seamless integration with standard Eaton fittings and accessories, reducing custom fabrication; Application: quick upgrades or modular expansions in control panels and switchgear areas. Feature metal finish and corrosion resistance → Business impact: durable performance in manufacturing environments with minimal maintenance; Application: long service life in dynamic industrial settings. Feature KwikSplice compatibility → Business impact: faster assembly and easier rework with splice plates and clamps; Application: rapid commissioning and scalable system upgrades. Note: Not all environments require certified ratings for this component; consult project specs and Eaton datasheets for specific regulatory compliance and environmental considerations.
Get a Quick Quote for a Eaton B54-240AL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54-240AL?
Enquire Now
FAQs
The B54-240AL is designed to integrate with Eaton KwikSplice splice plates and related fittings, enabling quick assembly and flexible reconfiguration. This compatibility reduces field labor and minimizes the need for custom fabrication. When planning a layout, select standard B-Line channel fittings to maintain consistent mounting points and reduce spare parts inventory.
Key specs include a 240 in length, 0.81 in height, and 1.62 in width, fabricated from aluminum with a 14 gauge thickness. The catalog number is B54-240AL, and the unit weight is approximately 20.32 lb per channel length. The UPC is 781011255459, and the channel type is B54, enabling standard compatibility with B-Line accessories.
As an aluminum strut channel, it offers inherent corrosion resistance suitable for many industrial settings. Specific environmental suitability should be verified against project requirements; for additional protection, review available finish options and the Dura-Green finish overview to determine if an enhanced coating is appropriate for your environment.
Applications include electrical enclosure framing, overhead support for cabling, and mechanical mounting in automation and control rooms. The long 240 in length reduces the number of joints, while 14 gauge aluminum provides a sturdy yet lightweight framework. It pairs well with standard fittings and clamps for scalable, modular installations.
Investing in the B54-240AL translates to lower labor costs due to faster assembly and easier field modifications with KwikSplice accessories. The aluminum material offers corrosion resistance and a long service life, reducing maintenance intervals. Its standardized dimensions and compatibility minimize spare parts and expedite future upgrades within automated plants.
