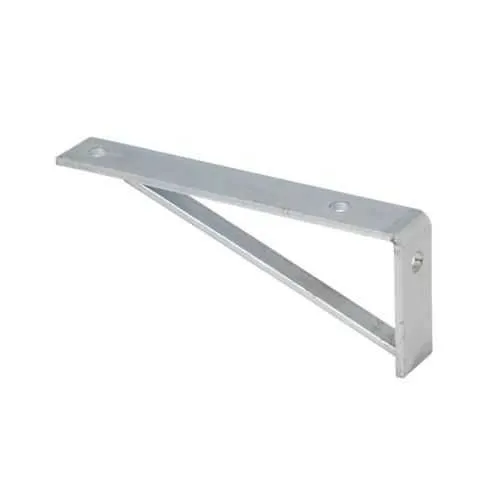

Eaton B541ZN Bracket - Electro-plated Steel finish
Part Number: B541ZN
Quick Summary
The Eaton B541ZN Bracket provides sturdy steel mounting support for B-Line strut systems in industrial enclosures. In crowded control panels, misaligned supports and corrosion threaten uptime and maintenance costs. Certifications: Not Applicable; the bracket does not carry standalone SIL, CE, or IP ratings. However, it remains fully compatible with Eaton's B-Line strut ecosystem and standard hardware, enabling scalable installations. The electro-plated steel finish provides corrosion resistance for harsh environments, delivering reliable performance and reduced maintenance for electrical assemblies. Designed to support 10.5 in length, 4 in height, and 1.62 in width with a weight around 2.01 lb, it installs quickly against standard strut channels and minimizes added load on the framework.
Product Information
Extended Description
B541ZN Eaton: Eaton B-Line series bracket, 4" H x 10.5" L x 1.62" W, Steel, Electro-plated
Product Name
Eaton B-Line series bracket
Catalog Number
B541ZN
UPC
781011558499
Product Length/Depth
10.5 in
Product Height
4 in
Product Width
1.62 in
Product Weight
2.01 lb
Certifications
Not Applicable
Type
Bracket
Finish
Electro-plated
Material
Steel
Feature: Sturdy steel construction provides high bending stiffness and robust mounting for equipment within B-Line strut systems. Business Impact: This reduces the risk of component sag, misalignment, and vibration, improving system reliability, uptime, and service life. Application: Ideal for supporting shelves, relays, power distribution blocks, and mounting hardware in control panels and industrial enclosures. In practice, engineers appreciate the predictable fit and the confidence that heavy modules stay aligned over years of operation. The design supports standard hardware diameters and fasteners, simplifying sourcing and replacement. Feature: Electro-plated finish delivers corrosion resistance in damp, dusty, or wash-down environments. Business Impact: Lower maintenance costs, fewer corrosion-related failures, and longer service life translate into predictable total cost of ownership. Application: Suitable for electrical cabinets, process panels, and warehouse automation racks where brackets endure exposure to humidity and contaminants. This finish also helps conceal minor wear and keeps a clean appearance in panel interiors. Industry context: coating compatibility with other steel components reduces potential galvanic issues in mixed-metal assemblies. Feature: Precise dimensions and weight enable predictable fit and load distribution: 4 in height, 10.5 in length, 1.62 in width; 2.01 lb. Business Impact: Accurate mounting supports stable equipment and efficient cable management, reducing rework during panel builds. Application: Works with standard B-Line strut channels and fittings for fast, scalable installations. Engineering note: the 10.5 in length accommodates mid-span support in typical racks while keeping center of gravity aligned with adjacent hardware. Feature: Catalog integration and compatibility with industry catalogs and datasheets. Business Impact: Simplifies procurement and engineering documentation, reducing BOM complexity. Application: Use with catalog section references and the official specification sheet to ensure correct part selection. Note: Catalog numbers and UPC ensure traceability during audits and maintenance programs. Feature: Installation and maintenance advantages. Business Impact: Quick installation minimizes field labor and training requirements; robust steel construction reduces replacement cycles. Application: Ideal for panel builds and retrofits, where a single bracket can support multiple components across varied configurations. Industry insight: customers report faster project completion and lower total cost of ownership when standardizing on Eaton B-Line components.
Get a Quick Quote for a Eaton B541ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B541ZN?
Enquire Now
FAQs
Yes. The B541ZN is designed to work with standard B-Line strut channels and common channel nuts, bolts, and ATR hardware. Its 10.5 in length and 4 in height accommodate typical panel configurations, enabling straightforward mounting in control cabinets and electrical enclosures. Always verify channel dimensions and load requirements for your specific installation to ensure optimal performance.
The electro-plated finish enhances corrosion resistance, helping brackets endure humidity, dust, and wash-down environments common in industrial enclosures. Coupled with steel construction, the bracket maintains stiffness under load, supporting relays, power blocks, and accessory hardware without significant deformation. This combination translates to longer service life and reduced maintenance in demanding facilities.
The B541ZN is optimized for indoor electrical enclosures and controlled environments where standard B-Line hardware is used. While the electro-plated finish improves corrosion resistance, the product does not list IP or weatherproof ratings. For outdoor or high-exposure applications, consider additional protective enclosures or coatings and verify regional environmental requirements before deployment.
Certifications: Not Applicable. The B541ZN bracket does not carry standalone SIL, CE, or IP ratings. It is designed to complement Eaton's B-Line strut ecosystem and standard panel hardware. If your project requires specific certifications, confirm applicable standards with your procurement and compliance teams and refer to Eaton's specification sheets for guidance.
Using the B541ZN bracket can reduce maintenance intervals due to its corrosion-resistant electro-plated finish and durable steel construction. Its standardized size and compatibility with common fasteners streamline sourcing and installation, lowering labor costs and BOM complexity. Over multiple assemblies, these efficiencies contribute to faster project completion and lower total cost of ownership.
