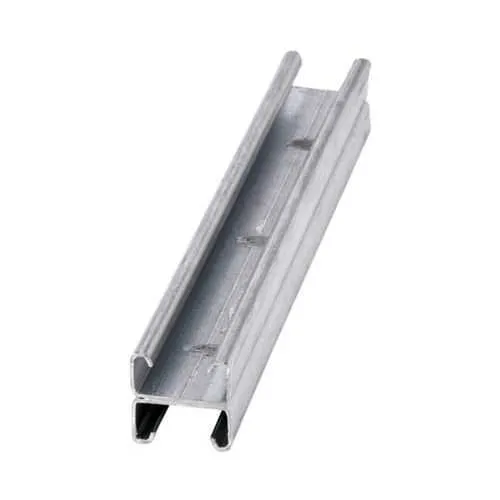

Eaton B54A-120SS4 Strut Back-to-Back Channel - SS304
Part Number: B54A-120SS4
Quick Summary
The Eaton B54A-120SS4 Strut Back-to-Back Channel provides durable support for electrical and mechanical installations in busy industrial environments. Users wrestle with misalignment, corrosion risk, and installation delays that erase productivity gains and inflate maintenance costs. This model uses stainless steel type 304 and a 14-gauge wall to deliver high strength and long-term corrosion resistance. Certifications are not applicable for this entry, while its precise dimensions and compatibility with Eaton's B-Line accessories support fast, compliant installs. In practice, this combination reduces lifecycle costs and simplifies future expansions for facilities that demand reliability and scalable framing solutions.
Product Information
Extended Description
B54A-120SS4 Eaton: Eaton B-Line series strut back-to-back welded channel, 0.81" H x 120" L x 1.62" W, Steel, Stainless steel type 304, 14 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B54A-120SS4
UPC
781011261115
Product Length/Depth
12 in
Product Height
1.625 in
Product Width
1.625 in
Product Weight
20.32 lb
Certifications
Not Applicable
Channel type
B54
Finish
Stainless steel type 304
Material
Steel
Material gauge
14 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B54A-120SS4
Dura-Green finish overview
Feature: Back-to-back welded channel design enables continuous framing with fewer joints, reducing assembly time and part count. Business impact: Faster project completion and lower labor costs. Application: Data centers, electrical rooms, and manufacturing lines benefit from modular racking and dependable cable management. Feature: Stainless steel type 304 finish provides superior corrosion resistance in washdown areas and outdoor environments. Business impact: Extended service life and reduced maintenance intervals. Application: Food processing, pharma, outdoor enclosures, and harsh environments. Feature: 14 gauge steel with 12 in length and 1.625 in width/height delivers robust load capacity without excessive weight. Business impact: Fewer intermediate supports and easier handling during installation. Application: Heavy-duty support structures for equipment, pipe racks, and distribution frames. Feature: Weight of 20.32 lb per piece and compatibility with Eaton's Channel and Combinations Catalog Section enable predictable budgeting and streamlined fabrication. Business impact: Improved planning accuracy and faster on-site assembly. Application: Modular framing configurations in retrofit projects and new builds. Feature: Compatibility with B-Line accessories ensures straightforward integration with existing systems. Business impact: Shorter engineering cycles and reduced risk of misfit components. Application: Electrical rooms, data centers, and industrial plants seeking standardized, scalable framing solutions. Feature: Certifications are Not Applicable for this entry, yet the design emphasizes precision dimensions and material performance for reliable operation. Business impact: Lower compliance risk in standard installations and clearer procurement paths. Application: General-purpose structural framing in industrial environments.
Get a Quick Quote for a Eaton B54A-120SS4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54A-120SS4?
Enquire Now
FAQs
For back-to-back installations, align channels precisely and secure with standard strut nuts and bolts at regular intervals to maintain straight runs. Use overlapping brackets where required for staggered mounting, and verify alignment with a simple plumb and level check before final tightening. This minimizes future misalignment and simplifies cabinet or rack integration.
The 304 stainless steel finish provides excellent resistance to corrosion, especially in damp, washdown, or outdoor settings. This reduces surface degradation and maintenance cycles, contributing to longer service life and lower total cost of ownership. In practice, it supports reliable performance in data centers, outdoor enclosures, and manufacturing floors.
Yes. The B54A-120SS4 is designed to integrate with Eaton's B-Line strut channel accessories, enabling modular configurations and quick field upgrades. Its back-to-back channel geometry supports straightforward coupling with compatible brackets, nuts, and bolts, helping engineers realize scalable framing systems across new builds and retrofit projects.
The 14 gauge wall delivers robust mechanical strength without excessive weight, enabling longer spans and fewer intermediate supports. A 12 in length supports compact, modular segments ideal for electrical racks, pipe supports, and equipment mounts, reducing the number of joints and improving installation speed while maintaining load-bearing capacity.
Certifications are Not Applicable for this entry in our catalog. For projects requiring specific standards, consult Eaton for documentation on applicable certifications or alternative parts that carry CE, IP, or SIL markings. In any case, the product's material and dimensions are designed for reliable, compliant performance in typical industrial framing applications.
