Eaton B54H17/8-120GLV Strut Channel - H178 Hole Pattern
Part Number: B54H17/8-120GLV
Quick Summary
Eaton B54H17/8-120GLV Strut Channel enables versatile support framing for electrical and mechanical systems in industrial installations. Projects often struggle with lengthy installations, misaligned supports, and corrosion risks in harsh environments. This B-Line channel uses durable pre-galvanized steel in a 14 gauge construction, with a 120 inch length and H178 hole pattern that streamline field mounting and alignment. While the data lists Certifications as Not Applicable, the solution leverages Eaton’s robust B-Line platform for reliable performance across enclosure and rack installations. Selecting this channel delivers predictable compatibility, faster turnarounds, and lower total installed cost without compromising structural integrity or serviceability.
Product Information
Extended Description

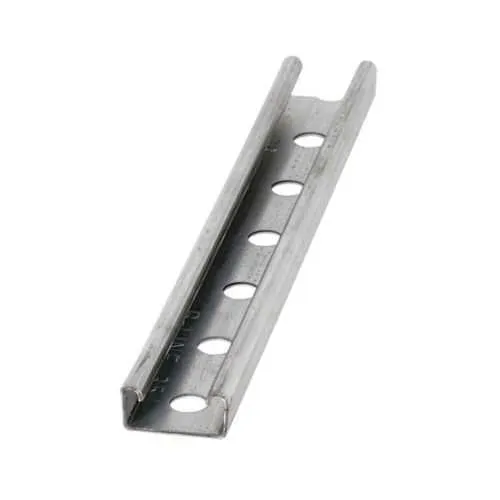

B54H17/8-120GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Pre-galvanized, H178, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54H17/8-120GLV
UPC
781011258306
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
9.3 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
H178
Finish
Pre-galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54H17/8-120GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 120 inch length with standard hole pattern enables faster layout and fewer field splices, reducing installation time and on-site fabrication costs. Business Impact: Lower total installed cost and improved project scheduling for facilities with tight deadlines. Application: Electrical enclosures, cable management, and equipment mounting in control rooms and process plants. Feature: 14 gauge steel with a pre-galvanized finish provides corrosion resistance and long service life. Business Impact: Reduced maintenance cycles and longer interval between replacements in challenging environments. Application: Outdoor or damp locations and high-humidity facilities. Feature: Hollow B54 channel type and H178 hole pattern align with common accessories for quick integration. Business Impact: Accelerated commissioning and reliable accessibility for future upgrades. Application: Racking, support架ing, and support structures in automation architectures. Feature: Compatibility with Eaton KwikSplice accessories and B-Line ecosystem enhances install efficiency. Business Impact: Fewer specialized tools required and simplified splicing, lowering labor costs. Application: Cable tray bracing, cross supports, and equipment mounting. Feature: 120 inch length minimizes field splicing needs and supports modular growth. Business Impact: Scalable infrastructure that adapts to evolving layouts and growth in manufacturing lines. Application: Data centers, control cabinets, and plant floor framing.
Get a Quick Quote for a Eaton B54H17/8-120GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54H17/8-120GLV?
Enquire Now
FAQs
To install, measure the span, cut to length as needed, and align with the H178 hole pattern. Use appropriate fasteners and level the channel before securing to mounting surfaces. For modular assemblies, leverage KwikSplice splice plates and compatible fittings to minimize on-site fabrication and ensure a secure, code-compliant frame.
H178 is Eaton’s standardized hole pattern for this B54 channel family, providing consistent alignment points for accessories, brackets, and braces. It enables quick attachment of supports and simplifies reconfiguration, reducing installation time and improving future upgrade capabilities in control rooms and industrial equipment rooms.
Yes. The B54H17/8-120GLV is designed to integrate with KwikSplice accessories, including splice plates and related hardware. This compatibility streamlines splicing in cable tray and channel assemblies, reducing field fabrication and enabling faster, safer installations with fewer misalignments.
The channel is made from steel with a 14 gauge thickness and a pre-galvanized finish for corrosion resistance. It weighs approximately 9.3 lb per 120 in length, with dimensions of 0.81 in height and 1.62 in width, supporting robust vertical and horizontal framing in demanding environments.
This strut channel is well-suited for electrical and mechanical support framing in industrial automation, data centers, and control cabinets. Its long 120 in length, standard hole pattern, and durable finish make it ideal for mounting enclosures, cable trays, and equipment racks while enabling scalable, modular system design.
