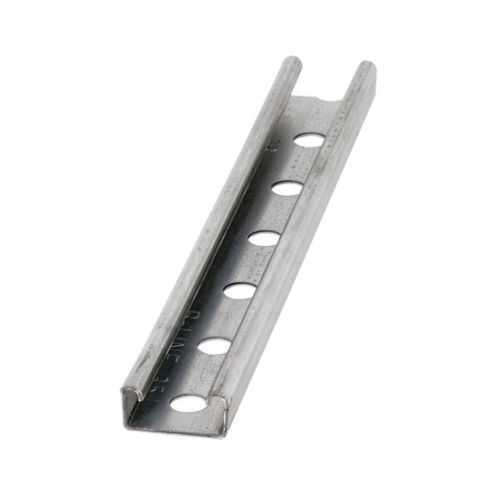

Eaton B54H17/8-120HDG Strut Channel - Hot-Dipped
Part Number: B54H17/8-120HDG
Quick Summary
The Eaton B-Line strut channel is a modular mounting solution that enables flexible support for electrical and mechanical equipment in industrial facilities. Engineers often face slow installation, corrosion risk, and compatibility gaps when assembling channel systems, driving delays and higher costs. Certifications are Not Applicable for this SKU, while the hot-dipped galvanized steel finish provides corrosion resistance suitable for long-term service. The B54 channel’s standard dimensions and hole pattern support quick, predictable assembly with Eaton accessories from the B-Line catalog, improving field install times and maintenance accessibility. This combination delivers reliable structural support and scalable installation for panel assemblies, cable management, and equipment supports.
Product Information
Extended Description
B54H17/8-120HDG Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Hot-dipped galvanized, H178, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54H17/8-120HDG
UPC
781011258092
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
9.3 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
H178
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54H17/8-120HDG
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: Precise dimensions and construction. Business Impact: Predictable load handling and straightforward alignment reduce field rework and misfits. Application: Ideal for long-span runs and clean installations in electrical and mechanical support projects, including panel supports and enclosure mounting. Long-tail keywords: hot-dipped galvanized strut channel, 14 gauge steel channel, B-Line strut channel compatibility. Feature: Material finish and corrosion resistance. Business Impact: Extended service life in damp or outdoor environments lowers lifecycle costs and maintenance needs. Application: Outdoor or industrial facilities where exposure is a concern, with compatibility to standard fasteners and accessories. Long-tail keywords: galvanized steel channel, corrosion-resistant B54 channel. Feature: Hole pattern and channel type. Business Impact: Standardized mounting points enable rapid accessory attachment and scalable configurations. Application: Rack and support assemblies with KwikSplice and other Eaton accessories. Long-tail keywords: H178 hole pattern, B54 channel type. Feature: Length and weight. Business Impact: 120-inch length reduces splicing points and simplifies routing, while 9.3 lb weight supports manageable on-site handling. Application: Ceiling or wall-mounted runs requiring consistent support spacing. Long-tail keywords: 120 in strut channel, 9.3 lb channel. Feature: Compatibility with Eaton catalogs and KwikSplice accessories. Business Impact: Streamlined procurement and installation with widely supported components, reducing project risk. Application: System installations across industrial facilities with standard Eaton components. Long-tail keywords: KwikSplice compatibility, B-Line catalog access.
Get a Quick Quote for a Eaton B54H17/8-120HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54H17/8-120HDG?
Enquire Now
FAQs
The B-Line strut channel supports a wide range of Eaton accessories, including KwikSplice components. Installation instructions in the provided documentation (ctis-18 and ctis-19) outline splice plates and compatible mounting hardware, enabling rapid assembly and reducing field labor without compromising channel integrity.
This strut channel measures 120 inches in length, with a height of 0.81 inches and a width of 1.62 inches. It is made from steel and finished in hot-dipped galvanized coating, using a 14 gauge thickness and a hole pattern of H178, channel type B54.
Yes. The hot-dipped galvanized finish provides enhanced corrosion resistance, making it suitable for damp, outdoor, and exposed industrial environments where long-term durability is important and maintenance cycles are a consideration.
Certifications are listed as Not Applicable for this SKU. The specification emphasizes dimensions, material, finish, and standard B-Line channel geometry rather than formal third-party certifications.
Hot-dipped galvanization protects the base steel from corrosion, extending service life, reducing repaint and replacement costs, and lowering total cost of ownership in demanding facilities. This is especially advantageous for long-span or outdoor installations where exposure to moisture and contaminants is a factor.
