Eaton B54H17/8-120PLN Strut Channel - 14 Gauge H178 Plain
Part Number: B54H17/8-120PLN
Quick Summary
Eaton B54H17/8-120PLN Strut Channel provides a robust mounting backbone for electrical and mechanical systems in industrial facilities. Engineers often struggle with misaligned supports, tool-heavy installation, and repeat work that drives downtime and cost. This B-Line channel leverages 14 gauge steel, a plain finish, and the H178 hole pattern to support fast, repeatable assemblies. Certifications listed are Not Applicable, but verify CE, IP, or SIL requirements with your project team if needed. Its compatibility with standard fittings and Eaton strut-system accessories helps reduce part proliferation and procurement complexity, delivering reliable, scalable mounting solutions that improve installation speed and long-term maintenance efficiency.
Product Information
Extended Description

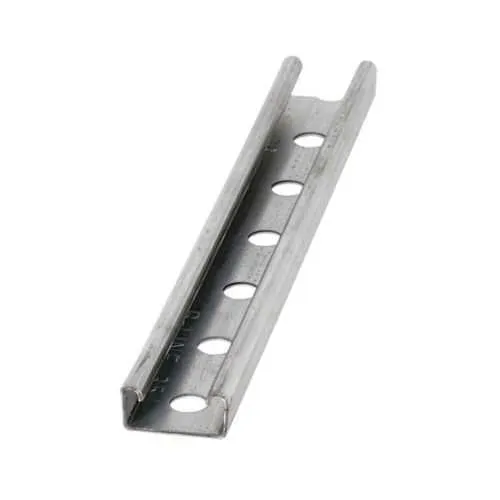

B54H17/8-120PLN Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Plain, H178, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54H17/8-120PLN
UPC
781011258108
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
9.3 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
H178
Finish
Plain
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54H17/8-120PLN
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 14 gauge steel construction with plain finish; Business Impact: provides durable load-bearing capacity while keeping cost and complexity low; Application: ideal for electrical and mechanical support in facility installations where moderate to heavy loads are expected. Feature: 0.81" height, 1.62" width, and 120" length; Business Impact: enables modular, long-span supports with consistent interface for fittings; Application: supports cable trays, conduit runs, and equipment mounting along large-scale R&D and manufacturing lines. Feature: Hole pattern H178; Business Impact: ensures precise alignment with standard strut nuts and accessories for faster assembly; Application: rapid field installations and retrofit projects. Feature: 14 Gauge steel with plain finish; Business Impact: robust structural integrity with minimal maintenance and corrosion resistance appropriate for indoor environments; Application: general purpose electrical and mechanical support in warehouses and plants. Feature: 120 inch length with a weight of 9.3 lb; Business Impact: easy handling and installation across multiple teams, reducing labor time; Application: ceiling and wall-mounted support runs in new builds or retrofits. Feature: Compatibility with Eaton KwikSplice and supporting catalogs; Business Impact: accelerates installation through pre-engineered splice options and standard accessories; Application: system-wide cable management and racking solutions in OEM and industrial facilities.
