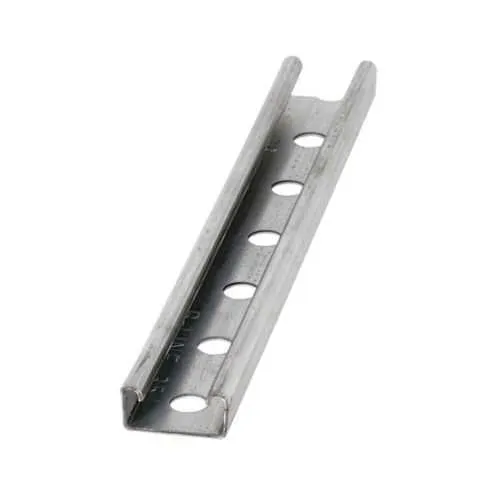

Eaton B54H17/8-120SS4 Strut Channel - 304SS
Part Number: B54H17/8-120SS4
Quick Summary
Eaton B54H17/8-120SS4 Strut Channel provides durable support for electrical and mechanical installations in industrial enclosures. Designers face corrosion risk, misalignment, and compatibility gaps when assembling support systems, which drive maintenance downtime and lifecycle costs. This item lists Certifications as Not Applicable, but the stainless steel type 304 finish delivers robust corrosion resistance essential for harsh environments. Built for seamless integration with B-Line series hardware, it enables quick field adjustments and reliable mounting across varying layouts. The 0.81 in height, 1.62 in width, and 14 gauge construction balance strength with light weight, while the 120 in length and precise hole pattern H178 support configurable runs for racks, cabinets, and cable management subsystems in demanding facilities.
Product Information
Extended Description
B54H17/8-120SS4 Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Stainless steel type 304, H178, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54H17/8-120SS4
UPC
781011258085
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
9.3 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
H178
Finish
Stainless steel type 304
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54H17/8-120SS4
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: Stainless steel type 304 finish provides superior corrosion resistance. Business Impact: extends service life, lowers maintenance costs, and reduces replacement cycles in humid or chemical environments. Application: ideal for factory floors, outdoor enclosures, and wash-down areas where moisture exposure is high. Feature: 14 gauge steel with 0.81 in height and 1.62 in width delivers sturdy yet manageable support rails. Business Impact: improves mounting rigidity without excessive weight, streamlining installation and handling. Application: data centers, control rooms, and machinery supports where precise alignment matters. Feature: 120 in length with hole pattern H178 enables flexible layouts and secure fastener placement. Business Impact: speeds on-site assembly and minimizes rework through repeatable mounting patterns. Application: multi-rack configurations and cross-aisle installations that demand modular expansion. Feature: B-Line series compatibility ensures common hardware interoperability. Business Impact: reduces procurement complexity and stocking of adapters, cutting lead times. Application: standardizing across Eaton strut channel ecosystems and KwikSplice accessories. Feature: Notable installation advantages include straight-forward cuts and clean finish with compatible hardware. Business Impact: lowers labor costs and enhances field accuracy, contributing to faster project completion. Application: retrofit projects and new builds in industrial facilities needing reliable, long-lasting support rails.
Get a Quick Quote for a Eaton B54H17/8-120SS4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54H17/8-120SS4?
Enquire Now
FAQs
The B54H17/8-120SS4 is designed to integrate tightly with Eaton’s KwikSplice accessories and standard B-Line channel hardware. Its 120 in length and H178 hole pattern align with common mounting practices, enabling quick, secure splicing and straightforward installation without custom adapters. This compatibility reduces assembly time and inventory fragmentation in industrial installations.
Key specs include 0.81 in height, 1.62 in width, 14 gauge steel, and a 120 in length with hole pattern H178, finished in stainless steel type 304. These dimensions provide a rigid yet manageable support rail that resists corrosion, enabling reliable mounting in enclosure backplanes and framing. The combination supports consistent alignment and long service life in rugged environments.
Yes, its stainless steel type 304 finish delivers enhanced corrosion resistance appropriate for many harsh environments, including some outdoor and wash-down areas. While not explicitly certified for outdoor weathering in the catalog, the material choice provides a robust barrier against rusting and deterioration compared with plain steel channels.
The catalog for this item lists Certifications as Not Applicable. Nevertheless, users should verify project-specific regulatory requirements for assemblies and fasteners in their region, and confirm compatibility with any end-use standards relevant to enclosure assemblies and support systems.
The 304 stainless finish and 14 gauge construction reduce corrosion-related maintenance and premature part replacement, lowering lifecycle costs. Its compatibility with standard B-Line hardware and KwikSplice accessories simplifies procurement and field assembly, decreasing labor hours. Over the long term, this translates to higher uptime and lower total cost of ownership for industrial support rails.
