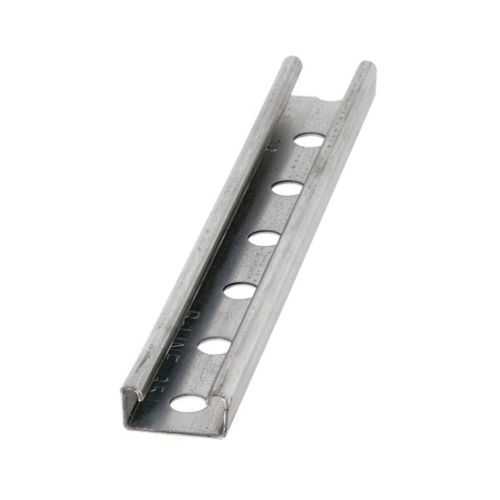

Eaton B54H17/8-240GLV Strut Channel - H178 Pattern
Part Number: B54H17/8-240GLV
Quick Summary
Eaton B54H17/8-240GLV strut channel provides robust support for electrical enclosures in harsh industrial environments. This standard, pre-galvanized channel reduces installation time and alignment issues often caused by custom-fabricated supports. Certifications are Not Applicable for this part, but it follows Eaton's B-Line channel standards and uses 14-gauge steel to deliver reliable strength. The design also ensures compatibility with common accessories and KwikSplice systems, helping projects stay on schedule. In practice, this translates to faster builds, easier maintenance, and scalable layouts for industrial facilities across manufacturing, data centers, and utility infrastructure. Engineers appreciate predictable performance under vibration, load sharing, and simple auditing for compliance. This makes procurement easier and reduces total cost of ownership over the system lifecycle.
Product Information
Extended Description
B54H17/8-240GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Steel, Pre-galvanized, H178, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54H17/8-240GLV
UPC
781011258351
Product Length/Depth
240 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
18.6 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
H178
Finish
Pre-galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54H17/8-240GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 14-gauge steel with a pre-galvanized finish. Business impact: corrosion resistance and long service life in damp environments, reducing maintenance and replacement costs. Application: electrical rooms, outdoor enclosures, and heavy-use racks. Feature: 0.81 in height x 1.62 in width with a 240 in length. Business impact: compact footprint for tight spaces and longer runs without field splices, lowering labor time. Application: mounting frames in confined electrical closets and data-center racks. Feature: Hole pattern H178 and B54 channel type. Business impact: flexible mounting, easier alignment, and broad accessory compatibility. Application: standard hardware integration with channels and supports across industrial facilities. Feature: Compatibility with KwikSplice accessories and splice plates. Business impact: faster installation, fewer field welds, and reduced downtime. Application: rapid assembly in control panels, cable trays, and support structures. Feature: Documentation and data availability (spec sheets, installation instructions). Business impact: reduces procurement risk and accelerates design reviews. Application: project planning, supplier qualification, and maintenance planning. Feature: Weight 18.6 lb and pre-galvanized steel for durability. Business impact: robust load handling with predictable lifecycle costs. Application: medium- to heavy-duty support in mechanical and electrical installations in industrial environments.
Get a Quick Quote for a Eaton B54H17/8-240GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54H17/8-240GLV?
Enquire Now
FAQs
The B54H17/8-240GLV strut channel is fully compatible with KwikSplice splice plates and related fast-assembly accessories. Eaton provides installation sheets and guidelines (CTIS-18/CTIS-19) to simplify field splicing, ensure secure joints, and minimize the need for field welding. This compatibility reduces installation time and improves reliability of mounted systems in electrical and mechanical enclosures.
This part features a 0.81 inch channel height, 1.62 inch width, and a length of 240 inches. It is manufactured from 14-gauge steel and finished in pre-galvanized coating for corrosion resistance. The channel type is B54 with a hole pattern H178, designed for standard accessories and reliable, long-term support in industrial installations.
Best suited for mounting electrical enclosures, machinery supports, and rack systems in manufacturing floors, data centers, and utility rooms. Its long 240 inch length minimizes splices, while the H178 hole pattern provides flexible mounting options. The pre-galvanized finish adds corrosion resistance for outdoor or damp environments and supports a wide range of channel accessories.
According to the data, certifications are Not Applicable for this part. However, it adheres to Eaton's B-Line channel design standards and uses proven 14-gauge steel with a pre-galvanized finish, aligning with common industry practices for steel strut channels and enabling straightforward integration into standard electrical and mechanical installations.
Expect reduced maintenance thanks to the pre-galvanized finish that resists corrosion and extends service life in challenging environments. ROI is driven by faster installation with compatible KwikSplice accessories, less field labor, and fewer joints or welds. The 240 inch length also lowers the number of field cuts, supporting scalable layouts without frequent material handling.
