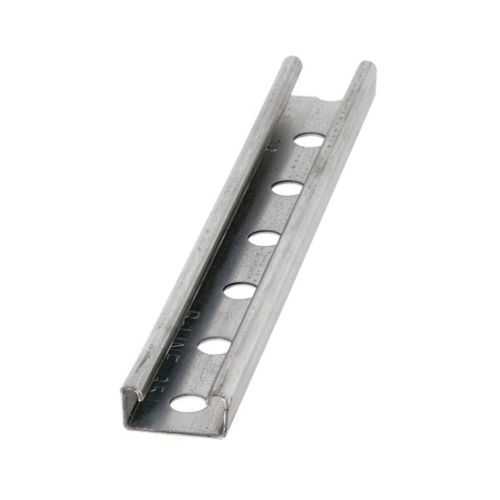

Eaton B-Line strut channel B54H17/8-240GRN - DURA GREEN
Part Number: B54H17/8-240GRN
Quick Summary
Eaton B-Line strut channel is a versatile mounting system for organizing and supporting electrical and mechanical components. In demanding facilities, installers often confront misaligned channels, field adjustments, and corrosion challenges that slow projects and drive costs. This model lists Not Applicable for Certifications, so verify regional requirements if needed; CE, SIL, or IP ratings may vary by region. The DURA GREEN finish combined with 14 gauge steel delivers durable performance, while the 240 inch length and H178 hole pattern enable reliable, scalable configurations. For ongoing operations, this channel adds flexibility and value, supporting easy upgrades and standardized maintenance in core industrial applications.
Product Information
Extended Description
B54H17/8-240GRN Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Steel, DURA GREEN, H178, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54H17/8-240GRN
UPC
781011258252
Product Length/Depth
240 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
18.6 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
H178
Finish
DURA GREEN
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54H17/8-240GRN
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature → Business Impact → Application: 0.81 in height, 1.62 in width, 240 in length provides a stable, predictable mounting footprint for large equipment and cable management, reducing misalignment and rework. This, in turn, improves installation efficiency and long-term reliability for electrical and mechanical systems across manufacturing floors and data centers. Feature → 14 gauge steel with DURA GREEN finish delivers strong corrosion resistance and rigidity, extending service life in typical facility environments and lowering maintenance costs. Feature → Hole pattern H178 enables flexible fixture placement and quicker on-site adjustments, streamlining retrofits and expansions without custom fabrication. Feature → 18.6 lb weight (per 240 in) balances ease of handling with structural integrity, supporting faster handling by installers and reduced labor time. Feature → Compatibility with Eaton B-Line accessories and KwikSplice components supports scalable, modular layouts, minimizing SKU proliferation and simplifying sourcing for procurement teams. Feature → 240 in length minimizes field splices, reducing installation points and improving overall project timelines. Feature → 14 GA steel and robust finish address common objections about durability in industrial installations, delivering confidence for long-term performance.
Get a Quick Quote for a Eaton B54H17/8-240GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54H17/8-240GRN?
Enquire Now
FAQs
To install B54H17/8-240GRN, align the 240 in length channel along the support run and position the H178 hole pattern to match fittings. Use compatible Eaton fasteners and clamps, then level the channel before securing. The 14 gauge steel provides rigidity without excessive weight, and the 0.81 in by 1.62 in profile fits standard strut hardware.
While the data sheet lists Not Applicable for Certifications, the B-Line strut channel uses a durable DURA GREEN finish on 14 gauge steel, offering corrosion resistance suitable for typical industrial environments. Avoid submersion or exposure to aggressive chemicals beyond spec; for harsh outdoor or splash-zone applications, consult Eaton for region-specific guidance and protective coatings.
Certifications for this exact model are listed as Not Applicable in the datasheet. If your project requires CE marking, SIL, or IP ratings, verify with Eaton's regional technical support or review the latest product datasheets and installation guides. In many controlled environments, system compliance is achieved through the overall installation rather than a single component.
What applications benefit most from B54H17/8-240GRN? It's well-suited for electrical distribution frames, cable tray mounting, and equipment supports in manufacturing, data centers, and industrial facilities. The 240 inch length minimizes splices, while the H178 hole pattern provides adjustable alignment for various fittings. Pair with KwikSplice accessories for fast, modular layouts.
From a maintenance and ROI perspective, the 14 gauge steel channel with DURA GREEN finish offers long service life, reducing replacement intervals. Its compatibility with Eaton B-Line accessories allows scalable systems, lowering total cost of ownership through standardized fasteners and common components. In projects with recurring rework, standardizing on this channel shortens commissioning and improves uptime.
