Eaton B54H17/8-240PLN Strut Channel - 14 Gauge Steel
Part Number: B54H17/8-240PLN
Quick Summary
The Eaton B-Line strut channel provides robust mounting support for electrical installations in industrial facilities. Maintenance teams often wrestle with limited hole patterns and time-consuming on-site fabrication, delaying project timelines. While certifications are listed as Not Applicable, this model offers a precise 0.81 in height, 1.62 in width, and 14 gauge steel with an H178 hole pattern for reliable compatibility. At 240 in long and with a plain finish, it integrates smoothly with Eaton’s KwikSplice accessories and other B-Line components, streamlining installation and reducing field labor. For systems that demand flexible routing and durable support, this channel delivers measurable business value across commercial, data center, and manufacturing environments.
Product Information
Extended Description

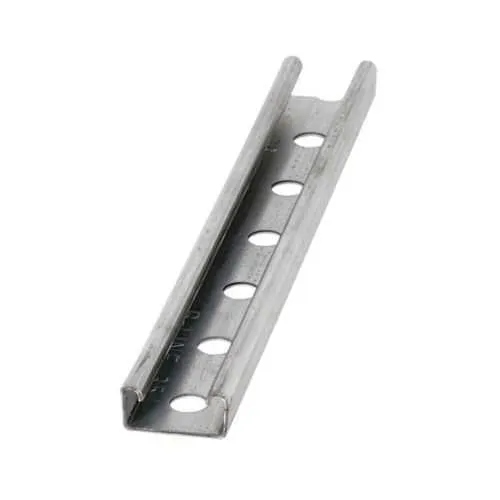

B54H17/8-240PLN Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Steel, Plain, H178, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54H17/8-240PLN
UPC
781011258153
Product Length/Depth
240 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
18.6 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
H178
Finish
Plain
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54H17/8-240PLN
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 14 gauge steel, plain finish. Business Impact: Delivers solid rigidity and a straightforward surface for paint or coatings, reducing fit-up variation across installations. Application: Ideal for heavy electrical and mechanical mounting in industrial spaces where predictable strength matters. Feature: 0.81 in height x 1.62 in width. Business Impact: Provides a compact yet rigid channel profile that fits tight enclosures and crowded cable trays without sacrificing load-bearing capabilities. Application: Useful in ceiling and wall runs where vertical clearance is limited. Feature: 240 in length. Business Impact: Minimizes joints and fittings, speeding long-span installations and cutting field labor costs. Application: Data centers and manufacturing lines where uninterrupted spans are preferred. Feature: Hole pattern H178. Business Impact: Enables standardized mounting with common fasteners and accessories, boosting configurability and repeatability. Application: Compatible with Eaton’s B-Line ecosystem and KwikSplice accessory options. Feature: Channel type B54. Business Impact: Ensures seamless integration with the B-Line family for modular, scalable rack and support systems. Application: Suitable for cable management, support rails, and equipment mounting across industrial facilities. Insight: Long-span channels reduce assembly complexity in planned improvements, while compatibility with installation instructions and catalogs accelerates project takeoffs. Long-term installation efficiency is improved as teams leverage familiar Eaton components and documented best practices.
