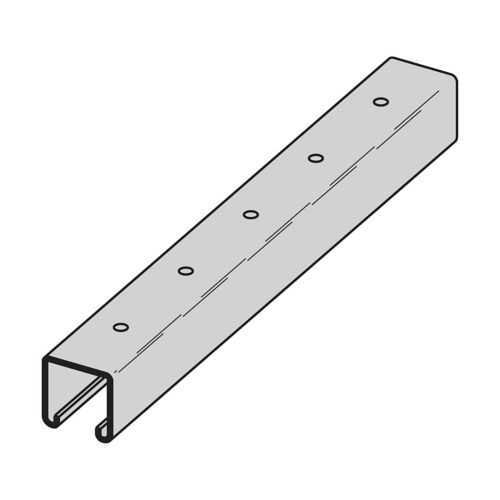

Eaton B54H25-120GLV Strut Channel - 14 Gauge
Part Number: B54H25-120GLV
Quick Summary
Eaton B54H25-120GLV strut channel provides rugged mounting rail for industrial automation installations. Engineers often face project delays from mismatched hardware and finishes that compromise build quality. While this model lists no specific certifications, its 14-gauge steel construction and pre-galvanized finish deliver durable performance in demanding environments. The combination of a 120-inch length, B54 channel type, and H25 hole pattern supports flexible layouts and rapid installation with Eaton accessories. This makes it a cost-effective backbone for electrical and mechanical mounting in control panels, conveyors, and enclosure systems, while compatible with the wider B-Line ecosystem to streamline procurement and maintenance.
Product Information
Extended Description
B54H25-120GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Pre-galvanized, H25, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54H25-120GLV
UPC
782051328615
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
9.3 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
H25
Finish
Pre-galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54H25-120GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 14 gauge steel with pre-galvanized finish. Benefit: Delivers robust structural support and corrosion resistance for long service life in mixed indoor environments. Application: Ideal for control panels and racks where reliability matters and maintenance windows are tight. Feature: 120 inch length with B54 channel type and H25 hole pattern. Benefit: Facilitates flexible layouts and simple attachment of standard hardware, reducing field customization time. Application: Electrical enclosures and industrial automation installations that require modular mounting. Feature: Steel construction with precise dimensions (0.81 in height, 1.62 in width) and weight of 9.3 lb. Benefit: Predictable handling, easy transport, and consistent fit with compatible accessories. Application: Rating across shelving, supports, and cross-members in line with Eaton’s B-Line ecosystem. Feature: Cataloged as B54H25-120GLV with standard UPC 782051328615. Benefit: Easy sourcing and traceability, reducing procurement risk. Application: Projects needing repeatable parts for scalable installations. Feature: Not Applicable Certifications. Benefit: Clear expectations for end-use environments; aligns with typical indoor electrical installations. Application: Office and factory floors where general compliance meets project requirements.
Get a Quick Quote for a Eaton B54H25-120GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54H25-120GLV?
Enquire Now
FAQs
The B54H25-120GLV strut channel is designed for use with Eaton B-Line strut channel accessories and standard mounting hardware. Its 120 inch length, B54 channel type, and H25 hole pattern enable flexible layouts in control panels, enclosures, conveyors, and general electrical/mechanical mounting.
With 14 gauge steel, a pre-galvanized finish, and a full 120 inch length, this channel reduces field modification and corrosion concerns while offering ready-to-mount compatibility with Eaton accessories. The standardized hole pattern speeds attachment, shortens assembly time, and supports scalable rack and enclosure designs.
The B54H25-120GLV uses a pre-galvanized steel finish, which provides baseline corrosion resistance for indoor and covered environments. For exterior exposure or aggressive environments, consider protective coatings or alternative finishes and site-specific guidance from Eaton to ensure long-term performance.
Key specs include catalog number B54H25-120GLV, channel type B54, hole pattern H25, length 120 inches, height 0.81 inches, width 1.62 inches, weight 9.3 pounds, finish pre-galvanized, material steel, and gauge 14. The UPC is 782051328615, aiding procurement and inventory control.
You can access Eaton’s technical resources including the Specification Sheet for B54H25-120GLV and the Strut Channel identification overview. Official PDFs are available via Eaton’s product support pages and catalogs linked in the product assets.
