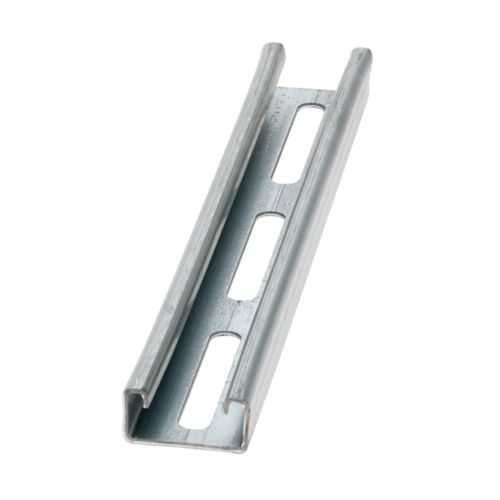

Eaton B54S-120HDG Strut Channel - Hot-Dipped Galvanized
Part Number: B54S-120HDG
Quick Summary
Eaton B54S-120HDG Strut Channel enables flexible support structures for electrical and mechanical installations. When projects demand corrosion resistance and quick installs, this channel helps reduce field rework and inventory complexity. Certifications are listed as Not Applicable for this model, while its hot-dipped galvanized finish and 14-gauge steel construction meet common industry expectations for durability. Designed to integrate with standard fittings and the B-Line ecosystem, it supports scalable infrastructure while keeping installation straightforward. This combination delivers value for engineers and procurement teams seeking reliable, long-lasting channel solutions that fit seamlessly into existing Eaton portfolios.
Product Information
Extended Description
B54S-120HDG Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Hot-dipped galvanized, S, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54S-120HDG
UPC
781011845452
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
8.9 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
S
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54S-120HDG
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
The B54S-120HDG features a 0.81 inch height and 1.62 inch width with a 120 inch length, constructed from 14-gauge steel and finished in hot-dipped galvanized coating. This provides superior corrosion resistance and a robust carrying capacity, reducing maintenance costs and downtime on demanding plant floors. By employing the S hole pattern in a B54 channel type, it ensures compatibility with a wide range of fittings and accessories, accelerating assembly times and enabling modular routing of cables and equipment. With an 8.9 lb weight, it remains manageable for on-site handling, bolstering field productivity while preserving structural integrity under load. The result is a durable, maintenance-friendly solution that aligns with industry standards for steel strut channels and supports quick project turnarounds. The Eaton B-Line system is designed for scalable installations, improving inventory management and reducing part variety across facilities. Long-term asset performance is enhanced by consistent, proven workmanship and a familiar Eaton catalog of brackets, splices, and supports.
Get a Quick Quote for a Eaton B54S-120HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54S-120HDG?
Enquire Now
FAQs
B54S-120HDG uses the common B-Line strut channel dimensions and S hole pattern, ensuring compatibility with Eaton-branded fittings, brackets, and splice plates. Its 14-gauge steel construction and 0.81 by 1.62 inch profile fit standard mounting applications, enabling straightforward integration with existing support systems without custom adapters. Always verify compatibility with the specific fasteners and accessories used in your project for optimal performance.
The B54S-120HDG is 120 inches long, with a height of 0.81 inches and a width of 1.62 inches. It is manufactured from 14-gauge steel and weighs approximately 8.9 pounds per piece. These specifications support predictable load handling and ease of transport on job sites, helping to plan cuts, supports, and connections accurately.
Yes, the B54S-120HDG uses hot-dipped galvanized coating on steel, providing enhanced corrosion resistance suitable for many outdoor or damp environments often encountered in industrial facilities. While not offering explicit certifications, the finish and material choice are aligned with typical durability expectations for exterior or harsh indoor applications, helping extend service life and reduce maintenance.
This model lists Certifications as Not Applicable in the provided data. While no specific certifications are indicated, the channel adheres to Eaton’s standard material, finish, and design specifications for B-Line strut systems. Confirm project-specific regulatory requirements with your procurement team to ensure alignment with local codes and end-use conditions.
Using the B54S-120HDG delivers durability and modularity with a 14-gauge galvanized steel profile that resists corrosion, reduces maintenance intervals, and extends asset life. Its 120 inch length and S hole pattern enable rapid, repeatable mounting with common fittings, improving installation speed, inventory standardization, and lifecycle cost efficiency across industrial facilities.
