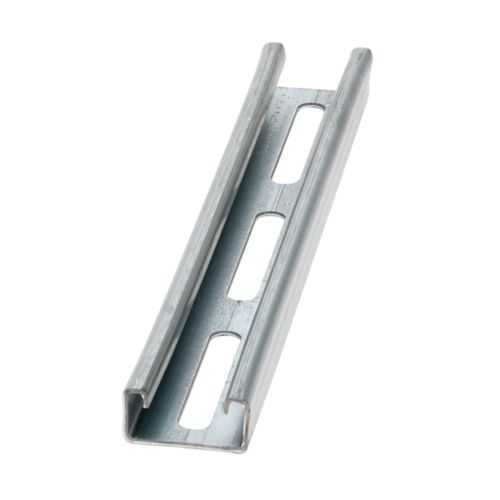

Eaton B54S-120SS6 Strut Channel - Stainless 316 14 Gauge
Part Number: B54S-120SS6
Quick Summary
Eaton B-Line strut channel enables modular framing for electrical and mechanical installations across automation projects. When space is tight and corrosion is a risk, teams struggle to build robust frames quickly without frequent replacements. Although certifications are not listed for this part, the 316 stainless finish and 14-gauge steel deliver durable performance in challenging environments. This makes it a practical choice for panel supports, machine mounts, and support structures, while remaining compatible with common fittings and installation tools. By leveraging the 120 inch length, installers can reduce joints and speed up commissioning, delivering measurable ROI for automation and electrical infrastructure projects.
Product Information
Extended Description
B54S-120SS6 Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Stainless steel type 316, S, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54S-120SS6
UPC
799038687061
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
8.9 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
S
Finish
Stainless steel type 316
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
Aluminum and Stainless Steel Materials Catalog Section
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54S-120SS6
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Stainless steel 316 finish delivers superior corrosion resistance, extending service life in washdown and outdoor environments. This translates to lower maintenance costs and reduced downtime on critical automation equipment, while keeping framing integrity under frequent cleaning cycles. The 14-gauge steel provides robust load support for panels, enclosures, and mounting hardware, enabling reliable operation in busy industrial settings. A 120 inch length minimizes field joints, speeding up installation and reducing labor time for large-scale projects. The B54 channel type with S hole pattern ensures compatibility with Eaton KwikSplice splice plates and standard fittings, simplifying stocking and procurement. This integration with the B-Line ecosystem means technicians can mix and match components quickly, backed by Eaton’s installation instructions and catalog guidance. Overall, the combination supports faster project timelines, better system rigidity, and improved lifecycle value for industrial framing in automation environments.
Get a Quick Quote for a Eaton B54S-120SS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54S-120SS6?
Enquire Now
FAQs
Installation is straightforward thanks to the S hole pattern and the common B-line channel design. The 0.81 in height, 1.62 in width, and 120 in length allow long, single-span runs with minimal joints. KwikSplice instruction sheets provide step-by-step guidance for fast, secure splices and clean assembly.
The 14 gauge stainless steel (type 316) and corrosion-resistant finish deliver durable framing for electrical and mechanical equipment. This reduces maintenance needs, extends service life in challenging environments, and supports quick reconfiguration of layouts for changing automation requirements.
Yes. The type 316 stainless finish provides excellent corrosion resistance and cleaning compatibility, making it well-suited for outdoor or washdown areas. The long 120 in length minimizes joints, enhancing reliability in exposed environments while supporting robust equipment mounting.
Certifications for this part are listed as Not Applicable. For projects requiring formal compliance, consult the latest Eaton Specification Sheets and catalog sections to confirm alignment with relevant standards, and verify with your internal compliance team before procurement.
The full-length 120 in channel reduces field joints and accelerates installation, while the corrosion-resistant stainless finish lowers maintenance downtime. Compatibility with Eaton accessories and catalogs simplifies procurement, leading to faster commissioning, fewer replacements, and lower total cost of ownership in industrial framing and automation infrastructure.
