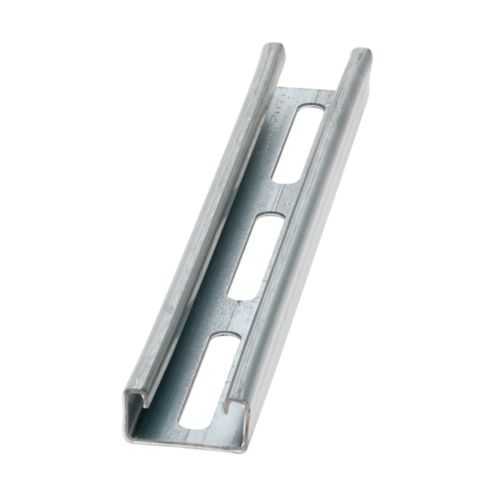

Eaton B54S-240GLV Strut Channel - 14 Gauge
Part Number: B54S-240GLV
Quick Summary
Eaton B54S-240GLV Strut Channel provides modular support for electrical and mechanical installations in industrial facilities, enabling clean, scalable mounting along racks, enclosures, and equipment frames. Engineers often struggle with compatibility, corrosion resistance, and installation speed when upgrading racks or control panels, leading to project delays and higher labor costs. Certifications listed for this SKU are Not Applicable; verify local codes and sector requirements as needed to ensure compliance in critical environments. This solution uses pre-galvanized steel at 14 gauge and a long 240 inch length to reduce field splices, speed installations, and support sustained loads over time. Pair this with compatible B-line accessories for streamlined system integration.
Product Information
Extended Description
B54S-240GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Steel, Pre-galvanized, S, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54S-240GLV
UPC
781011259358
Product Length/Depth
240 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
17.8 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
S
Finish
Pre-galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54S-240GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 0.81 inch height, 1.62 inch width, 240 inch length, 14 gauge steel, and a pre-galvanized finish. Business Impact: Delivers rigid, durable support with corrosion resistance, reducing maintenance cycles and replacement costs. Application: Ideal for long-span mounting of electrical and mechanical components in control panels, racks, and enclosures. Feature: Channel type B54 with S hole pattern. Business Impact: Enhances compatibility with a broad range of accessories and splice components, enabling flexible layouts and quicker reconfiguration. Application: Common in industrial plant installations where modularity and reusability matter. Feature: 17.8 lb weight and heavy-wall construction. Business Impact: Balances robust load capacity with manageable handling during installation, minimizing field fatigue and safety risks. Application: Suitable for overhead supports and mounting lighter to mid-weight equipment in constrained spaces. Feature: Material/Finish—steel with pre-galvanized coating. Business Impact: Improves corrosion resistance in typical manufacturing environments, extending service life and reducing repainting costs. Application: Environments with humidity or incidental moisture exposure. Feature: Documentation and compatibility—references to KwikSplice accessories and catalog sections. Business Impact: Streamlines procurement and on-site assembly, lowering total installation time and enabling standardized practices. Application: Factory floors and data centers where standardized mounting channels are deployed across multiple zones. Feature: Length and termination flexibility—240 in continuous runs minimizes field splices. Business Impact: Reduces material waste and installation labor, delivering faster project turnover. Application: Large-scale installs along perimeters, overhead runs, or long cable trays in industrial facilities.
Get a Quick Quote for a Eaton B54S-240GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54S-240GLV?
Enquire Now
FAQs
Yes. The B54S-240GLV is compatible with KwikSplice splice components and related accessories. The catalog and installation sheets for KwikSplice splices provided by Eaton support quick, secure connections, reducing field labor and enabling faster assembly in medium-to-large installs.
Key specs include 0.81 in height, 1.62 in width, 240 in length, and 14 gauge steel with a pre-galvanized finish. The B54 channel type with S hole pattern supports modular mounting, while the 17.8 lb weight emphasizes durability without overburdening handling during installation.
This strut channel excels in industrial facilities for mounting electrical and mechanical components along racks, enclosures, and control panels. Its long length reduces field splices, making it suitable for overhead runs, cable management, and equipment supports in manufacturing and data center environments.
In this listing, Certifications are marked Not Applicable. As always, verify local regulatory codes and project specifications to ensure your installation meets all required standards.
The 240 in continuous length reduces joints, lowering labor and material costs. Compatibility with standard B-line accessories and catalogs enables standardized layouts, faster commissioning, and easier future reconfigurations, contributing to lower total cost of ownership over the system lifecycle.
