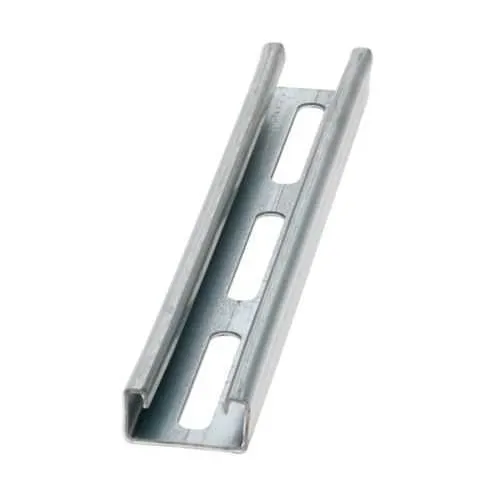

Eaton B54S-72GRN Strut Channel - DURA GREEN, 14 Gauge
Part Number: B54S-72GRN
Quick Summary
The Eaton B54S-72GRN Strut Channel provides versatile mounting support for electrical and mechanical runs in control panels, enclosures, and equipment racks. Projects often struggle with tight spaces, misaligned hardware, and coatings that fail in damp or dusty environments. Certifications on this product record are Not Applicable, but the design leverages standard B-Line components and proven steel construction to support common industry practices. Coupled with a durable DURA GREEN finish and a 72 in length, this channel delivers reliable load support, faster installation, and longer service life in demanding industrial applications, while keeping maintenance costs down. This makes it a practical backbone for modular, scalable electrical and mechanical support systems.
Product Information
Extended Description
B54S-72GRN Eaton: Eaton B-Line series strut channel, 0.81" H x 72" L x 1.62" W, Steel, DURA GREEN, S, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54S-72GRN
UPC
781011832353
Product Length/Depth
72 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
5.34 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
S
Finish
DURA GREEN
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54S-72GRN
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: DURA GREEN finish on 14 Gauge steel. Business Impact: Exceptional corrosion resistance reduces maintenance cycles and extends service life in damp or dusty industrial settings. Application: Install on B54S-72GRN to protect rails around panels, cable trays, and mounting brackets in control rooms. Industry context: The choice of finish aligns with Eaton's long-standing emphasis on durable, serviceable infrastructure. Feature: 0.81 in height and 1.62 in width with 72 in length. Business Impact: Higher rigidity and load-bearing capability reduce sag and misalignment across long spans. Application: Supports heavy electrical gear and modular components along assemblies in manufacturing lines and data centers. Engineering note: The standard 14 Gauge steel provides predictable bending performance and compatibility with common fasteners. Feature: B54 channel type with S hole pattern. Business Impact: Compatibility with a broad catalog of inserts, brackets, and fasteners streamlines procurement and reduces on-site customization. Application: Ideal for modular rack assemblies in new builds and retrofit projects, enabling repeatable layouts across multiple rooms. Industry tip: Leverage the S hole pattern to align with existing mounting grids. Feature: Ecosystem compatibility with Eaton KwikSplice and related hardware. Business Impact: Quick-connect splices and accessories lower installation time and labor costs. Application: Create robust cable-management paths and support structures with fewer parts and faster revisions. Feature: 72 in length as standard option. Business Impact: Fewer field joints translate into faster construction schedules and lower inventory complexity. Application: Useful for sprawling control rooms, machine halls, and enclosure rows where continuous uninterrupted rails improve workflow. Maintenance insight: The durable steel and coating resist wear, reducing the frequency of replacements over the system lifespan.
Get a Quick Quote for a Eaton B54S-72GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54S-72GRN?
Enquire Now
FAQs
Install the B54S-72GRN using standard B-Line strut channel hardware, aligning with the S hole pattern for brackets, splices, and fasteners. Cut to length as needed, then secure with compatible bolts or KwikSplice accessories. The 72 in length minimizes joints and reduces on-site assembly steps, supporting faster project completion while maintaining robust support for mounted equipment.
Key specs include 14 Gauge steel, 0.81 in height, 1.62 in width, and a 72 in length with an S hole pattern. The weight is approximately 5.34 lb, and the finish is DURA GREEN. These dimensions translate to reliable load performance and rigidity across long spans, supporting heavy components and reducing sag in control panels and cable-management runs.
The DURA GREEN finish provides enhanced corrosion resistance for typical indoor industrial environments. For outdoor or highly corrosive conditions, evaluate environmental exposure and maintenance plans, and consider additional protective measures or enclosure-rated solutions. The B54S-72GRN is designed to integrate with standard B-Line hardware, offering reliable indoor performance in most plant and data-center settings.
Certifications listed for this specific record are Not Applicable. For regulatory or standards compliance, refer to Eaton’s official datasheet and installation guides (for example, the Eaton Specification Sheet - B54S-72GRN) to confirm alignment with relevant industry standards and project requirements.
The DURA GREEN coating offers improved corrosion resistance, reducing repainting and replacement frequency compared to plain steel channels. This translates to lower maintenance costs, longer service life, and greater reliability for installed systems in manufacturing plants and control rooms, delivering a favorable return on investment through reduced downtime and less frequent part replacements.
