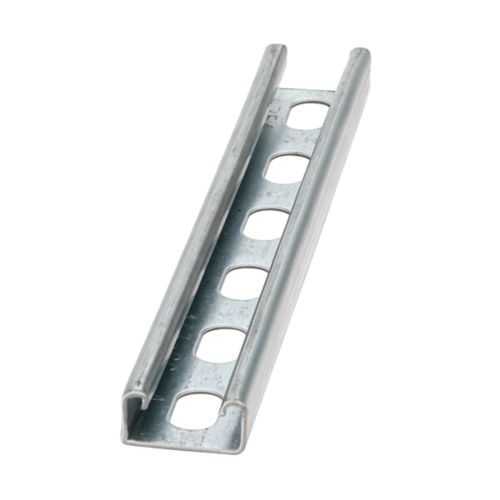

Eaton B54SH-144GLV Strut Channel - 14 Gauge
Part Number: B54SH-144GLV
Quick Summary
Eaton B54SH-144GLV strut channel is a robust mounting solution designed for industrial electrical and mechanical assemblies. It provides solid support for racks, enclosures, and overhead runs with long service life. Engineers often wrestle with corrosion, misalignment, and component incompatibilities, especially in high-density installations; this channel's pre-galvanized steel and precise SH hole pattern simplify alignment and reduce maintenance. While the data lists Certifications as Not Applicable, many projects rely on standard industry practices and the B-Line family to meet a wide range of approvals; consult the official datasheet for CE, IP, or SIL requirements where applicable. Using this channel alongside Eaton fittings offers predictable performance, fast installation, and consistent, repeatable results for scalable infrastructure projects.
Product Information
Extended Description
B54SH-144GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 144" L x 1.62" W, Steel, Pre-galvanized, SH, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54SH-144GLV
UPC
782051243833
Product Length/Depth
144 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
10.92 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
SH
Finish
Pre-galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54SH-144GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 14 Gauge steel construction provides high strength and dependable load support. Impact: minimizes deflection under heavy equipment and dynamic loads, extending the life of cable tray and equipment installations. Application: ideal for industrial electrical and mechanical supports in manufacturing facilities and data centers. Feature: Pre-galvanized finish enhances corrosion resistance in humid or damp environments. Impact: reduces maintenance costs and downtime in rugged facilities. Application: suitable for indoor, semi-outdoor, or damp environments where longevity matters. Feature: SH hole pattern and B54 channel type ensure compatibility with standard fasteners and Eaton accessories. Impact: simplifies mounting, reduces installation time, and improves alignment accuracy. Application: integrates smoothly with trapeze fittings and B-Line components for modular builds. Feature: 144 inch continuous length minimizes field splicing and custom cutting, accelerating project timelines. Impact: lowers labor hours and waste while ensuring consistent channel runs. Application: ideal for long-span supports across racks, ceilings, and industrial enclosures. Feature: 0.81 inch height and 1.62 inch width create a compact yet sturdy cross-section for tight installations. Impact: enables clean, space-efficient routing of cables and fixtures. Application: fits in restricted ceiling plenums and between supports where space is at a premium.
