Eaton B54SH-240AL Strut Channel - Aluminum 14 Gauge
Part Number: B54SH-240AL
Quick Summary
Eaton B54SH-240AL strut channel provides modular support for electrical and mechanical systems in medium to large enclosures. This solution addresses the common challenge of adapting mounting paths to changing layouts without sacrificing rigidity. Certifications for this specific model are listed as Not Applicable, which reflects its product designation rather than a lack of compliance. The aluminum, 14-gauge channel delivers a lightweight yet sturdy backbone for racks, panels, and accessory fittings. By leveraging this B-Line series channel, engineers can streamline procurement, reduce field rework, and shorten installation timelines while maintaining robust support for evolving systems. The result is a more flexible, cost-efficient pathway to reliable infrastructure.
Product Information
Extended Description

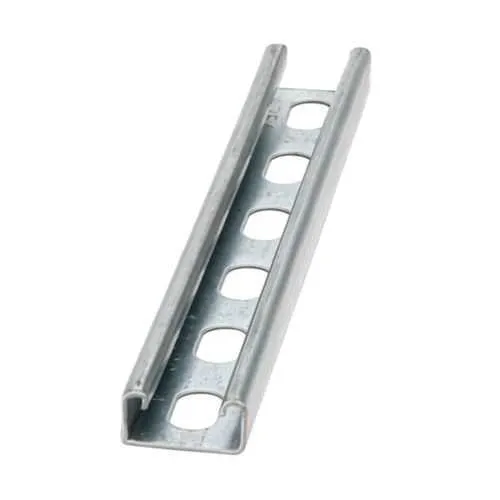

B54SH-240AL Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Aluminum, SH, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54SH-240AL
UPC
781011257453
Product Length/Depth
240 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
18.2 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
SH
Material
Aluminum
Material gauge
14 Gauge
Strut Channel Identification Overview
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B54SH-240AL
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: Aluminum construction yields corrosion resistance and a lighter overall weight → Business Impact: easier handling during on-site assembly and reduced labor fatigue → Application: field mounting in harsh environments where weight savings matter. Feature: 0.81 in height and 1.62 in width create a compact profile → Business Impact: enables tight layouts and denser mounting in control panels → Application: retrofits and new builds with limited space. Feature: 14 Gauge material gauge provides robust load capacity for typical B-Line applications → Business Impact: supports multiple brackets and fittings without deformation → Application: mounting electrical and mechanical components in enclosures. Feature: SH hole pattern and B54 channel type offer versatile attachment points → Business Impact: simplifies alignment and reduces drilling or drilling-induced damage → Application: compatibility with KwikSplice and standard fittings for fast assembly. Feature: 240 in length and total weight of 18.2 lb enable long spans with manageable handling → Business Impact: minimizes interval joins and supports modular expansions → Application: long-run supports for cable trays, panels, and equipment racks. Feature: Compatibility with standard accessories and Eaton catalogs enhances installation versatility → Business Impact: streamlines procurement and ensures consistent performance across jobsites → Application: broad adoption in commercial and industrial installations, improving project timelines.
