Eaton B54SH-40HDG Strut Channel - Hot-Dipped Galvanized
Part Number: B54SH-40HDG
Quick Summary
Eaton B-Line strut channel provides sturdy support for electrical and mechanical installations in data centers, panels, and industrial enclosures. In crowded installations, precise alignment and a corrosion-resistant finish cut maintenance time and reduce rework during upgrades. Certifications are Not Applicable for this SKU; the channel utilizes hot-dipped galvanized steel and 14 gauge construction to withstand harsh environments. Its 40 inch length, compact 0.81 inch height, and 1.62 inch width offer flexible mounting alongside KwikSplice accessories and a broad range of enclosure designs. The B54 channel supports standardized fittings, improving procurement leverage by pairing with Eaton's full line catalog and installation guides.
Product Information
Extended Description

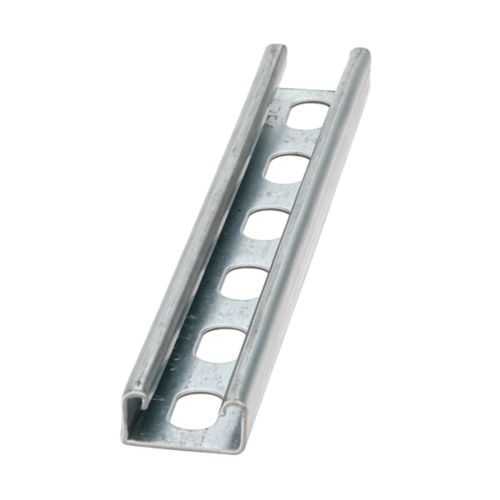

B54SH-40HDG Eaton: Eaton B-Line series strut channel, 0.81" H x 40" L x 1.62" W, Steel, Hot-dipped galvanized, SH, 14 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B54SH-40HDG
UPC
799038783169
Product Length/Depth
40 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
3.03333333 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
SH
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
14 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B54SH-40HDG
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
The B54 channel type SH hole pattern combined with 14 gauge steel provides robust load-bearing capacity, enabling secure mounting of electrical gear and support rails while reducing the need for frequent rework. This translates to faster installation timelines and improved long-term reliability in industrial facilities. The hot-dipped galvanized finish delivers superior corrosion resistance, lowering maintenance costs and extending service life in damp or harsh environments. With a 40 inch length and standard 0.81 inch by 1.62 inch footprint, installers gain layout flexibility for confined spaces and complex rack designs, while staying compatible with a wide range of fittings and accessories. Compatibility with Eaton Strut Channel accessories and comprehensive datasheets simplifies procurement and field assembly, reducing vendor fragmentation and stock-keeping requirements. Industry practitioners appreciate the proven performance of B-Line strut channels for modular builds, enabling scalable infrastructure that supports evolving electrical and mechanical loads without rework.
