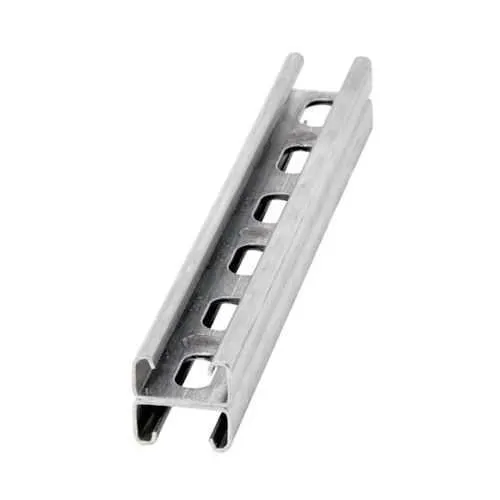

Eaton B54SHA-120GLV Back-to-Back Strut Channel - SHA
Part Number: B54SHA-120GLV
Quick Summary
The Eaton B-Line series strut back-to-back welded channel provides a robust mounting rail for electrical and data cable runs. As projects scale, compatibility with existing hardware and corrosion resistance can slow installation; this pre-galvanized steel solution is designed for fast, reliable assembly. Certifications for this item are Not Applicable, but it aligns with standard B-Line channel designs and common installation practices. With a 120 in length, 0.81 in height, and 1.62 in width, it enables flexible, space-efficient layouts for supports, branching, and equipment mounting across commercial and light industrial environments.
Product Information
Extended Description
B54SHA-120GLV Eaton: Eaton B-Line series strut back-to-back welded channel, 0.81" H x 120" L x 1.62" W, Steel, Pre-galvanized, SHA, 14 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B54SHA-120GLV
UPC
781011833503
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
18.2 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
SHA
Finish
Pre-galvanized
Material
Steel
Material gauge
14 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B54SHA-120GLV
Dura-Green finish overview
Feature: 120 in length and 14 gauge steel provide long-span rigidity for continuous mounting runs. Business Impact: Fewer splice points reduce labor, minimize field errors, and speed installation. Application: Data centers, manufacturing lines, and electrical rooms benefit from reliable, uninterrupted supports. Feature: Pre-galvanized steel finish delivers corrosion resistance for indoor environments and long service life. Business Impact: Lower maintenance costs and reduced repainting or protective coating needs over the system lifetime. Application: Cable trays, mounting frames, and support rails in warehouses and controlled environments. Feature: SHA hole pattern enables versatile hardware mounting. Business Impact: Quick accessory changes and fewer field modifications accelerate project timelines. Application: Mounting clamps, brackets, and fittings across Eaton B-Line compatible systems in electrical rooms and data centers. Feature: Back-to-back welded channel construction supports double-sided mounting. Business Impact: Doubles capacity without adding parts, simplifying installation. Application: Dual-rail frames for equipment supports, overhead runs, and rack-integrated systems. Feature: Channel type B54 compatibility with standard Eaton accessories. Business Impact: Streamlines procurement and ensures consistent performance across projects. Application: Retrofit or new installations in commercial buildings, manufacturing plants, and industrial facilities. Feature: 18.2 lb weight balances strength with manageable handling. Business Impact: Easier lifting, alignment, and on-site installation, reducing crew fatigue. Application: Wall- or ceiling-mounted runs where space and manpower are limited.
Get a Quick Quote for a Eaton B54SHA-120GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54SHA-120GLV?
Enquire Now
FAQs
The B54SHA-120GLV uses the SHA hole pattern and is designed for seamless compatibility with Eaton B-Line strut channel accessories, clamps, and fittings. This enables quick hardware swaps and consistent performance across retrofit or new installations, reducing procurement delays and ensuring reliable mounting across data centers, electrical rooms, and industrial spaces.
Key specifications include 120 inches in length, 0.81 inches in height, 1.62 inches in width, and a 14-gauge steel construction with a pre-galvanized finish. The channel type is B54 and the hole pattern is SHA, making it suitable for versatile, code-compliant mounting in commercial and light-industrial applications.
The B54SHA-120GLV uses a pre-galvanized finish intended for indoor or controlled environments. For outdoor or highly corrosive settings, consider additional protective coatings or a different finish variant in the Eaton line, such as Dura-Green, to maximize environmental resistance.
The SHA hole pattern allows flexible hardware placement without custom drilling, reducing field modification time and easing alignment. Combined with the back-to-back welded design, crews can establish robust routes quickly, improving project timelines in data centers and plant floors.
Weighing 18.2 lb, the B54SHA-120GLV balances strength with manageable handling. For safer lifting and alignment, use standard hoisting practices, ergonomic lifting techniques, and compatible lifting tools when installing longer spans or overhead configurations.
