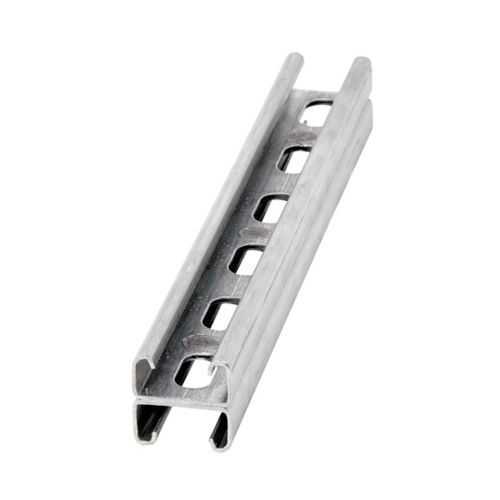

Eaton B54SHA-120GRN Strut Channel Back-to-Back - 14 Gauge
Part Number: B54SHA-120GRN
Quick Summary
Eaton B54SHA-120GRN strut channel provides a rugged back-to-back mounting backbone for electrical and mechanical installations. Engineers often struggle with field-adjustable, corrosion-resistant mounts that can handle heavy loads during retrofits. Note that this model lists Not Applicable certifications on its catalog page; confirm CE, IP, and SIL requirements for your region if needed. Built with steel, finished in DURA GREEN, and offered in 14 gauge, it supports modular Eaton accessories for faster, cost-effective installations. The combination of durable construction and standardized channel dimensions helps streamline procurement and maintenance workflows.
Product Information
Extended Description
B54SHA-120GRN Eaton: Eaton B-Line series strut back-to-back welded channel, 0.81" H x 120" L x 1.62" W, Steel, DURA GREEN, SHA, 14 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B54SHA-120GRN
UPC
781011845568
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
18.2 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
SHA
Finish
DURA GREEN
Material
Steel
Material gauge
14 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B54SHA-120GRN
Dura-Green finish overview
Feature → Business Impact → Application: Back-to-Back welded channel provides superior rigidity and evenly distributed load capacity, reducing deflection and the need for supplemental bracing in dense rack layouts. This translates to safer, more reliable installations and lower maintenance costs in data centers, manufacturing floors, and service bays. Application-wise, it supports modular components from the Eaton B-Line system for quick reconfiguration and future expansion.Feature → Business Impact → Application: 14 Gauge steel with DURA GREEN finish delivers strong environmental resistance without added weight, extending service life in busy plant environments. This finish helps resist corrosion from incidental exposure and minor washdowns, boosting uptime in warehouses and assembly lines.Feature → Business Impact → Application: SHA hole pattern aligns with a broad range of accessories, enabling fast, tool-efficient mounting of cables, panels, and supports. Practitioners gain installation velocity and consistent hardware compatibility across Eaton’s channel and accessory ecosystem, reducing sourcing complexity on large projects.Feature → Business Impact → Application: 120 in length with 0.81 in height and 1.62 in width creates a modular backbone suitable for long runs and tight spaces alike. This geometry minimizes splice points and accelerates layout planning, improving project timelines in electrical distribution, mechanical supports, and data-center racks.Feature → Business Impact → Application: Noting catalog specifications and a clear SKU (B54SHA-120GRN) simplifies procurement and BOM alignment. Engineers can confidently align with existing B-Line components and leverage Eaton’s official datasheets and catalogs for compliant, repeatable installations.Feature → Business Impact → Application: The overall package delivers installation efficiency, predictable performance, and lower lifecycle costs by enabling standardization across facilities, reducing field engineering time and speeding up retrofits with ready-to-install channel segments.
Get a Quick Quote for a Eaton B54SHA-120GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54SHA-120GRN?
Enquire Now
FAQs
The B54SHA-120GRN is designed for use with Eaton B-Line strut channel systems and shares the SHA hole pattern for broad accessory compatibility. It integrates with other B-Line components such as brackets, fasteners, and cross members, enabling rapid, modular assemblies. For best results, reference Eaton’s channel catalog and specification sheets to confirm compatible fittings and load ratings for your specific installation, whether electrical panels, mechanical supports, or data-center racks.
Key specifications include catalog number B54SHA-120GRN, length 120 in, height 0.81 in, width 1.62 in, weight 18.2 lb, material steel with a DURA GREEN finish, and 14 gauge. The SHA hole pattern enables wide accessory compatibility. Plan for back-to-back mounting if required by your layout and confirm project BOM alignment with these dimensions to ensure a proper fit and load distribution.
The B54SHA-120GRN features a DURA GREEN finish on steel, which provides improved resistance to corrosion in typical indoor industrial settings. For outdoor or highly corrosive environments, verify regional standards and consider additional protective measures or coatings. Always consult the Eaton specification sheet for environmental suitability and potential system-level protections before deployment.
Industries such as manufacturing, data centers, and process facilities benefit from the B54SHA-120GRN thanks to its robust 14-gauge steel construction, modularity with Eaton accessories, and long 120 in runs. It supports electrical, mechanical, and cybersecurity-ready mounting schemes, enabling scalable rack and support structures that reduce installation time, improve reliability, and simplify future reconfigurations.
Using the B54SHA-120GRN improves maintenance efficiency by delivering standardized, modular channel sections that fit a wide accessory ecosystem, minimizing custom fabrications. The DURA GREEN finish enhances durability, reducing repainting and corrosion-related downtime. Over time, this translates to lower lifecycle costs, faster retrofits, and a higher return on investment through consistent, repeatable installations.
