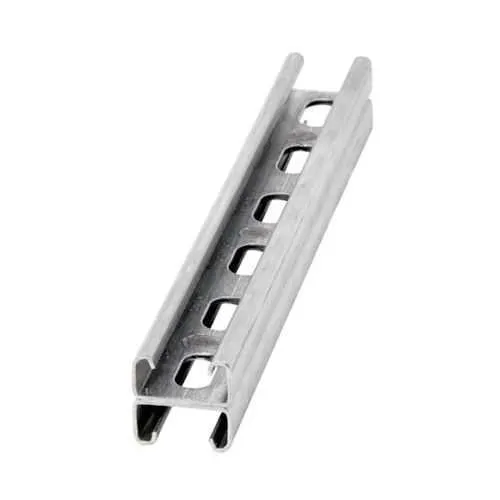

Eaton B54SHA-120SS6 Strut Channel - Stainless 316
Part Number: B54SHA-120SS6
Quick Summary
Eaton B54SHA-120SS6 strut back-to-back welded channel provides a durable mounting framework for electrical and mechanical installations. It addresses common pain points like misalignment, corrosion exposure, and extended installation times by delivering a rigid backbone for equipment support. Although explicit certifications such as CE, SIL, or IP ratings are not listed for this model, the stainless steel type 316 finish offers superior corrosion resistance for challenging environments. This combination supports faster installation, lower maintenance costs, and longer service life, while seamlessly integrating with other B-Line series components to optimize project timelines and overall reliability.
Product Information
Extended Description
B54SHA-120SS6 Eaton: Eaton B-Line series strut back-to-back welded channel, 0.81" H x 120" L x 1.62" W, Steel, Stainless steel type 316, SHA, 14 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B54SHA-120SS6
UPC
782051217292
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
18.2 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
SHA
Finish
Stainless steel type 316
Material
Steel
Material gauge
14 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B54SHA-120SS6
Dura-Green finish overview
Feature: 120 in product length and 0.81 in height with 1.62 in width in 14 gauge steel. Business Impact: Reduces the number of joints needed on long spans, improving structural integrity and minimizing field fabrication. Application: Ideal for long-run cable management and equipment supports in data centers and manufacturing lines. Feature: Back-to-back welded channel design. Business Impact: Delivers enhanced rigidity and uniform load distribution, enhancing safety and performance under dynamic loads. Application: Suitable for mounting heavy equipment and supporting power distributions along wide rack systems. Feature: SHA hole pattern for precise fastener alignment. Business Impact: Improves installation speed and reduces misalignment rework, cutting downtime and labor costs. Application: Quick retrofits and modular installations across shop floors and control rooms. Feature: Stainless steel type 316 finish. Business Impact: Delivers excellent corrosion resistance in damp, washdown, or outdoor environments, extending component life. Application: Harsh industrial facilities, food processing, and marine-adjacent installations. Feature: Compatibility with Eaton B-Line system accessories. Business Impact: Streamlines procurement and inventory, enabling plug-and-play integration with existing components and reducing total project risk. Application: Retrofit projects and new builds that require scalable upgrade paths. Objection handling: While stainless options can carry a premium, the long-term lifecycle cost is lower due to reduced maintenance, fewer replacements, and fewer interruptions caused by corrosion or misalignment. This makes the B54SHA-120SS6 a smart choice for critical, high-uptime installations.
Get a Quick Quote for a Eaton B54SHA-120SS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54SHA-120SS6?
Enquire Now
FAQs
To configure back-to-back, align the SHA hole pattern on each channel, join using compatible fasteners, and ensure uniform clamping along the 120 in length. Compatible components include Eaton B-Line strut channel accessories, end fittings, and standard fasteners designed for 14 gauge steel with 316 finish. Verify load requirements and torque specifications for your specific installation.
The SHA hole pattern ensures precise alignment and consistent fastener spacing, which reduces installation time and misalignment risk. This translates to improved load distribution, safer mounting of heavy equipment, and less rework on long spans—critical for data centers, manufacturing lines, and utility rooms where reliability matters.
Yes, the 316 stainless finish provides superior corrosion resistance, making it suitable for damp, washdown, or outdoor-adjacent installations. Designers should still consider site-specific exposure and ensure protection strategies match the environment, but this channel is engineered to maintain performance in aggressive conditions.
The data for this model lists Certifications as Not Applicable. While no explicit CE, SIL, or IP ratings are stated, the 316 stainless finish supports corrosion resistance essential for many compliance scenarios. Always validate with local or project-specific standards and consider additional OEM-tested options if formal certification is required.
Retrofits benefit from faster installation due to the SHA pattern, fewer joints due to the long 120 in spans, and reduced maintenance costs thanks to stainless 316 corrosion resistance. These factors collectively shorten downtime, extend service life, and lower lifecycle costs, delivering measurable ROI through improved uptime and reduced replacement frequency.
