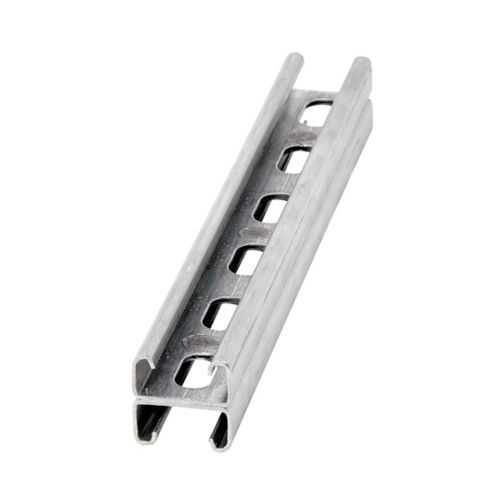

Eaton B54SHA-240GLV Strut Channel - SHA Pattern, 14 Gauge Pre-Galvanized
Part Number: B54SHA-240GLV
Quick Summary
B54SHA-240GLV is a back-to-back welded strut channel for industrial support installations. If you struggle with misalignment, corrosion, or fittings compatibility, this channel provides a robust, long-lasting solution. Certifications like SIL, CE, or IP ratings are not listed for this model, but Eaton's B-Line channel adheres to established industry standards and uses durable pre-galvanized steel. The 0.81 inch height, 240 inch length, and 1.62 inch width support versatile mounting along racks and enclosures, with SHA hole pattern enabling flexible configurations. Using this channel can reduce field variance, improve install speed, and deliver predictable lifecycle costs for plant modernization or new builds.
Product Information
Extended Description
B54SHA-240GLV Eaton: Eaton B-Line series strut back-to-back welded channel, 0.81" H x 240" L x 1.62" W, Steel, Pre-galvanized, SHA, 14 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B54SHA-240GLV
UPC
782051158038
Product Length/Depth
240 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
36.4 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
SHA
Finish
Pre-galvanized
Material
Steel
Material gauge
14 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B54SHA-240GLV
Dura-Green finish overview
Back-to-back welded channel design provides continuous support with fewer joints, increasing rigidity and reducing misalignment during installation. This translates to faster field assembly and longer span integrity in both electrical and mechanical supports. Use it for rack rows, switchgear supports, and equipment mounts across manufacturing floors. The channel dimensions—0.81 in height, 1.62 in width, and 240 in length—paired with 14 gauge steel offer predictable load distribution, simplifying layout planning and reducing material waste in large-scale installs. The pre-galvanized finish delivers corrosion resistance, extending service life in moderate industrial environments and lowering maintenance costs over time. SHA mounting holes enable a wide accessory ecosystem, improving compatibility with fasteners, brackets, and clamps across Eaton’s B-Line family. This compatibility reduces procurement risk and accelerates project timelines, especially when coordinating with channel catalogs and accessory cross-reference data. Documentation and standardization via Eaton resources further streamline purchasing and field installation, helping engineers achieve consistent, compliant builds.
Get a Quick Quote for a Eaton B54SHA-240GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54SHA-240GLV?
Enquire Now
FAQs
B54SHA-240GLV uses the SHA hole pattern and is designed to work with Eaton B-Line accessories as well as standard strut channel fittings. Look for nuts, bolts, clamps, and brackets sized for 14 gauge steel channels and SHA spacing. Always consult the Eaton Channel and Combinations Catalog Section for compatible components.
Key specs include a 0.81 in height, 240 in length, and 1.62 in width, formed from 14 gauge steel with a pre-galvanized finish. The channel weighs 36.4 lb and uses the B54 channel type with SHA hole pattern. UPC 782051158038 provides product identification.
Yes. The long 240 in run length, back-to-back welded construction, and SHA mounting pattern make it suitable for data center rack rows and equipment shelves. The pre-galvanized finish provides corrosion resistance in indoor environments, while compatibility with common accessories supports rapid deployment and scalable infrastructure.
According to the specifications, certifications are Not Applicable. While the model adheres to Eaton's standard B-Line channel dimensions and finishes, verify project requirements and consult the Eaton specification sheet if you need CE or IP rating compliance for a given site.
Pre-galvanized steel offers corrosion resistance suitable for most indoor industrial environments, reducing repainting and maintenance costs. The 14-gauge steel provides durable load performance, and the back-to-back welded design minimizes joints that can loosen over time, contributing to lower maintenance and longer service life in installations like enclosures and support racks.
