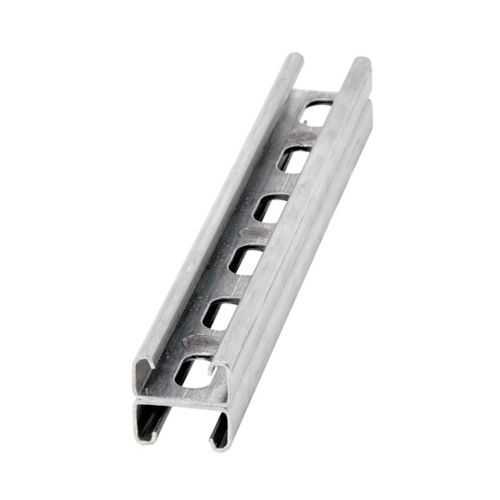

Eaton B54SHA-240GRN Strut Channel - 14 Gauge
Part Number: B54SHA-240GRN
Quick Summary
Eaton B54SHA-240GRN Strut Channel provides rugged back-to-back support for electrical and mechanical installations. In busy facilities, installers contend with misalignment, time-consuming assembly, and corrosion-prone hardware. Certifications are Not Applicable for this SKU; for projects with strict regulatory requirements, verify the latest standards from Eaton. The combination of a DURA GREEN finish and 14 Gauge steel provides durable, low-maintenance support that scales with your layouts, while remaining compatible with standard B-Line accessories.
Product Information
Extended Description
B54SHA-240GRN Eaton: Eaton B-Line series strut back-to-back welded channel, 0.81" H x 240" L x 1.62" W, Steel, DURA GREEN, SHA, 14 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B54SHA-240GRN
UPC
781011845575
Product Length/Depth
240 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
36.4 lb
Certifications
Not Applicable
Channel type
B54
Hole pattern
SHA
Finish
DURA GREEN
Material
Steel
Material gauge
14 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B54SHA-240GRN
Dura-Green finish overview
The B54SHA-240GRN uses a back-to-back welded channel design, delivering a rigid rail that reduces field assembly time and the potential for misalignment. This translates to faster project turnover and lower labor costs on large installations. The 240 in length supports long spans with minimal joints, while the 0.81 in height and 1.62 in width keep the profile compact for crowded equipment rooms and raised-floor installations. Manufactured from steel and finished in DURA GREEN, it offers enhanced corrosion resistance in moderate environments, lowering maintenance intervals and extending service life. The 14 Gauge construction provides robust load handling for mounting racks, electrical gear, and support brackets, with SHA hole pattern ensuring compatibility with a broad ecosystem of fasteners and accessories. Compatibility with Eaton’s B-Line catalog simplifies procurement, stocking, and on-site substitutions. The result is reliable, scalable reinforcement across data centers, manufacturing floors, and commercial facilities.
Get a Quick Quote for a Eaton B54SHA-240GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B54SHA-240GRN?
Enquire Now
FAQs
The B54SHA-240GRN is a back-to-back welded channel designed for easy integration with standard B-Line accessories. Plan for full 240 inch runs with appropriate support hangers and anchors to maintain alignment. Use compatible fasteners and brackets to preserve the SHA hole pattern integrity, and verify load distribution across mounted hardware to avoid sag over long spans.
Key specs include 0.81 inch product height, 1.62 inch product width, 240 inch product length, and 14 gauge steel with a DURA GREEN finish. The channel type is B54, hole pattern SHA, and the weight is approximately 36.4 pounds per full-length channel. Material is steel, providing solid mechanical strength for varied mounting tasks.
Yes. The B54SHA-240GRN adheres to the standard B-Line strut channel profile and SHA hole pattern, ensuring broad compatibility with Eaton accessories as well as other vendors offering compatible SHA-pattern fittings. Always confirm accessory fitment against the current Eaton catalog to avoid mismatches and ensure secure, code-compliant installations.
Certifications for this SKU are listed as Not Applicable. While it may not carry specific certifications, you should still follow project standards, industry codes, and local regulations. For projects with strict compliance requirements, verify updated standards directly with Eaton and consult their datasheets and catalogs for the latest guidance.
The B54SHA-240GRN supports long spans with fewer joints, reducing installation time and potential misalignment. The DURA GREEN finish offers corrosion resistance, lowering maintenance costs in shared or wet environments. Standardized B-Line compatibility accelerates procurement and substitutions, improving project throughput and reducing downtime across data centers, manufacturing floors, and facility installations.
