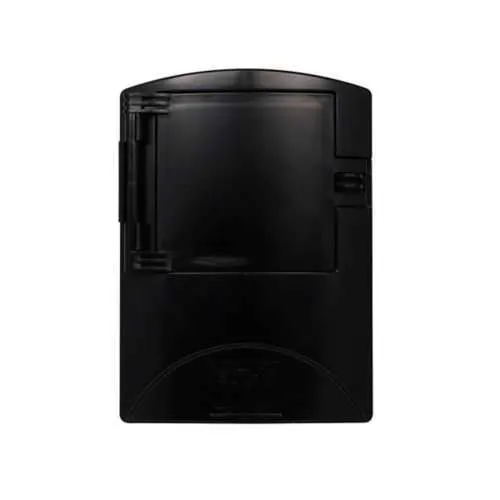

Eaton B60NARNM Air Conditioning Disconnect - UL Listed
Part Number: B60NARNM
Quick Summary
Eaton B60NARNM air conditioning disconnect provides safe, rapid isolation for HVAC equipment in commercial and industrial settings. This design addresses common pain points like weather exposure, installation space constraints, and maintenance downtime by delivering a compact, reliable solution. UL Listed and CSA Certified protection, coupled with a NEMA 3R polycarbonate enclosure, ensures robust operation in indoor and outdoor environments. With 60A at 120/240V, 10 kAIC interrupt rating, and a 10 hp capacity at 240V, this unit offers strong code-compliant performance while reducing lifecycle costs and simplifying field wiring for HVAC applications.
Product Information
Extended Description
B60NARNM Eaton: Eaton Air Conditioning Disconnect, Molded case switch, 60A, 120/240V, 10 kAIC, #14-2 Cu/Al 60°C or 75°C, NEMA 3R Polycarbonate enclosure, 10 hp at 240V, ANSI 61 gray
Product Name
Eaton air conditioning disconnect
Catalog Number
B60NARNM
UPC
786676030175
Product Length/Depth
5 in
Product Height
8.63 in
Product Width
3.5 in
Product Weight
1.86 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
For replacement molded case switch, order part number BR260NA.
Type
Air conditioning disconnect
Amperage Rating
60A
Horsepower
10 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-2 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Polycarbonate
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - B60NARNM
60A molded case switch with a 10 kAIC interrupt rating provides fast, safe isolation, reducing fault exposure for technicians and protecting downstream controls; this translates to lower downtime and safer service for HVAC equipment. The B60NARNM supports 120/240V operation and #14-2 Cu/Al wiring, enabling flexible wiring schemes and streamlined procurement for mixed electrical installations. The compact 5 in depth, 3.5 in width, and 8.63 in height design simplifies panel integration and minimizes footprint in crowded service enclosures, improving installation efficiency. A NEMA 3R polycarbonate enclosure delivers weather and impact resistance for both outdoor and damp indoor locations, enhancing reliability in variable climates. UL Listed and CSA Certified construction meets critical safety standards, reinforcing regulatory compliance and reducing risk in large facilities. Replacement BR260NA compatibility further simplifies spares and maintenance planning.
Get a Quick Quote for a Eaton B60NARNM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B60NARNM?
Enquire Now
FAQs
The B60NARNM is designed for 60A HVAC applications with 120/240V operation and supports #14-2 Cu/Al conductors. It integrates into standard HVAC service panels and rooftop unit configurations, and is compatible with the BR260NA replacement switch for service upgrades. This reduces inventory complexity and speeds up commissioning on new or retrofit projects.
Verify 60A amperage rating, 120/240V voltage, and 10 kAIC interrupt rating to ensure it matches system fault current and unit requirements. Confirm wiring method is #14-2 Cu/Al, and that the unit supports up to 10 hp at 240V. These specifications align with most commercial HVAC systems and help maintain NEC compliance.
Yes. The B60NARNM uses a NEMA 3R polycarbonate enclosure designed for indoor and outdoor use, including damp locations. Its ANSI 61 gray finish and rugged enclosure provide protection against weather, dust, and impact, making it suitable for rooftop installations and exposed equipment areas while maintaining easy maintenance access.
This disconnect is UL Listed and CSA Certified, signaling compliance with widely recognized safety and performance standards. These certifications help meet regulatory requirements for electrical equipment in commercial buildings and industrial facilities, supporting safer installations, reduced risk of non-compliance penalties, and smoother commissioning with contractors and inspectors.
Use the BR260NA replacement molded case switch when upgrading or servicing the disconnect to minimize downtime and ensure consistent performance. The unit’s 60A rating, 10 kAIC interrupt capacity, and 10 hp at 240V capability contribute to long service intervals, while the compact form factor simplifies wiring, reducing labor and rework costs during maintenance cycles.
