Eaton B6144RZN B-Line Series Bracket - Zinc Plated Finish
Part Number: B6144RZN
Quick Summary
Eaton B6144RZN B-Line series bracket is a right-hand, four-hole shelf support designed for B-Line and compatible strut-based systems. Engineers often struggle with installation fit and corrosion resistance in crowded electrical enclosures and equipment racks. Certifications are not specified for this part (Not Applicable); always verify SIL, CE, and IP requirements with Eaton’s official datasheet if your project requires formal compliance. This zinc-plated steel bracket delivers a compact footprint, enabling quick installs and consistent performance across assemblies, ultimately reducing install time and inventory complexity. By standardizing on the B-Line bracket, procurement gains consistency across systems and lowers total cost of ownership.
Product Information
Extended Description

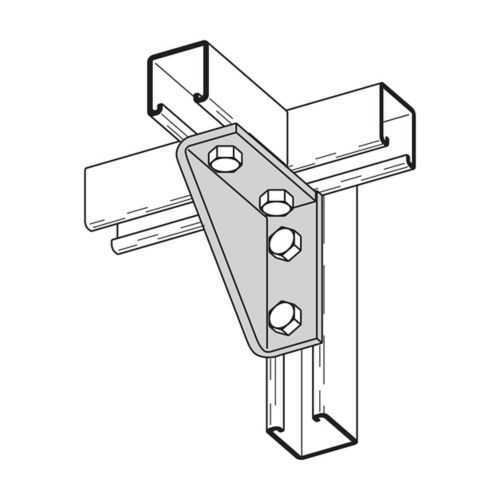

B6144RZN Eaton: Eaton B-Line series bracket, 2.31" H x 1.87" L x 1.62" W, Steel, Four hole shelf bracket,Right
Product Name
Eaton B-Line series bracket
Catalog Number
B6144RZN
UPC
781011900861
Product Length/Depth
1.87 in
Product Height
2.31 in
Product Width
1.62 in
Product Weight
0.19 lb
Certifications
Not Applicable
Type
Four hole shelf bracket,Right
Finish
Zinc plated
Material
Steel
Feature: Zinc-plated steel construction provides corrosion resistance for longer service life in challenging environments. Business Impact: Reduces replacement costs and downtime, enhancing system reliability. Application: Ideal for electrical enclosures and industrial racks where moisture or dust exposure is a concern. Feature: Precise 2.31 in height, 1.87 in depth, and 1.62 in width with a lightweight 0.19 lb mass. Business Impact: Minimizes dead load and fits compact layouts, accelerating installation times. Application: Suitable for tight-spaced panel mounts and multi-bracket assemblies within B-Line and strut-based systems. Feature: Four-hole shelf bracket with right orientation. Business Impact: Ensures correct load distribution and orientation, reducing assembly errors. Application: Compatible with standard channel nuts, bolts, and Eaton B-Line hardware for quick, secure mounting. Feature: Steel construction with standard zinc finish. Business Impact: Balances strength with cost efficiency, supporting routine maintenance and part standardization. Application: Works across multiple Eaton support system configurations, helping maintain stock consistency. Feature: Compatibility and installation advantages. Business Impact: Simplifies procurement and reduces training time for technicians installing shelving in enclosures and racks. Application: Integrates with B-Line series components and existing strut channels for scalable solutions. Industry insight: For facilities prioritizing predictable spares and repeatable installs, using identical brackets across racks minimizes errors and inventory complexity, while the zinc finish adds a protective layer against corrosion in service corridors.
Get a Quick Quote for a Eaton B6144RZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B6144RZN?
Enquire Now
FAQs
The B6144RZN is designed as a four-hole shelf bracket for Eaton B-Line series and compatible strut channels. It aligns with standard channel nuts and mounting hardware, enabling straightforward installation in B-Line racks and similar strut-based systems.
The bracket measures 2.31 inches in height, 1.87 inches in depth, and 1.62 inches in width, with a weight of 0.19 pounds. It is made from zinc-plated steel for durability in typical electrical enclosure environments.
Yes. The B6144RZN is intended for use with Eaton’s B-Line support systems and standard strut channels, making it appropriate for mounting shelves and components inside electrical enclosures and on industrial racks.
The certifications field for this part is Not Applicable. For projects requiring formal compliance (SIL, CE, IP), consult Eaton’s official datasheet to confirm any applicable standards or alternative products that meet specific regulatory requirements.
The bracket’s zinc plating provides corrosion resistance, supporting longer service life and fewer replacements. Its light weight and compact footprint shorten installation time, reduce labor costs, and help standardize parts across racks, yielding lower total cost of ownership and easier maintenance.
