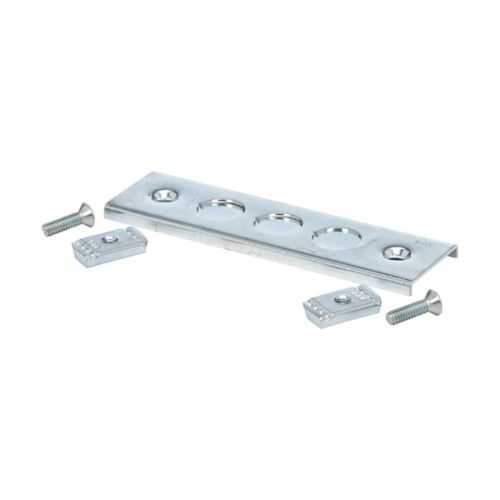

Eaton B619ZN B-Line joiner - 16 gauge steel, 6.25 in H
Part Number: B619ZN
Quick Summary
The Eaton B-Line joiner securely links B-Line channel sections in commercial and industrial electrical installations. For engineers facing tight spaces and the need for precise alignment, this compatible hardware minimizes field adjustments and expedites panel or enclosure builds. Certifications such as CE, SIL, or IP are not listed for this model, since it relies on standard 16 gauge steel and fits seamlessly within Eaton B-Line systems. This approach delivers reliable electrical hardware with consistent performance, reducing downtime and total installed cost. By integrating with existing strut channels, the joiner supports scalable rack layouts while the included hardware speeds installation and improves long-term reliability.
Product Information
Extended Description
B619ZN Eaton: Eaton B-Line series joiner, 6.25" H x 1.65" L x 1.62" W, Steel, 16 gauge
Product Name
Eaton B-Line series joiner
Catalog Number
B619ZN
UPC
781011561536
Product Length/Depth
1.65 in
Product Height
6.25 in
Product Width
1.62 in
Product Weight
0.4 lb
Certifications
Not Applicable
Special features
2pc 1/4 -20 flat head screw 2pc N224WO channel nut
Type
Strut joiners and electrical hardware
Material
Steel
Material gauge
16 gauge
Feature: The joiner uses 16 gauge steel for robust strength in strut-channel assemblies. Business Impact: This keeps enclosure frames aligned through vibration and thermal cycling, reducing call-backs and maintenance. Application: Ideal for Eaton B-Line strut systems in data centers, manufacturing lines, and electrical rooms. Feature: Compact, explicit dimensions (6.25 in height x 1.65 in depth x 1.62 in width) ensure predictable fit. Business Impact: Predictable fit minimizes field trimming and BOM errors, accelerating project timelines. Application: Works with standard B-Line channel spacing for reliable mounting of cross-members and accessories. Feature: Includes two 1/4-20 flat-head screws and two N224WO channel nuts. Business Impact: Eliminates sourcing mismatched fasteners, speeds up on-site assembly, and reduces parts count. Application: Ready-to-install hardware for quick enclosure expansion or retrofits. Feature: Compatible with Eaton B-Line strut channels and assemblies. Business Impact: Reduces integration risk with existing components and supports code-compliant connections. Application: Useful for new installs or facility-wide upgrades in data centers, manufacturing, and electrical rooms. Feature: Not certified for CE/SIL/IP per product data; relies on standard components. Business Impact: For regulated environments, confirm project requirements or opt for certified alternatives. Application: Suitable for non-regulated installations or where standard B-Line hardware is permitted.
Get a Quick Quote for a Eaton B619ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B619ZN?
Enquire Now
FAQs
The B619ZN is designed to pair with standard Eaton B-Line strut channels and includes two 1/4-20 flat-head screws plus two N224WO channel nuts. This combo ensures a secure, compatible connection within typical B-Line layouts. For retrofits, verify channel spacing and hole alignment to maintain a clean assembly and avoid misfit components.
The B619ZN measures 6.25 inches in height, 1.65 inches in depth, and 1.62 inches in width, with an approximate weight of 0.4 pounds. Constructed from 16 gauge steel, these dimensions support predictable fit and straightforward planning in electrical enclosure projects.
Begin by aligning the joiner with the B-Line channel, insert the provided 1/4-20 flat-head screws, and thread in the two N224WO channel nuts. Tighten to a secure finish without over-torquing to avoid channel distortion. This streamlined hardware set minimizes field adjustments and accelerates installation timelines.
Certification data for the B619ZN lists Not Applicable. It uses standard 16 gauge steel and is designed to integrate with Eaton B-Line components. If your project requires formal CE, SIL, or IP ratings, verify with project specifications or consider alternative joiners that carry the needed certifications.
Using the B619ZN reduces parts variance by including screws and nuts, shortens installation time, and improves installation reliability across multiple racks. Its compatibility with existing B-Line hardware supports scalable layouts, lowers maintenance intervals, and minimizes downtime during expansion or retrofits, delivering a clear ROI in large-scale electrical installations.
