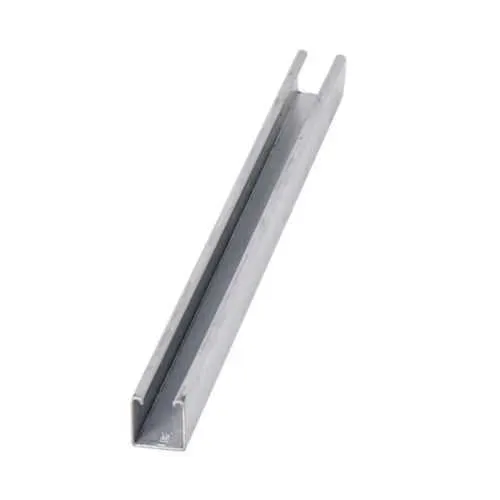

Eaton B62-120HDG Mini Channel - Hot-Dipped Galvanized
Part Number: B62-120HDG
Quick Summary
Eaton B62-120HDG Mini Channel provides robust strut channel support for industrial mounting across electrical, mechanical, and data applications. Too often engineers contend with field-cut channels, misaligned joints, and corrosion that drives downtime and maintenance costs. No formal certifications are listed for this item; however, the hot-dipped galvanized finish and 18-gauge steel deliver reliable corrosion resistance and structural integrity in harsh environments. As part of the Eaton B-Line family, the mini channel integrates with standard fittings, enabling fast installations, easy expansions, and scalable infrastructure. This combination supports safer work practices and reduces rework in electrical and mechanical installations. Field teams appreciate the familiarity of the B-Line system and the predictable lead times for replacements.
Product Information
Extended Description
B62-120HDG Eaton: Eaton B-Line series strut mini channel, 0.81" H x 120" L x 0.81" W, Steel material, Hot-dipped galvanized, 18 Gauge
Product Name
Eaton B-Line series strut mini channel
Catalog Number
B62-120HDG
UPC
781011846084
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
4.2 lb
Certifications
Not Applicable
Channel type
B62
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
18 Gauge
The B62-120HDG mini channel features a 0.81 in by 0.81 in cross-section and a full-length 120 in profile, providing a strong backbone for mounting electrical, mechanical, and data supports. It is manufactured from 18 gauge steel and is finished in hot-dipped galvanized coating, delivering durable corrosion resistance for outdoor and damp environments. Business impact: extended service life and reduced field replacements translate to lower maintenance costs and less downtime. Application: ideal for retrofit projects, cabinet and rack mounting, and outdoor installations where reliability and long-term visibility of the mounting pathway matter. This channel also supports seamless compatibility with standard Eaton B-Line fittings, which accelerates installation, reduces part counts, and enhances layout flexibility. In environments with vibration or dynamic loads, the galvanized finish helps maintain joint integrity and reduces loosening over time. Installation advantages include the ability to run long spans with fewer joints, improving routing efficiency and safety.
Get a Quick Quote for a Eaton B62-120HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B62-120HDG?
Enquire Now
FAQs
Installers should use compatible Eaton B-Line fittings and the corresponding nuts and bolts designed for 18-gauge mini channel. Begin by measuring and cutting to length, then deburr edges. Secure fittings at the channel’s slots or grooves, ensuring clean alignment along the 120 inch span. Verify connections with torque values specified in Eaton’s mini channel catalog to maintain structural integrity and code compliance.
Key specs include catalog number B62-120HDG, 120 inch product length, 0.81 inch height, 0.81 inch width, 18 gauge steel, and a hot-dipped galvanized finish. The unit weighs about 4.2 lb per piece and carries UPC 781011846084. Channel type is B62 within Eaton’s B-Line system, designed for standardized mounting across electrical and mechanical installations.
Yes. The hot-dipped galvanized finish provides superior corrosion resistance, making it suitable for outdoor, damp, or humid environments common in manufacturing floors, outdoor electrical enclosures, and exposed plant areas. While it does not list additional certifications, the material and finish align with industry expectations for durable, long-life mounting solutions.
The product data lists certifications as Not Applicable. Nonetheless, the channel uses standard B-Line design and a hot-dipped galvanized steel construction, which are routinely accepted in industrial installations for mechanical and electrical support. For project-specific standards, consult Eaton’s specifications sheet and the Mini Channel Catalog Section for installation guidelines.
Using the B62-120HDG mini channel offers predictable long-term durability due to the galvanized finish and uniform 18-gauge steel construction, reducing maintenance intervals. Its long 120 inch span minimizes field joints, speeding installation and lowering labor costs. Compatibility with standard fittings also lowers inventory complexity and accelerates future expansions or reconfigurations.
