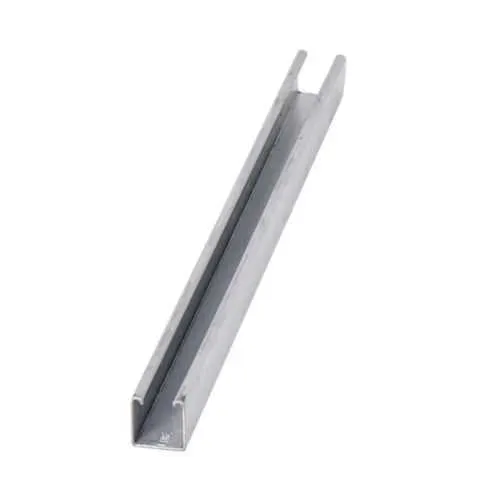

Eaton B62-120PLN B-Line strut mini channel - 18 Gauge Steel
Part Number: B62-120PLN
Quick Summary
Eaton B-Line strut mini channel provides modular support rails for electrical and mechanical installations. Engineers often face time-consuming alignment, mismatched hardware, and retrofit work; this channel simplifies long runs and tight-space installs. While the listing marks certifications as Not Applicable, the B-Line system generally aligns with standard industry practices for steel strut channel. Its field-install friendly design and compatibility with standard mini-channel fittings support scalable cable management and mechanical mounting, delivering reduced labor and faster project completion.
Product Information
Extended Description
B62-120PLN Eaton: Eaton B-Line series strut mini channel, .81" channel height, 120" channel length, .81" channel width, Steel, 18 Gauge, B62 channel type, Plain
Product Name
Eaton B-Line series strut mini channel
Catalog Number
B62-120PLN
UPC
781011276102
Product Length/Depth
120 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
4.2 lb
Certifications
Not Applicable
Channel type
B62
Finish
Plain
Material
Steel
Material gauge
18 Gauge
Strut Systems Full Catalog
Strut Systems Full Catalog
B-Line engineering services line card
Eaton Specification Sheet - B62-120PLN
The 120-inch length enables long-span runs with fewer joints, reducing cutting, splicing, and on-site assembly time. This directly lowers installation labor and accelerates project timelines in data centers, manufacturing floors, and building renovations. The compact 0.81-inch height and width provide a low-profile channel for crowded panel areas, allowing easier routing around existing equipment and cleaner cable pathways. Constructed from 18-gauge steel, the B62 channel offers robust strength with manageable weight, supporting substantial loads while remaining workable on site. Channel type B62 and plain finish support seamless integration with standard mini-channel fittings and systems from Eaton's Strut catalog, enabling quick assembly and scalable layouts. Plain finish provides field-friendly customization options, and at 4.2 lb, the channel is easy to handle during installation without sacrificing rigidity.
Get a Quick Quote for a Eaton B62-120PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B62-120PLN?
Enquire Now
FAQs
Plan run lengths to minimize joints and make use of compatible Eaton mini-channel fittings and fasteners. Cut-to-length as needed, keep supports aligned with anticipated loads, and verify spacing per project requirements. The 120 inch length helps reduce joints, but ensure you have the right accessories to maintain rigidity and security along the span.
The channel is built from 18-gauge steel and uses a B62 profile to provide solid load-bearing capability appropriate for typical cable management and mechanical mounting tasks. For exact load ratings, consult Eaton’s Strut Systems catalog or technical datasheets to select the correct fittings and supports for your specific installation and safety requirements.
Yes. The B62 mini-channel is designed to work with standard mini-channel fittings and accessories in Eaton’s Strut Systems line. When planning a retrofit or expansion, reference the Strut Systems catalog section on mini-channel fittings to ensure compatibility and optimize installation efficiency.
Certifications for this specific part are listed as Not Applicable. While formal certification notes are absent, the B-Line mini-channel adheres to Eaton’s quality processes and typical industry installation practices. Always verify local code and regulatory requirements for your installation site.
Common applications include mounting electrical conduits and equipment, creating overhead cable routes, and supporting mechanical mounting points along racks or benches. The 120-inch length supports long spans with fewer joints, enabling cleaner layouts, faster installs, and scalable cable management in data centers and factory floors.
