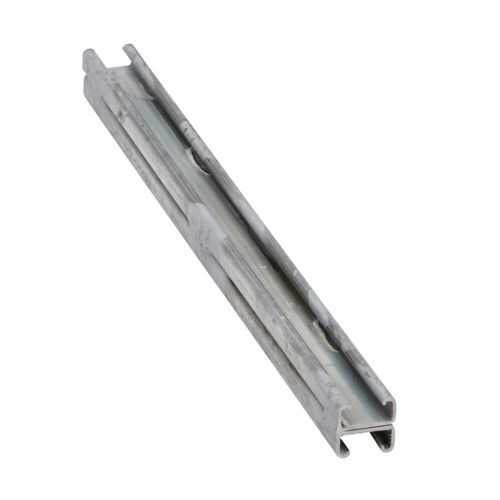

Eaton B72A-120GLV Strut Mini Channel - Pre-galvanized Steel
Part Number: B72A-120GLV
Quick Summary
Eaton B72A-120GLV strut mini channel securely supports electrical and mechanical hardware in industrial racking, panels, and service enclosures. A common challenge is delivering strong support while minimizing material waste and corrosion risk in harsh environments. Certifications are listed as Not Applicable for this item, with the product designed around standard B-Line concepts rather than specific marks. The channel’s pre-galvanized steel finish and 18 gauge construction deliver reliable durability that aligns with maintenance cycles and long-term cost of ownership. By leveraging this channel, designers can simplify mounting layouts while maintaining compatibility with the broader Strut Systems portfolio, improving procurement efficiency and field installability for industrial facilities.
Product Information
Extended Description
B72A-120GLV Eaton: Eaton B-Line series strut mini channel, 0.51" H x 120" L x 0.81" W, Steel, Pre-galvanized, 18 Gauge
Product Name
Eaton B-Line series strut mini channel
Catalog Number
B72A-120GLV
UPC
781011278700
Product Length/Depth
120 in
Product Height
0.51 in
Product Width
0.81 in
Product Weight
5.74 lb
Certifications
Not Applicable
Channel type
B72
Finish
Pre-galvanized
Material
Steel
Material gauge
18 Gauge
Strut Systems Full Catalog
Strut Systems Full Catalog
B-Line engineering services line card
Eaton Specification Sheet - B72A-120GLV
Feature: 120 in product length delivers long-span capability, reducing field joints and accelerating layout completion. Business Impact: Fewer connection points lowers labor time and joint failure risk during service life. Application: data centers, manufacturing lines, and distribution bays where continuous channel runs are advantageous. Feature: 0.51 in height and 0.81 in width with 18 gauge steel. Business Impact: High stiffness-to-weight ratio supports heavy components without excessive weight. Application: wall-mounted frames and ceiling-mounted supports in mechanical rooms. Feature: Pre-galvanized steel finish. Business Impact: Inherent corrosion resistance for indoor environments, extending channel life and reducing maintenance. Application: harsh industrial environments where moisture contact is common. Feature: Weight of 5.74 lb enables manageable handling and reduces installation fatigue on long runs. Business Impact: Faster crew turnover and safer lifts during assembly. Application: field installations requiring manual handling of long channel spans. Feature: Catalog and datasheet availability (Strut Systems Full Catalog, mini-channel fittings catalog). Business Impact: Streamlines design decisions, reduces procurement lead times, and ensures compatibility. Application: engineering design reviews and procurement workflows. Feature: Channel type B72 supports modular fittings within the Eaton B-Line mini-channel ecosystem. Business Impact: Enables scalable, modular builds with predictable performance. Application: modular racking, panel mounting, and electrical distribution supports.
Get a Quick Quote for a Eaton B72A-120GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B72A-120GLV?
Enquire Now
FAQs
The B72A-120GLV is part of Eaton’s B-Line mini-channel family and is designed to be used with standard mini-channel fittings and accessories listed in the Strut Systems Full Catalog and the mini-channel fittings catalog. This compatibility supports rapid assembly and scalable framing for electrical, mechanical, and support structures.
General specifications specify a length of 120 in, a height of 0.51 in, a width of 0.81 in, and an 18 gauge steel construction. The product weight is 5.74 lb, which provides a robust yet manageable channel for long-span applications without excessive handling effort.
The channel is finished in pre-galvanized steel, which offers corrosion resistance for indoor industrial environments. For outdoor or particularly aggressive conditions, additional coatings or protective measures may be required per your environmental specifications and engineering guidance.
Design resources are available via Eaton’s catalogs and datasheets: Strut Systems Full Catalog, mini-channel and fittings catalog, and the Eaton Specification Sheet for B72A-120GLV. These documents support accurate dimensioning, compatibility checks, and procurement planning.
Recommended use cases include long-span rack and panel mounting, service enclosures, and modular support frameworks within data centers and manufacturing environments. The combination of 120 in length, 18 gauge steel, and pre-galvanized finish facilitates scalable, cost-efficient upgrades with predictable performance.
