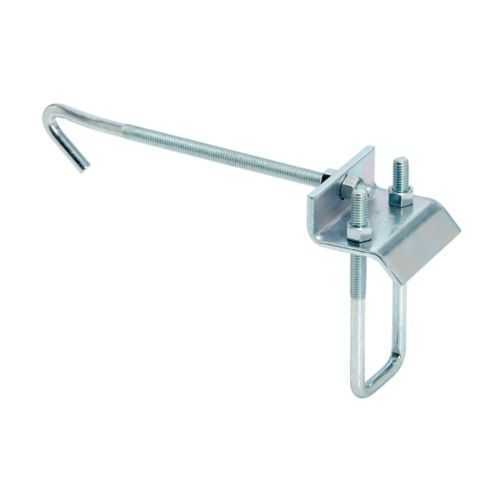

Eaton B760-22A-J4HDG Beam Clamp - cULus Listed
Part Number: B760-22A-J4HDG
Quick Summary
Eaton B760-22A-J4HDG beam clamp securely anchors B-Line strut systems in electrical installations. Many mounting clamps struggle with 1 in beams or require tool-heavy installation, causing downtime. This clamp is cULus Listed for safety compliance and features a hot-dipped galvanized finish that resists corrosion in harsh environments. Designed for compatibility with standard strut channels and the 5.875 in flange width, it supports efficient, repeatable installations across service entrances, lighting runs, and emergency-system projects. Using this clamp reduces field adjustments and simplifies maintenance, delivering reliable performance and long-term cost savings. For engineers sourcing robust, code-compliant hardware, the B760-22A-J4HDG offers a practical, durable solution that integrates with Eaton's B-Line products.
Product Information
Extended Description
B760-22A-J4HDG Eaton: Eaton B-Line series beam clamps, Beam clamp, 1-5/8", 1" beam thickness, 5-7/8" flange width, Hot-dipped galvanized
Product Name
Eaton B-Line series beam clamps
Catalog Number
B760-22A-J4HDG
UPC
781011574185
Product Length/Depth
10.548 in
Product Height
5.892 in
Product Width
3 in
Product Weight
1.288 lb
Certifications
cULus Listed
Beam thickness
1 in
Beam/flange width
5.875 in
Type
Beam clamp
Feature: Beam thickness compatibility and flange width. Business Impact: Ensures a secure grip on 1 in beams and accommodates a 5.875 in flange width, reducing rework and speeding installation. Application: Ideal for overhead lighting, conduit support, and equipment mounting on standard B-Line strut channels. Feature: Hot-dipped galvanized finish. Business Impact: Delivers excellent corrosion resistance in damp or outdoor environments, lowering maintenance costs over the life of the installation. Application: Suitable for wash-down areas, outdoor installations, and utility rooms where humidity and contamination are factors. Feature: Compact, balanced dimensions and weight. Business Impact: Facilitates one-person handling and precise positioning with a product length of 10.548 in, height of 5.892 in, width of 3 in, and weight of 1.288 lb. Application: Faster commissioning and safer handling during rack, lighting, or emergency-system mounting. Feature: Certifications and safety alignment. Business Impact: cULus Listed status helps meet essential safety and regulatory requirements for industrial projects, supporting faster approvals. Application: Compliance-focused projects across commercial and industrial facilities. Feature: System compatibility. Business Impact: Integrates with Eaton’s B-Line strut systems, enabling seamless hardware compatibility and reducing the need for mixed-brand components. Application: Streamlined procurement and scalable installations for ongoing facility upgrades.
Get a Quick Quote for a Eaton B760-22A-J4HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B760-22A-J4HDG?
Enquire Now
FAQs
The B760-22A-J4HDG is specifically designed for 1 in beam thickness and a 5.875 in flange width, ensuring a secure grip on standard B-Line strut channels. With a length of 10.548 in, height of 5.892 in, and width of 3 in, it integrates smoothly into overhead layouts and reduces field adjustments during installation.
Plan for a beam clamp that measures 10.548 in in length, 5.892 in in height, and 3 in in width, with a product weight of 1.288 lb. These dimensions support one-person handling and precise placement, accelerating setup in lighting runs and conduit supports within B-Line strut systems.
Yes. The B760-22A-J4HDG features a hot-dipped galvanized finish, providing enhanced corrosion resistance suitable for outdoor, damp, or wash-down environments. This finish extends service life in challenging installation sites and reduces repainting or replacement needs.
The clamp is cULus Listed, indicating compliance with established safety standards for electrical installations. This certification supports safer operation, helps meet regulatory requirements, and can streamline inspection and approval processes for commercial and industrial facilities.
The clamp’s robust galvanized finish, precise 1 in beam compatibility, and straightforward installation reduce downtime and maintenance intervals. By using a code-compliant, durable component within the B-Line system, facilities experience fewer field adjustments, lower replacement frequency, and improved long-term total cost of ownership.
