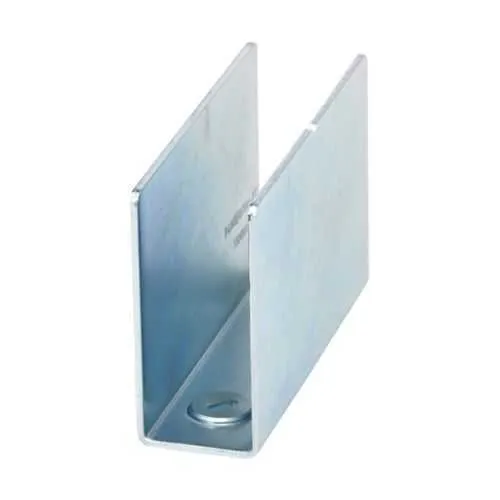

Eaton B766-11ZN B-Line joiner - UL Listed, 12 gauge steel
Part Number: B766-11ZN
Quick Summary
Eaton B-Line series joiner provides a reliable straight strut connection for modular framing in electrical enclosures. Field installation often suffers from misaligned corners and time-wasting adjustments, delaying panel assemblies and increasing labor costs. UL Listed certification ensures electrical safety and compatibility in panel installations, while the B-Line family is known for robust, reusable fittings. This model, B766-11ZN, uses 12 gauge steel and includes two cam screws, delivering a sturdy, reusable connection that minimizes rework. For engineers and procurement teams, the combination of strong mechanical performance and familiar Eaton components translates into reduced support calls, lower maintenance costs, and faster project turnover.
Product Information
Extended Description
B766-11ZN Eaton: Eaton B-Line series joiner, 3.25" H x 4.5" L x 1.62" W, Steel, 12 gauge, Straight strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B766-11ZN
UPC
781011574406
Product Length/Depth
4.5 in
Product Height
3.25 in
Product Width
1.62 in
Product Weight
0.94 lb
Certifications
UL Listed
Special features
Includes 2 cam screws
Type
Straight strut joiner
Material
Steel
Material gauge
12 gauge
Feature: Durable steel construction with 12 gauge thickness. Business Impact: This material choice delivers rigid joints that resist deformation under load, lowering field service visits and boosting panel integrity. Application: Ideal for Eaton B-Line straight strut installations in heavy-duty equipment enclosures and cable tray supports. Feature: Includes two cam screws for quick, secure mounting. Business Impact: Eliminates separate fastener handling, speeds up installation, and reduces the risk of loose connections that can compromise rigidity. Application: Useful in rapid assembly of modular framing for electrical enclosures and industrial racks. Feature: Precise dimensions and compact footprint (3.25 in H x 4.5 in L x 1.62 in W). Business Impact: Ensures consistent fit and square corners across multiple joints, minimizing rework and alignment checks. Application: Fits standard B-Line straight strut channels in panel framing and support assemblies. Feature: UL Listed certification. Business Impact: Provides compliance with safety standards critical to electrical installations, reducing qualification time for projects and simplifying approval workflows. Application: Suitable for electrical enclosures, switchgear rooms, and industrial facilities where safety certifications are required. Feature: Lightweight yet strong (0.94 lb) with steel construction. Business Impact: Improves handling on-site, lowers installation fatigue, and shortens install windows in tight spaces. Application: Beneficial for contractor teams performing overhead or elevated installations in modular framing systems. Feature: Compatibility with Eaton B-Line straight strut joiners. Business Impact: Streamlines procurement and inventory management by sticking to a single family of components, lowering mismatch risk. Application: Ideal for new builds and retrofit projects involving B-Line framing and accessories.
Get a Quick Quote for a Eaton B766-11ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B766-11ZN?
Enquire Now
FAQs
The B766-11ZN is designed for Eaton B-Line straight strut channels and is supplied with two cam screws for secure mounting. It fits standard B-Line framing components, simplifying procurement and ensuring reliable alignment within modular electrical enclosures and panel framing.
Its straight joiner geometry paired with included cam screws enables fast, square connections between strut sections, reducing field cutting, rework, and misalignment. This translates to shorter install windows and lower labor costs on panel assemblies and equipment racks.
Yes. The B766-11ZN carries UL Listed certification, a key indicator of electrical safety compliance for use in panel enclosures, switchgear areas, and industrial framing where safety standards are mandatory.
The joiner is manufactured from steel with a 12 gauge thickness, measuring 3.25 inches in height, 4.5 inches in length, and 1.62 inches in width, with an approximate weight of 0.94 pounds.
Install by placing the joiner between straight B-Line channels, align joints, then secure using the two cam screws included. Periodically check fasteners for tightness and inspect for any deformation during service, ensuring ongoing rigidity and compliant framing within modular systems.
