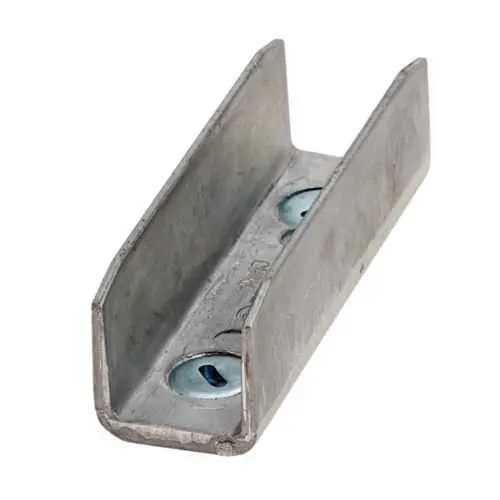

Eaton B766-22YZN Straight Strut Joiner - UL Listed
Part Number: B766-22YZN
Quick Summary
Eaton B766-22YZN straight strut joiner securely connects B-Line strut for clean, reliable electrical installations in panels, enclosures, and automation racks. In fast-moving projects, misaligned joints and loose fittings slow progress and complicate cable routing. UL Listed certification underscores safety and dependability in industrial environments, giving maintenance teams confidence during audits and retrofits. Built from 12 gauge steel, this joiner withstands mounting loads and repeated assembly cycles without warping. By providing predictable tolerances and a compact footprint, it helps integrators meet tight project timelines while maintaining scalable, compliant B-Line networks. For engineers and procurement professionals, the B766-22YZN is a practical choice that aligns with standard Eaton components and common data-center layouts.
Product Information
Extended Description
B766-22YZN Eaton: Eaton B-Line series joiner, 1.62" H x 4.5" L x 1.62" W, Steel, 12 gauge, Straight strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B766-22YZN
UPC
781011984205
Product Length/Depth
4.5 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
0.5 lb
Certifications
UL Listed
Special features
Includes 2 cam screws
Type
Straight strut joiner
Material
Steel
Material gauge
12 gauge
Feature: Steel construction in 12 gauge provides high strength-to-weight ratio and durability. Business Impact: Reduces deflection under load and extends service life in demanding environments. Application: Ideal for harsh factory floors and control rooms where vibration is present and reliability is critical. Feature: Exact 4.5 in length and 1.62 in height/width create predictable junctions. Business Impact: Improves alignment across runs, minimizes rework, and speeds installation. Application: Useful for clean, modular layouts in electrical cabinets and equipment racks. Feature: UL Listed certification signals safety and compliance. Business Impact: Supports regulatory readiness and third-party audits while protecting warranties. Application: Suitable for critical power and data center applications. Feature: Includes 2 cam screws for quick securing. Business Impact: Cuts installation time and reduces tool wear, lowering labor costs. Application: Accelerates field assembly in busy panels and maintenance bays. Feature: Compatible with Eaton B-Line strut systems. Business Impact: Enables seamless integration, reducing BOM complexity and stock variety. Application: Best used when expanding or replacing sections of existing B-Line installations. Feature: Robust steel with consistent tolerances. Business Impact: Improves repeatability across multiple joiners, aiding scalable builds. Application: Beneficial for large-scale data centers and industrial facilities where standardized components are essential.
Get a Quick Quote for a Eaton B766-22YZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B766-22YZN?
Enquire Now
FAQs
To install, place the joiner between two B-Line struts, align the channels, and insert the two cam screws provided. Tighten evenly to ensure a snug, vibration-resistant connection. The 4.5 in length and 1.62 in dimensions fit standard B-Line profiles, optimizing space in tight panel elevations and minimizing misalignment during assembly.
Yes. The joiner is specified in 12 gauge steel and designed for use with B-Line straight strut systems. This compatibility helps standardize components across new builds and retrofit projects, reducing parts mix and ensuring a secure, load-bearing connection that maintains channel integrity.
Key applications include electrical enclosures, control panels, data centers, and industrial automation racks. It excels where clean, aligned joints are critical for cable management, safe electrical clearances, and modular expandability of B-Line strut networks.
UL Listed certification confirms adherence to recognized electrical safety standards, which simplifies compliance during audits and installations. While it supports warranty confidence, always verify with Eaton or your integrator for specific warranty terms related to installation and usage scenarios.
The B766-22YZN offers a precise 4.5 in length, 1.62 in width/height, and includes two cam screws for rapid assembly, all in 12 gauge steel. This combination emphasizes fast installation, strong joint integrity, and seamless B-Line compatibility, making it a strong choice for standardized, scalable installations in automation facilities.
