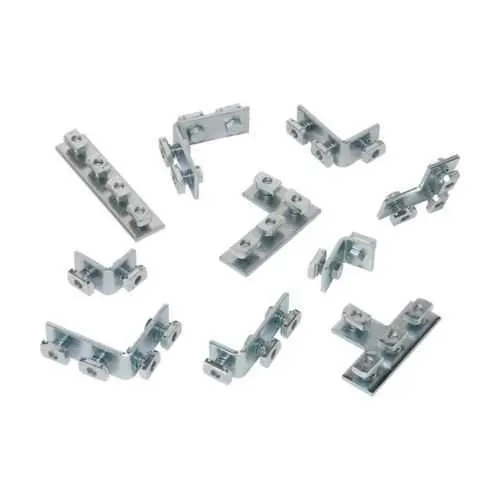

Eaton B766-26ZN B-Line series joiner - UL Listed
Part Number: B766-26ZN
Quick Summary
Eaton B-Line series joiner is a steel straight connector that enables precise, secure alignment of B-Line strut in electrical enclosures. A common challenge is misalignment during assembly, which leads to rework and longer project timelines. This model carries UL Listed certification, supporting regulatory compliance; its 12 ga steel construction handles vibration and load demands. Reliable fit and fast installation translate to lower total cost of ownership, while compatibility with standard Eaton B-Line systems helps maintain design consistency. Engineers benefit from predictable performance when tying into adjacent fittings, reducing the risk of misdrilled holes or gaps. By standardizing on 12 gauge steel and UL Listed components, facilities simplify procurement and maintenance planning across multiple project sites.
Product Information
Extended Description
B766-26ZN Eaton: Eaton B-Line series joiner, 1.63" H x 4.5" L x 1.62" W, Steel, 12 gauge
Product Name
Eaton B-Line series joiner
Catalog Number
B766-26ZN
UPC
781011574444
Product Length/Depth
4.5 in
Product Height
1.63 in
Product Width
1.62 in
Product Weight
0.53 lb
Certifications
UL Listed
Special features
Includes 2 cam screws
Type
Straight strut joiner
Material
Steel
Material gauge
12 gauge
Feature: 12 gauge steel construction delivers robust load handling and vibration resistance, helping maintain alignment in demanding environments. Business Impact: Fewer field adjustments and longer service life translate to reduced maintenance costs and downtime in critical electrical enclosures. Application: Ideal for control panels and distribution enclosures in manufacturing and process facilities that require durable mounting hardware. Feature: 4.5 in length, 1.63 in height, 1.62 in width, and 0.53 lb weight provide a compact yet sturdy connector. Business Impact: A smaller footprint enables tighter layouts and easier integration with adjacent fittings, reducing panel depth and freeing space for cables. Application: Suitable for tight electrical racks and compact enclosures in control rooms, where precise fit matters. Feature: Includes 2 cam screws for fast, tool-assisted attachment. Business Impact: Shortens installation time and ensures secure, repeatable joints across multiple assemblies. Application: Retrofit projects and new builds where repeatable geometry improves alignment with existing B-Line components. Feature: Steel 12 gauge material aligns with standard B-Line fittings. Business Impact: Simplifies procurement and interchangeability across facilities, lowering stocking costs and part variance. Application: Works seamlessly with Eaton B-Line system fittings and accessories in commercial and industrial electrical installations. Feature: UL Listed certification provides recognized safety compliance. Business Impact: Supports audit readiness and regulatory adherence in facilities spanning multiple jurisdictions. Application: Ideal for projects requiring documented electrical safety certification and consistent performance. Feature: Compatibility with straight strut joiners and other B-Line accessories ensures modularity. Business Impact: Enables scalable designs, future reconfiguration, and reduced spare-part variety. Application: Long-term asset management in data centers, manufacturing floors, and facility infrastructure.
Get a Quick Quote for a Eaton B766-26ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B766-26ZN?
Enquire Now
FAQs
To install, align the joiner with the B-Line strut, insert the included cam screws through the joiner into the strut slots, and tighten securely. Verify alignment before mounting adjacent components to avoid misfit gaps and ensure a level assembly.
The joiner measures 4.5 inches in length, 1.63 inches in height, and 1.62 inches in width, weighing 0.53 pounds. It is constructed from 12 gauge steel and UL Listed for safety and reliability.
Yes. The B766-26ZN is designed as a straight strut joiner for use with standard Eaton B-Line system components and fittings, ensuring consistent geometry and straightforward integration into existing layouts.
Ideal for joining straight sections of B-Line strut in control panels, electrical enclosures, and rack-mounted assemblies. It supports aligned mounting of equipment and accessories, improving efficiency in both new builds and retrofits.
UL Listed certification confirms compliance with recognized electrical safety standards, helping with audits and regulatory requirements in many markets. The joiner’s steel construction and compatibility with B-Line systems further support reliable, repeatable installations across facilities.
