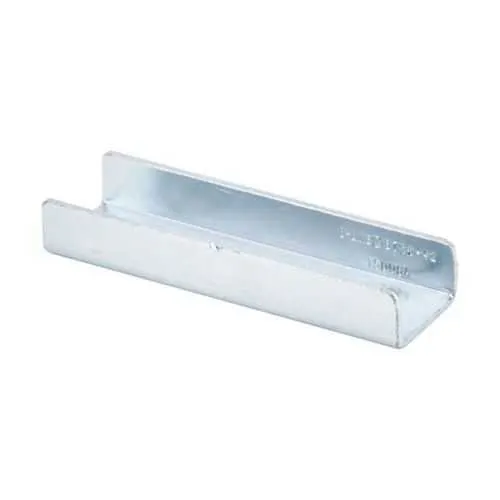

Eaton B766-42ZN Joiner - UL Listed, 12 GA Steel
Part Number: B766-42ZN
Quick Summary
The Eaton B766-42ZN joiner enables quick, secure strut system extensions for electrical enclosures and cable management. Engineers often struggle with alignment, fit, and tool compatibility during field installations. This product is UL Listed, ensuring compliance with essential electrical safety standards and rugged 12 gauge steel construction. As an Eaton B-Line accessory, it simplifies mounting, reduces install time, and helps keep enclosures aligned across multiple bays. Its compact footprint supports tight spaces while maintaining full compatibility with standard B-Line struts. For procurement teams, the included cam screws and UL certification streamline sourcing and regulatory documentation. The combination of robust steel construction and predictable fit minimizes change orders and supports faster project delivery.
Product Information
Extended Description
B766-42ZN Eaton: Eaton B-Line series joiner, 1" H x 4.5" L x 1.62" W, Steel, 12 gauge, Straight strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B766-42ZN
UPC
781011574468
Product Length/Depth
4.5 in
Product Height
1 in
Product Width
1.62 in
Product Weight
0.34 lb
Certifications
UL Listed
Special features
Includes 2 cam screws
Type
Straight strut joiner
Material
Steel
Material gauge
12 gauge
Feature: Straight strut joiner provides direct, inline connections for B-Line struts, sized to fit a 1 in height by 4.5 in length profile. Business Impact: Precise dimensions reduce misalignment and field adjustments, speeding up assembly and minimizing rework in panel and enclosure installations. Application: Use this joiner to bridge sections of 1 in high strut channels on electrical enclosures, control panels, and cable-management runs, especially where space is tight or routing requires a clean right-angle transition. Feature: 12 gauge steel construction delivers robust rigidity and strength. Business Impact: High stiffness resists bending and maintains alignment under vibration, extending service life of mounted components. Application: Ideal for commercial and light industrial installations where dependable support is critical and long-term performance is required. Feature: Includes 2 cam screws for fast, secure attachment. Business Impact: Accelerates field installation, reduces time spent hunting for hardware, and improves repeatability across multiple assemblies. Application: Install on straight strut runs in B-Line systems for reliable connectivity in panel assemblies and channel applications. Feature: Compact footprint at 1 in height, 4.5 in length, 1.62 in width; weight 0.34 lb. Business Impact: Dense layouts become feasible, handling is easier, and shipping costs drop due to lighter weight. Application: Perfect for tight spaces around enclosures and within crowded racking or cable-management paths. Feature: UL Listed certification ensures electrical-safety compliance. Business Impact: Regulatory acceptance reduces risk of non-conformance and simplifies procurement documentation. Application: Suitable for electrical accessories catalogs and strut fittings and accessories line to support compliant system integration.
Get a Quick Quote for a Eaton B766-42ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B766-42ZN?
Enquire Now
FAQs
The Eaton B766-42ZN is a straight strut joiner designed to connect 1 in high strut channels across a 4.5 in span, enabling inline or right-angle transitions in B-Line systems. It includes two cam screws for secure attachment and is UL Listed to support electrical safety compliance. This makes it ideal for efficient panel mounting, enclosure links, and cable-management runs in commercial facilities.
Install by aligning the joiner with adjacent struts, insert the two cam screws, and tighten to secure the connection. The package includes two cam screws as indicated in the model features, designed for use with standard B-Line strut fittings. Ensure the joiner seats flush against the strut to maintain proper alignment and load transfer in electrical enclosure and panel assemblies.
Yes, the B766-42ZN is UL Listed, providing a recognized safety certification for electrical installations. Key specifications include 12 gauge steel construction, dimensions of 1 in height, 4.5 in length, and 1.62 in width, plus a weight of 0.34 lb. These factors influence load capacity, fit in tight spaces, and overall installation robustness in enclosures and mounting runs.
The joiner measures 1 in in height, 4.5 in in length, and 1.62 in in width, with aShipping weight of 0.34 lb. This compact profile enables dense, modular layouts around electrical enclosures and within crowded strut networks, while keeping handling manageable during installation and reducing transport costs for large projects.
The joiner delivers faster installation due to included cam screws and a straightforward alignment process, reducing field retries and rework. Its UL Listed certification simplifies compliance documentation, and the 12 gauge steel construction provides durable, vibration-resistant support for mounting components in panel assemblies and cable-management runs, delivering measurable savings in labor and project timelines.
