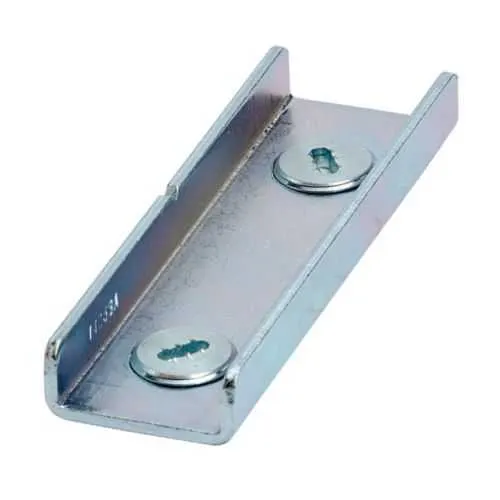

Eaton B766-52ZN B-Line joiner - UL Listed
Part Number: B766-52ZN
Quick Summary
Eaton B766-52ZN B-Line joiner is a straight steel connector that links B-Line series strut channels for secure, efficient installations in electrical and data-center applications. One common challenge is misalignment and time-consuming fittings that slow progress and raise labor costs; this joiner’s precise 0.81 in height, 4.5 in length, and 1.62 in width help maintain alignment and rigidity. UL Listed certification supports safety and compliance in demanding environments, while 12-gauge steel delivers robust load transfer and long-term durability. The design includes two cam screws for quick, reliable assembly, and it’s compatible with standard B-Line channels, ensuring easy procurement and consistent performance across projects. For engineers and procurement teams, this joiner offers predictable reliability and streamlined sourcing to support on-time delivery.
Product Information
Extended Description
B766-52ZN Eaton: Eaton B-Line series joiner, 0.81" H x 4.5" L x 1.62" W, Steel material, 12 gauge, Straight strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B766-52ZN
UPC
781011574475
Product Length/Depth
4.5 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
0.28 lb
Certifications
UL Listed
Special features
Includes 2 cam screws
Type
Straight strut joiner
Material
Steel
Material gauge
12 gauge
Feature: 12 gauge steel construction delivers high stiffness and durability. Business Impact: Enhanced load-bearing capacity reduces flex in channel runs and minimizes maintenance needs over the life of the installation. Application: Ideal for electrical racks, mechanical supports, and overhead strut installations in industrial facilities. Feature: Compact, precise dimensions 0.81 in H x 4.5 in L x 1.62 in W with straight configuration. Business Impact: Enables tight, clean channel-to-channel joints and reduces crowding in multi-run applications. Application: Perfect for data centers and plant floors where space is at a premium. Feature: Includes 2 cam screws for fast, tool-efficient assembly. Business Impact: Shortens install time and improves field reliability with fewer loose fittings. Application: Retrofit projects and new-builds across electrical rooms. Feature: UL Listed certification. Business Impact: Elevates safety and compliance, reducing audit risk in regulated environments. Application: Critical in data centers, healthcare facilities, and manufacturing floors. Feature: Lightweight 0.28 lb design. Business Impact: Lowers handling effort and shipping costs while enabling high-count installations. Application: Large-scale strut systems and modular rack assemblies across facilities.
Get a Quick Quote for a Eaton B766-52ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B766-52ZN?
Enquire Now
FAQs
Yes. The B766-52ZN is designed for the Eaton B-Line series strut channels and uses two cam screws for secure, quick mounting. Its 4.5 inch length and 0.81 inch height fit typical B-Line channel spans, ensuring reliable joins in electrical and mechanical installations across data centers and facilities.
Key specs include 12 gauge steel construction, dimensions of 0.81 in H x 4.5 in L x 1.62 in W, a weight of approximately 0.28 lb, and UL Listed certification. Catalog number is B766-52ZN, with a UPC of 781011574475. Two cam screws are included to facilitate fast field assembly.
Absolutely. The straight strut joiner is ideal for securing B-Line channel runs in data centers, electrical rooms, and mechanical spaces. Its steel, 12 gauge build provides stable support for racks and overhead runs, while the cam-screw design speeds setup and reduces install time in dense deployments.
This joiner is UL Listed, which confirms adherence to applicable safety standards for electrical and mechanical assemblies. The certification supports compliance in regulated environments such as data centers, healthcare facilities, and manufacturing plants, providing added assurance for procurement and maintenance teams.
The two cam screws enable quick, tool-efficient assembly, reducing on-site labor and rework. Its precise dimensions and compatibility with standard B-Line channels minimize misalignment and rework, delivering faster project completion, lower total installed cost, and improved long-term reliability in high-count channel systems.
