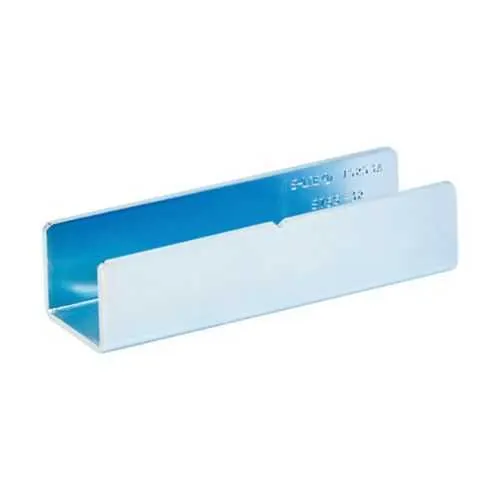

Eaton B766SZN Straight strut joiner - 12 gauge steel
Part Number: B766SZN
Quick Summary
Eaton B766SZN Straight strut joiner provides secure field connections for B-Line strut systems in electrical installations. Unsecured joints can lead to misalignment, downtime, and unsafe mounting in crowded panel spaces. This product lists certifications as Not Applicable, while offering precise 4.5 in length, 0.283 in height, and 0.45 in width in a 12 gauge steel build to ensure robust support. The device integrates smoothly with existing Eaton B-Line accessories, delivering reliable compatibility and straightforward installation for contractors and maintenance teams. By standardizing joiner components, engineers can reduce part variety and streamline procurement across the project lifecycle, improving overall installation efficiency for electrical infrastructure projects.
Product Information
Extended Description
B766SZN Eaton: Eaton B-Line series joiner, 0.2830" H x 4.5" L x 0.45" W, Steel, 12 gauge
Product Name
Eaton B-Line series joiner
Catalog Number
B766SZN
UPC
782051284393
Product Length/Depth
4.5 in
Product Height
0.283 in
Product Width
0.45 in
Product Weight
0.25 lb
Certifications
Not Applicable
Special features
Includes 2 cam screws
Type
Straight strut joiner
Material
Steel
Material gauge
12 gauge
Feature: 12 gauge steel construction provides elevated stiffness and joint integrity. Business Impact: This reduces deflection under load, improving panel mounting accuracy and extending service life. Application: Ideal for B-Line strut assemblies in electrical panels and industrial enclosures. Feature: Precise dimensions deliver consistent fit between sections. Business Impact: Minimizes rework and misalignment, speeding assembly and reducing field downtime. Application: Use when linking straight strut runs in control cabinets and process equipment framework. Feature: Includes 2 cam screws for quick on-site fastening. Business Impact: Cuts installation time and eliminates separate fastener searches, boosting technician productivity. Application: Suitable for rapid securement of joiner to adjacent struts in new builds and retrofits. Feature: Straight strut joiner design ensures compatibility with Eaton B-Line accessories. Business Impact: Reduces BOM fragmentation and procurement complexity, lowering total cost of ownership. Application: Deploy across panel assemblies and equipment racks that rely on standard B-Line components. Feature: Certifications status clarifies regulatory scope for planning teams. Business Impact: Helps prevent misinterpretation of suitability for CE/IP/SIL requirements. Application: Use where indoor structural support is required and enclosure protections are not mandated.
Get a Quick Quote for a Eaton B766SZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B766SZN?
Enquire Now
FAQs
To install, verify compatibility with the B-Line straight strut run, align the joiner between two struts, and secure using the two cam screws included with the part. Tighten evenly to avoid binding, then inspect alignment. The process is straightforward and minimizes field adjustments, reducing total installation time for panel or rack assemblies.
The joiner is manufactured from 12 gauge steel and features a length of 4.5 inches, height of 0.283 inches, and width of 0.45 inches. It weighs approximately 0.25 pounds and includes two cam screws for quick fastening. These specs ensure a precise, robust connection within B-Line strut systems.
This product lists certifications as Not Applicable and is intended for indoor electrical panel and rack applications. For outdoor or washdown environments, verify regulatory requirements and consider enclosures or protective measures that provide appropriate IP/CE/SIL coverage before deployment.
Per the data provided, certifications are Not Applicable for this joiner. Use this as a structural connector within non-certified scope projects and confirm with your compliance team whether additional certifications are required for your specific installation.
The joiner standardizes a key connection in Eaton’s B-Line ecosystem, reducing BOM fragmentation and procurement complexity. With included cam screws and a compact 12 gauge steel body, installation time decreases and long-term maintenance becomes simpler due to consistent, compatible components across panels and racks.
