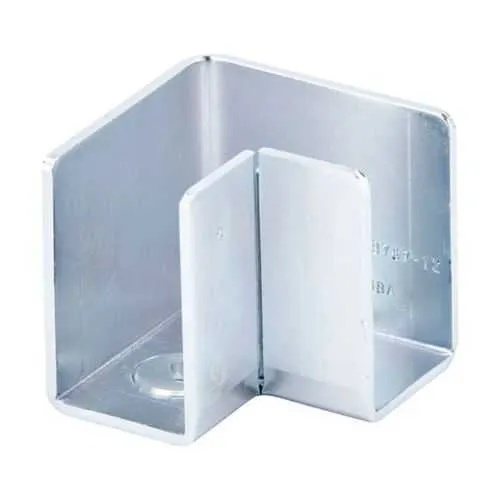

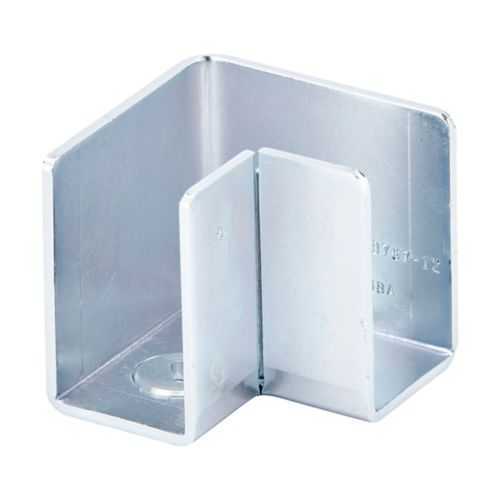

Eaton B767-12ZN 90° Elbow Strut Joiner - UL Listed
Part Number: B767-12ZN
Quick Summary
The Eaton B767-12ZN is a B-Line joiner that creates 90° elbow connections for strut framing. Engineers often struggle with precise alignment and secure mounting in tight panels, leading to rework and delays. UL Listed certification reinforces safety and compliance for industrial installations, while its 12 gauge steel construction withstands demanding environments. Used with B-Line strut channels, this joiner streamlines installation, reduces hardware variety, and improves overall ROI through faster projects.
Product Information
Extended Description
B767-12ZN Eaton: Eaton B-Line series joiner, 2.43" H x 2.31" L x 1.62" W, Steel, 12 gauge
Product Name
Eaton B-Line series joiner
Catalog Number
B767-12ZN
UPC
781011574512
Product Length/Depth
2.31 in
Product Height
2.43 in
Product Width
1.62 in
Product Weight
0.56 lb
Certifications
UL Listed
Special features
Includes 2 cam screws
Type
90° Elbow strut joiner
Material
Steel
Material gauge
12 gauge
The B767-12ZN features a sturdy 12 gauge steel body designed for reliable performance in harsh industrial environments. Feature → Business Impact → Application: The 90° elbow configuration provides precise corner connections, reducing misalignment and rework, which translates to faster panel builds and lower labor cost on electrical enclosures and data racks. This compatibility with Eaton’s B-Line system ensures quick, tool-friendly installation, enabling technicians to maintain project schedules and meet tight commissioning windows. Feature → Business Impact → Application: Includes two cam screws for repeatable alignment, delivering consistent assembly quality across multiple installations and sites, which minimizes field adjustments and improves standardization in plant-wide assemblies. Feature → Business Impact → Application: UL Listed certification adds safety and regulatory confidence, supporting compliance during audits and reducing risk in electrical installations. Feature → Business Impact → Application: The joiner’s compact footprint and 12 gauge steel construction optimize enclosure real estate while maintaining structural integrity in high-vibration environments. Feature → Business Impact → Application: Weight of 0.56 lb and 2.31 in length with 2.43 in height fit tight rack spaces, enabling denser channel configurations and cleaner cable routing in industrial facilities.
Get a Quick Quote for a Eaton B767-12ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B767-12ZN?
Enquire Now
FAQs
Install the B767-12ZN by attaching it at the 90° corner of Eaton’s B-Line strut channels. Use the included two cam screws to secure alignment, ensuring the joiner sits flush against the channel. Verify UL Listed compliance after tightening to spec and perform a quick functional check on mounted components.
Catalog number B767-12ZN; product name Eaton B-Line joiner; height 2.43 in, length 2.31 in, width 1.62 in; weight 0.56 lb; material: steel, 12 gauge; certifications: UL Listed; UPC 781011574512; includes two cam screws for installation.
Yes. The B767-12ZN is designed for B-Line strut systems used in electrical enclosures and data-center rack applications. Its 12 gauge steel construction and UL Listed certification provide durable, compliant corner joins for reliable cable management and chassis mounting in demanding environments.
The B767-12ZN carries UL Listed certification, confirming electrical safety and compliance with recognized standards. This helps with passing audits, reducing installation risk, and ensuring that the joiner meets industry reliability requirements for commercial and industrial installations.
By reducing misalignment and speeding corner assembly, the B767-12ZN lowers field repairs and labor time during panel builds. Its included cam screws and durable 12 gauge steel contribute to longer service life with fewer replacements, which translates to faster project completion and lower total maintenance costs over the system lifecycle.
