Eaton B767-32ZN B-Line joiner - UL Listed
Part Number: B767-32ZN
Quick Summary

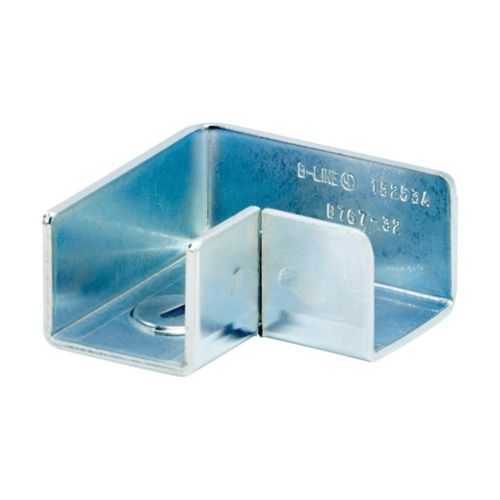

Eaton B767-32ZN B-Line joiner is a steel 90° elbow connector that secures B-Line channels in electrical support systems. When compatibility is uncertain or space is tight, misaligned hardware can lead to downtime and costly rework. UL Listed certification reinforces safety and code compliance for field installations, while steel construction using 12 gauge stock withstands industrial use. For design engineers and procurement teams, this joiner pairs with Eaton's B-Line strut systems for reliable, fast assembly and long service life.
Product Information
Extended Description
B767-32ZN Eaton: Eaton B-Line series joiner, 1.37" H x 2.31" L x 1.62" W, Steel, 12 gauge
Product Name
Eaton B-Line series joiner
Catalog Number
B767-32ZN
UPC
781011574550
Product Length/Depth
2.31 in
Product Height
1.37 in
Product Width
1.62 in
Product Weight
0.34 lb
Certifications
UL Listed
Special features
Includes 2 cam screws
Type
90° Elbow strut joiner
Material
Steel
Material gauge
12 gauge
Feature: 90° elbow joiner design enables precise corner connections and a secure path for channel routing. Business Impact: Reduces misalignment risks and installation rework, improving project timelines. Application: Ideal for framing electrical racks and equipment supports in data centers and industrial facilities. Feature: Steel construction with 12 gauge material provides enhanced rigidity and durability. Business Impact: Withstands vibration, weight loads, and harsh environments, lowering maintenance costs over the lifecycle. Application: Suitable for heavy-use installations in manufacturing floors and process plants. Feature: Compact dimensions—2.31 in length, 1.37 in height, 1.62 in width—and lightweight at 0.34 lb. Business Impact: Facilitates tight-space layouts and easier handling during assembly, improving field productivity. Application: Constrained electrical rooms and vertical/horizontal channel intersections. Feature: Includes 2 cam screws for fast, tool-assisted installation. Business Impact: Saves time on site, reduces the need for separate fasteners, and minimizes downtime. Application: Rapid mounting in B-Line strut assemblies. Feature: UL Listed certification confirms electrical safety compliance. Business Impact: Eases regulatory approvals and helps maintain code-compliant installations. Application: Projects requiring recognized electrical safety standards and contractor acceptance. Feature: Compatibility with Eaton B-Line series channels enhances installation efficiency. Business Impact: Streamlines procurement and reduces compatibility risk when updating or expanding systems. Application: New builds and retrofits using B-Line strut systems in control panels and electrical rooms.
Get a Quick Quote for a Eaton B767-32ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B767-32ZN?
Enquire Now
FAQs
Yes. The B767-32ZN is designed as a 90° elbow joiner for Eaton B-Line series strut channels. It integrates with existing 12 gauge steel channels, ensuring alignment with the mounting holes and cam screw hardware included. For best results, verify channel dimensions and use the two cam screws provided to secure the joint quickly.
The joiner measures 2.31 inches in length, 1.37 inches in height, and 1.62 inches in width, with an approximate weight of 0.34 pounds. These compact dimensions facilitate tight installations and allow clean routing of cables and supports in constrained electrical rooms.
This 90° elbow joiner is used to connect B-Line channels at right angles, forming stable corner junctions in electrical support systems. Common applications include mounting enclosures, racks, panels, and obstacle-free cable management within manufacturing floors, data centers, and utility rooms.
The B767-32ZN carries UL Listed certification, indicating compliance with recognized safety standards for electrical components. This helps ensure that installations meet electrical codes and contractor requirements in North American facilities.
The joiner includes two cam screws for fast, tool-assisted installation, reducing on-site labor time and downtime. Its durable steel construction lowers maintenance needs, and compatibility with Eaton B-Line systems simplifies future expansions or reconfigurations, delivering predictable total cost of ownership.
