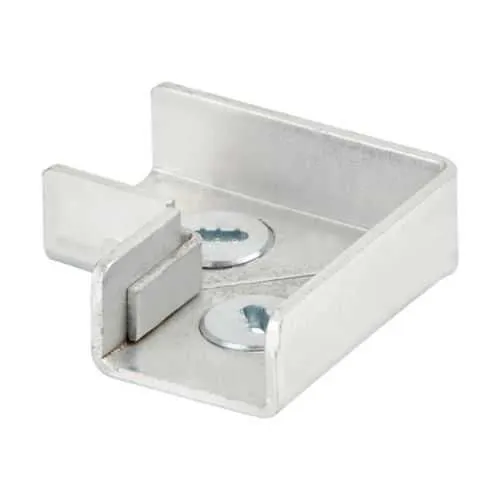

Eaton B767-52ZN B-Line joiner - UL Listed
Part Number: B767-52ZN
Quick Summary
The Eaton B767-52ZN B-Line joiner is a precise connector for 90° elbow joins in B-Line strut systems. When configuring corner connections, installers often struggle with misalignment and slow mounting; this joiner simplifies alignment and speeds up installation. UL Listed certification confirms safety and reliability, while 12-gauge steel construction delivers robust support in industrial environments. The 0.81 in height, 2.31 in length, and 1.62 in width provide a compact footprint that fits tight corners, and the inclusion of two cam screws reduces on-site hardware searches. Using this joiner helps standardize corner connections across Eaton’s B-Line accessories, improving maintenance predictability and reducing lifecycle costs in electrical and data-center infrastructures.
Product Information
Extended Description
B767-52ZN Eaton: Eaton B-Line series joiner, 0.81" H x 2.31" L x 1.62" W, Steel material, 12 gauge, 90° Elbow strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B767-52ZN
UPC
781011574574
Product Length/Depth
2.31 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
0.23 lb
Certifications
UL Listed
Special features
Includes 2 cam screws
Type
90° Elbow strut joiner
Material
Steel
Material gauge
12 gauge
Feature: 90° elbow joiner design delivers a clean, rigid corner connection, improving overall frame stability and reducing vibration under load. Benefit: Fewer on-site adjustments during commissioning for electrical enclosures and rack installations, accelerating project timelines. Application: Ideal for server cabinets and electrical panels where reliable corner connections are critical. Feature: 12 gauge steel construction provides consistent strength in harsh industrial environments. Benefit: Supports heavier cable management and equipment loads without deformation, reducing risk of future servicing. Application: Data centers and manufacturing floors requiring durable support frames. Feature: Includes two cam screws for quick mounting. Benefit: Speeds up installation, lowers labor costs, and minimizes tool switching on site. Application: Field installations with tight schedules. Feature: UL Listed certification adds compliance assurance. Benefit: Reduces audit findings and enhances safety across electrical and data-center installations. Application: Projects requiring recognized safety standards and reliable performance. Feature: Compact dimensions (0.81 in H × 2.31 in L × 1.62 in W) with a light 0.23 lb weight. Benefit: Fits tight corners and space-constrained layouts without adding bulk. Application: Dense rack and cable management configurations. Feature: Seamless compatibility with Eaton B-Line accessories. Benefit: Enables scalable, future-ready installations with consistent product family performance. Application: Campus-wide or facility-wide strut systems seeking modular growth.
Get a Quick Quote for a Eaton B767-52ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B767-52ZN?
Enquire Now
FAQs
To install, position the joiner between adjacent B-Line channels at the desired 90° corner. Insert and tighten the two cam screws provided to securely lock the joiner in place. Verify that channels are clean and fully seated, then perform a final alignment check to prevent misalignment during commissioning.
Yes. The joiner is designed for B-Line series strut channels and uses a 12 gauge steel body for robust corners. The included cam screws speed mounting, and UL Listed certification provides compliance confidence for electrical and data-center installations.
This joiner is suitable for electrical support frames, server racks, and cable management frameworks where 90° corner connections are required. Its compact footprint (0.81 in H × 2.31 in L × 1.62 in W) enables use in tight spaces without compromising strength.
The B767-52ZN carries UL Listed certification, indicating compliance with recognized safety standards. This reduces compliance risk, supports safer installations, and simplifies audits in industrial facilities. The 12 gauge steel body and secure cam-screw mounting further enhance reliability in vibration-prone environments.
With the included cam screws and a straightforward 90° connection, installation time is reduced compared to loose hardware methods. Faster assembly lowers labor costs, accelerates commissioning, and improves overall system reliability, delivering a favorable return on investment in data centers, manufacturing floors, and electrical rooms.
