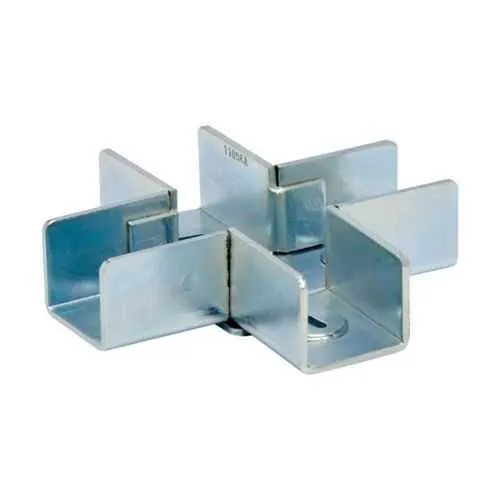

Eaton B769-12ZN Cross Strut Joiner - UL Listed
Part Number: B769-12ZN
Quick Summary
Eaton B769-12ZN is a cross-strut joiner designed to securely connect B-Line steel strut profiles in electrical, data, and control panel assemblies. Engineers often struggle with misalignment and time-consuming mounting in tight equipment rooms, which can drive up labor costs and delay projects. UL Listed certification supports safety and regulatory compliance, while the rugged 12‑gauge steel construction provides long-term rigidity. Used with the B-Line system, this joiner helps minimize rework and accelerates installation, delivering measurable value in panel builds, data centers, and manufacturing facilities.
Product Information
Extended Description
B769-12ZN Eaton: Eaton B-Line series joiner, 2.43" H x 4.5" L x 1.62" W, Steel, 12 gauge, Cross strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B769-12ZN
UPC
781011574710
Product Length/Depth
4.5 in
Product Height
2.43 in
Product Width
1.62 in
Product Weight
1.2 lb
Certifications
UL Listed
Special features
Includes 4 cam screws
Type
Cross strut joiner
Material
Steel
Material gauge
12 gauge
Feature: 12 gauge steel construction provides a high-strength join between struts. Business Impact: enhances load transfer and structural integrity, reducing sag and misalignment over time. Application: ideal for heavy-duty electrical enclosures and equipment racks. Feature: 2.43 in height, 4.5 in length, and 1.62 in width standardizes fit within the B-Line footprint. Business Impact: streamlines layout planning and ensures consistent mounting spacing across assemblies. Application: supports modular data centers and control panels with repeatable configurations. Feature: includes 4 cam screws for installation. Business Impact: lowers field labor, speeds assembly, and minimizes hardware search time. Application: quick-turn installs in retrofit projects and new builds. Feature: cross strut joiner design enhances rigidity and alignment. Business Impact: reduces rework and simplifies maintenance scheduling. Application: dependable in panel arrays and equipment cabinets. Feature: UL Listed certification confirms safety and compliance. Business Impact: supports code adherence and risk management, improving procurement confidence. Application: regulated environments and contractor-driven projects.
Get a Quick Quote for a Eaton B769-12ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B769-12ZN?
Enquire Now
FAQs
The B769-12ZN is designed to fit standard B-Line cross-strut configurations and ships with four cam screws for quick, tool-assisted mounting. Its 2.43" height, 4.5" length, and 1.62" width align with typical B-Line spacing, ensuring a secure, straight join between adjacent profiles while minimizing misalignment and rework in electrical enclosures.
By including four cam screws and relying on a precise cross-strut joiner geometry, this accessory reduces the number of fasteners and alignment adjustments required during panel assembly. The result is faster commissioning of racks and enclosures, lower field labor hours, and a more predictable installation schedule in data center and industrial automation environments.
Yes. The B769-12ZN is manufactured from 12 gauge steel and is purpose-built for B-Line cross-strut applications. Its robust material selection and form factor ensure reliable performance when joining 12 gauge members, supporting long-term rigidity and load transfer in industrial installations.
The B769-12ZN carries UL Listed certification, indicating compliance with recognized safety standards for electrical accessories. This helps satisfy code requirements in many regions, supports safer installations in enclosures and panels, and provides procurement confidence for regulated projects.
The joiner’s rugged 12 gauge steel construction minimizes deformation over time, reducing periodic maintenance adjustments. Security and alignment remain consistent across reconfigurations, lowering rework during upgrades. The included cam screws simplify future reseating, contributing to lower lifecycle costs in evolving automation installations.
