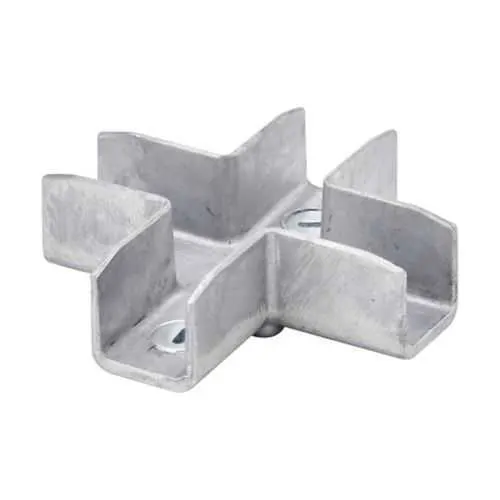

Eaton B769-22 Cross Strut Joiner - UL Listed, 12ga Steel
Part Number: B769-22
Quick Summary
Eaton B769-22 joiner provides a robust cross-strut connection for B-Line systems in electrical enclosures. Installations often suffer from slow assembly and misalignment when fittings don’t match the strut layout. UL Listed compliance, coupled with 12-gauge steel and a precise 1.62 in by 1.62 in footprint, helps ensure safe, rigid mounting. This joiner is designed for B-Line cross strut frameworks, delivering dependable performance across panel assemblies and industrial racks. The included cam screws simplify field installation, while the compact form minimizes added weight and space. For design engineers and procurement teams, it translates to repeatable assembly, consistent tolerances, and faster project turnover without compromising safety or compliance.
Product Information
Extended Description
B769-22 Eaton: Eaton B-Line series joiner, 1.62" H x 4.5" L x 1.62" W, Steel material, 12 gauge, Cross strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B769-22
UPC
781011574734
Product Length/Depth
4.5 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
0.87 lb
Certifications
UL Listed
Special features
Includes 4 cam screws
Type
Cross strut joiner
Material
Steel
Material gauge
12 gauge
Feature: Cross strut joiner design aligns with Eaton B-Line system components. Business Impact: Enables quick, predictable alignment across multiple panels, reducing rework and project delays. Application: Ideal for mounting cross members in electrical enclosures and service cabinets. Feature: 12 gauge steel construction. Business Impact: Delivers durable rigidity and long-term performance in demanding environments, lowering maintenance costs. Application: Suitable for industrial racks and control panels where vibration resistance matters. Feature: Precise 1.62 in x 1.62 in footprint with 4.5 in length. Business Impact: Improves routing and spacing accuracy, supporting clean cable management and modular layouts. Application: Works with standard B-Line strut patterns in compact footprints. Feature: Includes 4 cam screws. Business Impact: Reduces hardware search and accelerates on-site assembly, accelerating commissioning timelines. Application: Fast mounting for single or multiple joiners in a single install. Feature: UL Listed certification. Business Impact: Provides safety assurance and regulatory compliance for electrical assemblies in industrial environments. Application: Preferred for panels, enclosures, and service areas requiring approved electrical fittings. Feature: Lightweight at 0.87 lb. Business Impact: Minimizes added structural load while preserving strength, supporting scalable rack design. Application: Suitable for multi-level installations where weight constraints matter.
Get a Quick Quote for a Eaton B769-22
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B769-22?
Enquire Now
FAQs
Yes. The B769-22 is a cross strut joiner designed specifically for Eaton B-Line series components, ensuring precise alignment and secure connections in standard B-Line mounting frameworks used in electrical enclosures and control cabinets.
Key specs include 4.5 in length, 1.62 in height, and 1.62 in width, 12 gauge steel construction, weight of 0.87 lb, and a UL Listed certification. It comes with four cam screws to simplify installation.
Absolutely. The joiner is designed for cross-strut connections within B-Line systems, providing a rigid, code-compliant mounting solution for control panels, electrical enclosures, and industrial racks.
It is UL Listed, signaling compliance with safety standards for electrical components. This certification supports regulatory acceptance, reliability in electrical assemblies, and peace of mind for regulated environments.
The kit includes 4 cam screws, reducing hardware searches and speeding setup. Its compact 4.5 in length and 12 gauge steel construction provide quick, sturdy mounting with predictable tolerances for scalable rack designs.
