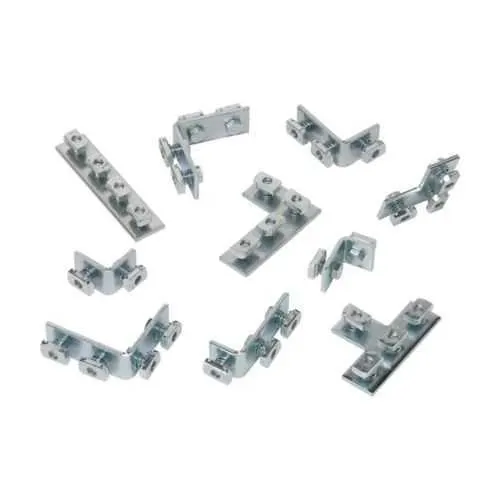

Eaton B769-26ZN Joiner - UL Listed Cross Strut
Part Number: B769-26ZN
Quick Summary
The Eaton B769-26ZN joiner is a cross strut accessory that securely links B-Line series channels in electrical enclosures. It addresses misalignment and shim-related delays by delivering a solid, repeatable connection that keeps installations on schedule. UL Listed certification reinforces safety and reliability in harsh industrial environments, supporting regulatory compliance across facilities. Designed for 12 gauge steel systems and a compact 1.62 in by 4.5 in footprint, it scales from small panels to large racks. Includes four cam screws for quick field assembly, reducing labor time while preserving rigidity and service life. Its compact profile also minimizes space intrusion in crowded panels and simplifies future expansions.
Product Information
Extended Description
B769-26ZN Eaton: Eaton B-Line series joiner, 1.62" H x 4.5" L x 1.62" W, Steel, 12 gauge, Cross strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B769-26ZN
UPC
781011574741
Product Length/Depth
4.5 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
0.93 lb
Certifications
UL Listed
Special features
Includes 4 cam screws
Type
Cross strut joiner
Material
Steel
Material gauge
12 gauge
Manufactured from 12 gauge steel, the B769-26ZN delivers a stiff cross strut joiner with precise dimensions that fit Eaton B-Line channels. This rugged construction resists bending and deformation under load, providing repeatable joint integrity across long spans. This stability directly reduces misalignment during assembly, minimizes rework, and extends the service life of the racking system in busy electrical rooms and data centers. UL Listed certification accompanies this joiner, signaling conformance to established electrical safety standards and reliability expectations in industrial facilities. By meeting recognized protection criteria, it lowers commissioning risk, supports regulatory audits, and helps maintenance teams rely on predictable performance over time. In combination with 12 gauge steel, the certification stack reinforces confidence when choosing components for critical power and data applications. Ease of installation is enhanced by the included four cam screws, which speed field assembly and reduce the need for separate fasteners. The joiner’s geometry aligns consistently with existing cross strut fittings, enabling rapid, repeatable mounting and minimal misalignment after tightening. This design choice translates to shorter project timelines and lower labor costs while maintaining a robust, vibration-resistant connection. Compatibility with Eaton B-Line system elements is a key advantage, enabling installers to reuse standard hardware across projects and scale from small to large channel assemblies. The 1.62 in by 1.62 in cross-section and 4.5 in length balance compact footprint with sufficient rigidity, making it suitable for tight enclosures and crowded racks. The 0.93 lb weight also simplifies handling and logistics in field operations. From a facilities perspective, adopting a consistent, UL Listed cross strut joiner supports quality and uptime goals. By reducing rework, shielding joints from loosening, and simplifying inventory with a single compatible component, the B769-26ZN helps lower total cost of ownership for retrofit projects and new builds alike in manufacturing plants and data centers.
Get a Quick Quote for a Eaton B769-26ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B769-26ZN?
Enquire Now
FAQs
The B769-26ZN cross strut joiner is designed for use with Eaton B-Line series channel systems. It accepts standard 12 gauge steel strut and connects cross strut sections securely, aligning with other B-Line components. Quick field assembly is supported by the included cam screws, enabling repeatable joints across panels and racks without specialized tooling or custom adapters.
Key specifications include a product height of 1.62 inches, width of 1.62 inches, and length of 4.5 inches, constructed from 12 gauge steel and weighing 0.93 pounds. The Catalog Number is B769-26ZN, with a UL Listed certification and four cam screws included. The joiner is designed specifically for cross strut connections in the B-Line system.
Yes, the B769-26ZN is UL Listed, indicating it has been evaluated for safety and performance in accordance with recognized industry standards. This certification supports regulatory compliance in industrial facilities, reduces risk during commissioning, and provides assurance of reliable operation under normal and anticipated service conditions within electrical enclosures and data centers.
The B769-26ZN ships with four cam screws, enabling rapid, tool-light mounting and precise alignment with existing cross strut fittings. This reduces field labor time, minimizes the need for additional fasteners, and lowers installation risk by providing a consistent, repeatable mounting pattern. In turn, project timelines shorten and overall labor costs decrease, especially on larger rack builds.
Using the B769-26ZN supports predictable joint rigidity and reduced rework across multi-rack installations, which translates to lower maintenance visits and downtime. Its UL Listed safety profile and 12 gauge steel construction deliver long service life, reducing spare parts and replacement costs. For retrofit programs and new builds in manufacturing or data centers, the component contributes to lower total cost of ownership over the system lifetime.
