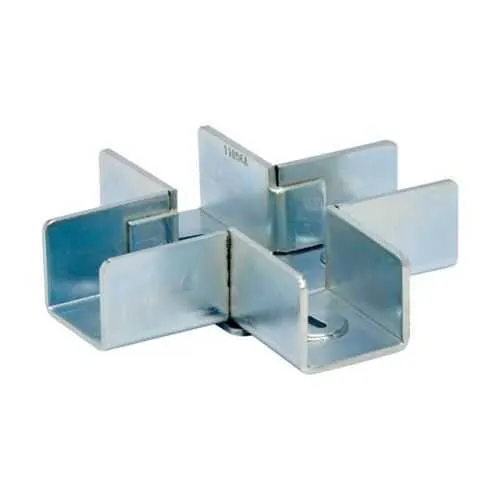

Eaton B769-32ZN B-Line series joiner - UL Listed
Part Number: B769-32ZN
Quick Summary
The Eaton B769-32ZN B-Line series joiner provides a sturdy cross strut connection for electrical distribution and enclosure systems. Engineers often struggle with misalignment and slow field install times; this joiner addresses that by delivering precise fit and quick, cam-screw assembly. Key certifications include UL Listed, underscoring safety and reliability in commercial and industrial environments. In practice, this cross strut joiner supports rapid installations, improved alignment, and scalable mounting for B-Line system accessories. Designed from steel 12 gauge, it delivers durability without adding excessive weight to the assembly. Includes four cam screws for immediate installation and compatibility with standard B-Line channel configurations. This makes procurement easier and reduces total installed cost by minimizing field rework.
Product Information
Extended Description
B769-32ZN Eaton: Eaton B-Line series joiner, 1.37" H x 4.5" L x 1.62" W, Steel, 12 gauge, Cross strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B769-32ZN
UPC
781011574758
Product Length/Depth
4.5 in
Product Height
1.37 in
Product Width
1.62 in
Product Weight
0.78 lb
Certifications
UL Listed
Special features
Includes 4 cam screws
Type
Cross strut joiner
Material
Steel
Material gauge
12 gauge
Feature: Cross strut joiner design tailored for Eaton B-Line channels. Business impact: enables faster, error-free alignment, reducing field rework and installation time. Application: supports panel enclosures, cable trays, and equipment mounting in factory floors. Feature: Steel construction with 12 gauge material. Business impact: delivers durable support for heavy components while keeping weight manageable for handling. Application: suitable for high-load assemblies in industrial environments and outdoor enclosures. Feature: Includes four cam screws for quick assembly. Business impact: accelerates installation, lowers labor costs, and ensures a secure fit from the first torque. Application: fits standard B-Line channel profiles and minimizes screw loss during installation. Feature: UL Listed certification. Business impact: helps meet safety and compliance requirements for electrical installations. Application: suitable for commercial and industrial facilities requiring recognized safety ratings. Feature: Compact, precise dimensions—4.5 in length, 1.37 in height, 1.62 in width—ensuring predictable fit. Business impact: supports repeatable mounting across multiple projects, reducing site confusion and change orders. Application: ideal for retrofits and new builds within standard B-Line configurations and cross-strap assemblies.
Get a Quick Quote for a Eaton B769-32ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B769-32ZN?
Enquire Now
FAQs
The B769-32ZN is a cross strut joiner designed specifically for Eaton B-Line channels, enabling precise alignment for mounting panels, enclosures, and accessories. It is ideal for retrofit projects and new builds in industrial facilities where fast, repeatable installations are essential. With four cam screws included, it reduces field setup time and helps maintain consistency across multiple runs.
The joiner measures 4.5 inches in length, 1.62 inches in width, and 1.37 inches in height, weighing 0.78 pounds. These compact dimensions ensure compatibility with standard B-Line channel profiles while providing robust support. The 12-gauge steel construction enhances load capacity without adding excessive bulk, making it suitable for crowded electrical rooms.
Yes. The B769-32ZN is UL Listed, which supports compliance with safety standards for electrical equipment in commercial and industrial installations. This certification helps satisfy code requirements for mounting fittings and accessories within B-Line strut systems, reducing risk during audits and inspections.
Plan for standard B-Line channel configurations and ensure channels are clean and aligned before tightening cam screws. The four supplied cam screws enable a secure, vibration-resistant connection, which is important in equipment mounting and enclosure assemblies subject to machinery operation and environmental vibrations.
By delivering rapid, repeatable installations with precise alignment, the joiner reduces labor time and field rework, lowering total installed cost. Its durable steel construction supports long life in demanding environments, while UL Listed certification helps maintain compliance, contributing to lower maintenance risk and improved uptime in ongoing facility operations.
