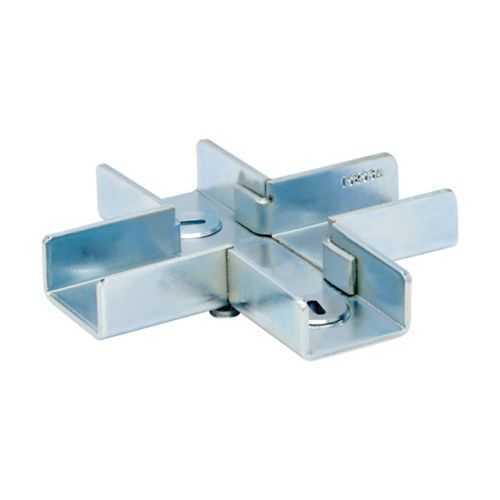

Eaton B769-42ZN B-Line cross strut joiner - UL Listed
Part Number: B769-42ZN
Quick Summary
The Eaton B769-42ZN B-Line cross strut joiner provides secure connections in electrical distribution setups. It simplifies field assembly, reduces misalignment, and speeds panel upgrades during install or rework. UL Listed certification validates safety and electrical compliance for industrial installations, while its 12-gauge steel construction and compact 1 in by 4.5 in footprint ensure rigidity under load. The joiner’s compatibility with B-Line cross-strut systems supports scalable installations, delivering consistent performance across panel builds and service upgrades. By aligning with Eaton catalogs and datasheets, procurement remains straightforward and predictable, reducing rework and downtime in capital projects.
Product Information
Extended Description
B769-42ZN Eaton: Eaton B-Line series joiner, 1" H x 4.5" L x 1.62" W, Steel, 12 gauge, Cross strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B769-42ZN
UPC
781011574765
Product Length/Depth
4.5 in
Product Height
1 in
Product Width
1.62 in
Product Weight
0.65 lb
Certifications
UL Listed
Special features
Includes 4 cam screws
Type
Cross strut joiner
Material
Steel
Material gauge
12 gauge
Feature: 12 gauge steel construction and compact footprint (1 in height x 4.5 in length x 1.62 in width) delivers strong load-bearing capability without occupying excessive space. Business Impact: Enhanced rigidity reduces vibration and movement in mounted components, improving long-term reliability and reducing rework. Application: Ideal for tight electrical enclosures and panel assemblies where space is at a premium and secure mounting is critical. Feature: Includes 4 cam screws for mounting — no extra hardware required. Business Impact: Accelerates field installation and simplifies procurement, lowering labor costs and project scheduling risk. Application: Quick-connect between cross-strut members within B-Line systems during commissioning. Feature: UL Listed certification. Business Impact: Verifies safety and electrical compliance for industrial installations, helping meet regulatory requirements and customer QA benchmarks. Application: Use in UL-rated control panels and distribution assemblies to maintain standardization. Feature: Compatible with B-Line cross-strut systems and standard 12 gauge steel components. Business Impact: Streamlines design replication and system scalability, reducing engineering time and design errors. Application: Reusable in multiple projects across electrical enclosures and support structures. Feature: Lightweight at approximately 0.65 lb, with a robust steel build. Business Impact: Eases handling during installation, supports faster commissioning, and minimizes additional structural influence on the overall assembly. Application: Suitable for modular panel lines and retrofit work where weight considerations matter. Feature: Available installation documentation (datasheet and catalogs). Business Impact: Improves procurement accuracy and engineering references, reducing misinterpretation and approvals time. Application: Engineering design reviews and component sourcing for large-scale automation projects.
Get a Quick Quote for a Eaton B769-42ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B769-42ZN?
Enquire Now
FAQs
The B769-42ZN is designed for Eaton B-Line cross-strut systems and fits standard cross-strut channels used in electrical enclosures. It ships with four cam screws for immediate mounting, supports 12 gauge steel, and aligns with UL Listed safety requirements. This makes it ideal for panel assemblies and service upgrades in industrial environments.
Key specs include a product length of 4.5 in, height of 1 in, width of 1.62 in, and a weight of approximately 0.65 lb. Made from 12 gauge steel and UL Listed, it functions as a cross strut joiner within B-Line systems and includes four cam screws for fast installation.
Yes, the B769-42ZN is UL Listed, providing recognized safety certification for electrical installations. This designation helps ensure compliance with industrial safety standards and supports regulatory acceptance in control panels, distribution assemblies, and other framed mounting applications.
The joiner ships with four cam screws, reducing field hardware searches and enabling faster, tool-assisted mounting. Its compact 1 in by 4.5 in footprint and 12 gauge steel construction offer strong rigidity in tight spaces, minimizing misalignment and rework while keeping installation time within project schedules.
You can access the Eaton electrical accessories catalog section and the Eaton Specification Sheet for B769-42ZN from Eaton’s site. These documents provide detailed dimensions, materials, mounting guidelines, and compatibility notes to support design reviews and procurement decisions.
