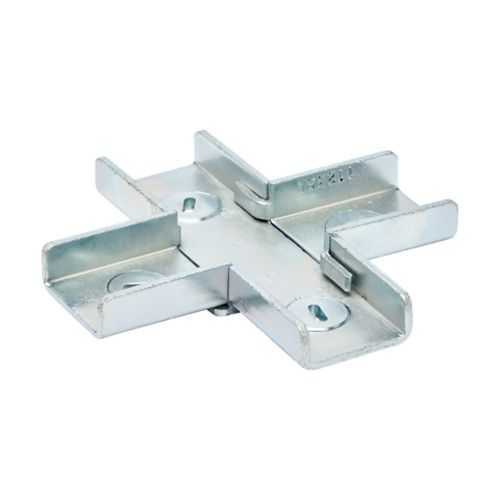

Eaton B769-52ZN Cross Strut Joiner - UL Listed
Part Number: B769-52ZN
Quick Summary
Eaton B769-52ZN cross strut joiner securely connects B-Line series channels to create a stable mounting path for electrical equipment. In the field, misalignment and time-consuming adjustments drive up labor costs, so a precise, easy-to-install connector helps operators hit project timelines. UL Listed certification supports electrical safety compliance in industrial environments, while the 12 gauge steel provides rugged durability. This joiner is compact and cam-screw compatible, delivering fast installations and scalable performance from small panels to large racks.
Product Information
Extended Description
B769-52ZN Eaton: Eaton B-Line series joiner, 0.81" H x 4.5" L x 1.62" W, Steel, 12 gauge, Cross strut joiner
Product Name
Eaton B-Line series joiner
Catalog Number
B769-52ZN
UPC
781011574840
Product Length/Depth
4.5 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
0.58 lb
Certifications
UL Listed
Special features
Includes 4 cam screws
Type
Cross strut joiner
Material
Steel
Material gauge
12 gauge
Feature: 12 gauge steel construction. Benefit: Delivers rugged durability and resistance to deformation under vibration, extending service life and reducing maintenance. Application: Ideal for rugged industrial panel mounting and electrical rack installations. Feature: Dimensions of 0.81 in H x 4.5 in L x 1.62 in W. Benefit: Compact footprint that fits congested enclosures and maintains proper channel alignment. Application: Cross-strut joins in B-Line systems where space is limited. Feature: Includes 4 cam screws. Benefit: Speeds installation and ensures repeatable alignment without extra hardware sourcing. Application: Quick, reliable mounting in field or factory settings. Feature: Material/finish steel, 12 gauge. Benefit: High structural strength with proven industrial performance. Application: Suitable for heavy-duty commercial and process-industrial environments. Feature: Certifications UL Listed. Benefit: Compliance with electrical-safety standards reduces project risk. Application: Panels, enclosures, and power distribution installations that demand verified safety. Feature: Cross strut joiner type. Benefit: Standardized connector simplifies design and procurement with predictable compatibility. Application: B-Line strut systems across varied enclosure sizes and configurations.
Get a Quick Quote for a Eaton B769-52ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B769-52ZN?
Enquire Now
FAQs
Yes. The B769-52ZN is designed for Eaton B-Line series cross-strut installations, matching the 12 gauge steel construction and 4 cam screws to provide a secure, repeatable fit with commonly used B-Line channel profiles.
Confirm dimensions (0.81 in H, 4.5 in L, 1.62 in W), weight (0.58 lb), material (steel, 12 gauge), and certification (UL Listed). Also ensure compatibility with your panel width requirements and mounting pitch for accurate alignment.
Yes. The 12 gauge steel construction provides rugged durability and the cam screws enable secure, repeatable mounting, helping to maintain alignment under vibration and thermal cycling common in industrial environments.
The B769-52ZN is UL Listed, which verifies electrical safety compliance for assembly components. This is important for reducing risk during commissioning and for meeting regulatory requirements in most industrial facilities.
The included cam screws and precise fit reduce field labor and rework, accelerating installation timelines and limiting downtime. Combined with durable steel construction, this yields lower maintenance costs and longer service intervals across updated B-Line racks.
